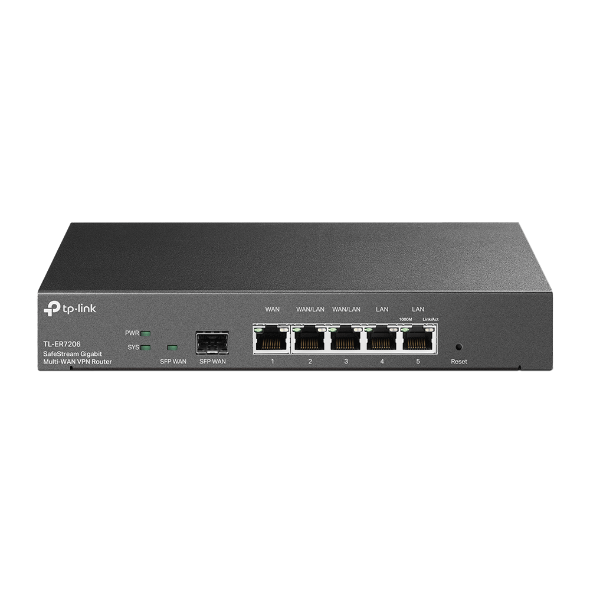

TP-Link TL-ER7206 Omada SafeStream Gigabit Multi-WAN VPN Router, 4 WAN Ports: 1 Gigabit SFP WAN port, 1 Gigabit RJ45 WAN Port, 2 Gigabit WAN/LAN

TP-Link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
• Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
• Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
• Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab
• TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Interface • 1 Fixed Gigabit SFP WAN Port
• 1 Fixed Gigabit RJ45 WAN Port
• 2 Fixed Gigabit RJ45 LAN Ports
• 2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply 100–240 V~50/60 Hz
Flash SPI 4MB + NAND 128MB
DRAM 512MB
LED PWR, SYS, SFP WAN, Speed, Link/Act
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Why Choose This?

The TP-Link TL-ER7206 Omada SafeStream Gigabit Multi-WAN VPN Router delivers robust connectivity for businesses with up to 5 configurable Gigabit WAN ports, including SFP and USB LTE support, ensuring high availability and optimized bandwidth through intelligent load balancing. Integrated into the Omada SDN platform, it offers centralized cloud management for effortless deployment and monitoring, while advanced VPN capabilities like IPSec, OpenVPN, and WireGuard secure remote access for up to 100 tunnels. With enterprise-grade security features such as DPI, IPS/IDS, and DoS protection, it safeguards networks without compromising gigabit performance.

Key Features

• Up to 5 Gigabit WAN ports (1 SFP WAN/LAN, 1 RJ45 WAN, 4 WAN/LAN) – optimizes multi-line broadband utilization with load balancing and failover for reliable connectivity.
• High-performance VPN support (100 IPSec, 50 SSL/OpenVPN/L2TP/PPTP tunnels) – enables secure site-to-site and remote access with hardware acceleration.
• Omada SDN integration – provides zero-touch provisioning, cloud-based centralized management, and intelligent monitoring via app or web.
• Advanced security suite (DPI, IPS/IDS, DoS defense, IP/MAC/URL filtering) – protects against threats with over 4,000 signatures and deep packet inspection.
• USB 3.0 LTE dongle support – adds flexible 4G/5G backup for uninterrupted internet access.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: How many WAN ports does the ER7206 support? Up to 5 WAN ports: 1 Gigabit SFP WAN/LAN, 1 fixed Gigabit RJ45 WAN, and 4 configurable Gigabit RJ45 WAN/LAN ports, plus USB LTE for backup.
• Q: What VPN protocols are supported? IPSec (100 tunnels), SSL (50), OpenVPN (55), L2TP/PPTP (50 each), WireGuard, GRE; supports LAN-to-LAN and client-to-site with hardware acceleration.
• Q: Does it support load balancing and failover? Yes, intelligent load balancing across WANs with online detection (Ping/DNS), link backup (failover/timing), and application-optimized routing.
• Q: Is Omada SDN controller required? No, fully functional in standalone mode; controller enables centralized management, ZTP, and advanced features like SD-WAN.
• Q: What security features prevent attacks? DPI (2421 apps), IPS/IDS (4000+ signatures), DoS/DDoS defense (TCP/UDP/ICMP flood), ARP inspection, IP/MAC/URL filtering, and stateful ACLs.
