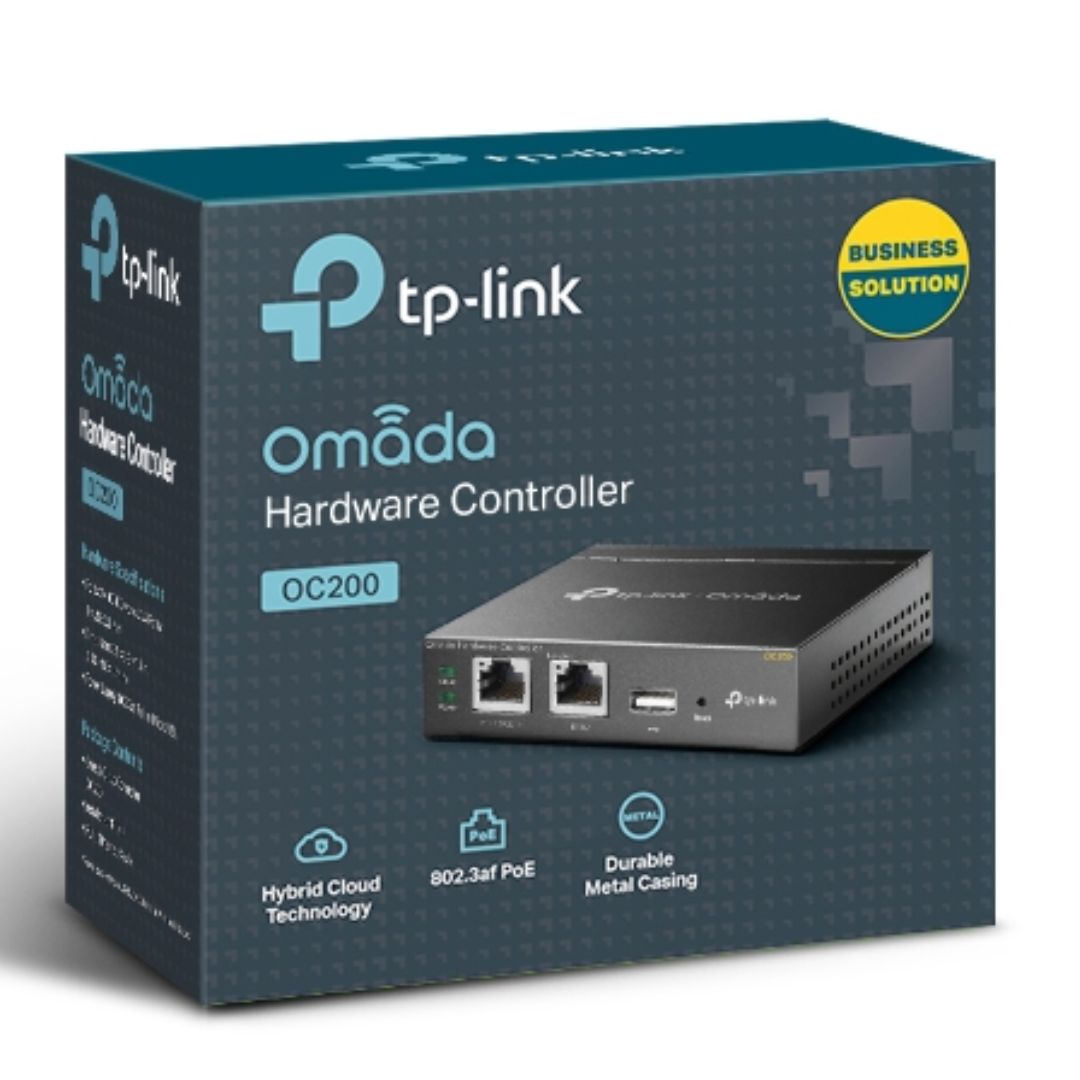

TP-Link OC200 Omada Cloud Controller, Centralised Management – Up to 100 Omada APs, JetStream Switches And SafeStream Routers

TP-Link OC200 Omada Cloud Controller, Centralised Management – Up to 100 Omada APs, JetStream Switches And SafeStream Routers

Dedicated Network for Centralised Management
The OC200 Omada Cloud Controller provides centralised management of the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and effortlessly scale your network to boost your business.

Professional centralised management for Wi-Fi network
Cloud access to manage from anywhere, anytime
PoE (802.3af/802.3at) supported for easy installation
Industry-leading hardware design with a powerful chipset, durable metal casing, and USB port for auto backup
Omada App for a convenient management
Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)

HARDWARE FEATURES
Interface 10/100Mbps Ethernet Port*2
USB 2.0 Port*1
Micro USB Port*1
Power Supply 802.3af/at PoE or Micro USB（DC 5V/Minimum 1A）
Dimensions 3.9×3.9×1.0 in (100×98×25 mm)

FEATURES
Wireless Fuction L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fariness
Beamforming
Rate Limit
Wireless Schedule
QoS
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
AP Management Automatic Discovery
Unified Configuration
Reboot Schedule
Batch Firmware Upgrade
LED ON/OFF
Authentication Captive Porta

MANAGEMENT
Omada App Yes
Centralized Management Up to 100 Omada access points, JetStream switches, and SafeStream routers
Cloud Access Yes
L3 Management Yes
Multi-site Management Yes

Why Choose This?

The TP-Link OC200 Omada Hardware Controller delivers centralized management for up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers, eliminating the need for a dedicated PC or server. It combines on-premises stability with free cloud access via the Omada app or web UI, enabling remote monitoring and control from anywhere. This compact, PoE-powered device simplifies network deployment, maintenance, and scalability for small to medium businesses.

Key Features

• Centralized Management – Controls up to 100 APs, 10 routers, 20 switches for unified network oversight without extra hardware.
• Free Cloud Access – Manage and monitor remotely via Omada app or Web UI anytime, anywhere with no subscription fees.
• On-Premises Deployment – Ensures maximum security and stability by running locally on dedicated hardware.
• Flexible Power Options – Supports 802.3af/at PoE or Micro USB (5V/1A) for easy installation in various setups.
• Intelligent Monitoring – Real-time dashboard, network topology, and WiFi heatmap for quick troubleshooting and insights.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: What is the maximum number of devices the OC200 can manage? Up to 100 Omada access points, 10 Omada routers, a maximum of 20 Omada switches, and 2 certain DeltaStream GPON OLTs, for a total of around 130 devices.
• Q: Does the OC200 require a license or subscription for cloud access? No, cloud access is free with no license fees via the Omada app or Web UI.
• Q: Can the OC200 be powered via PoE? Yes, it supports 802.3af/at PoE or Micro USB (DC 5V/1A minimum).
• Q: Is a PC or server needed to run the OC200? No, it’s a standalone hardware controller with built-in Omada SDN software.
• Q: What management features does it support? Includes multi-site management, batch configuration, auto-backup, real-time topology, captive portal, and more.
