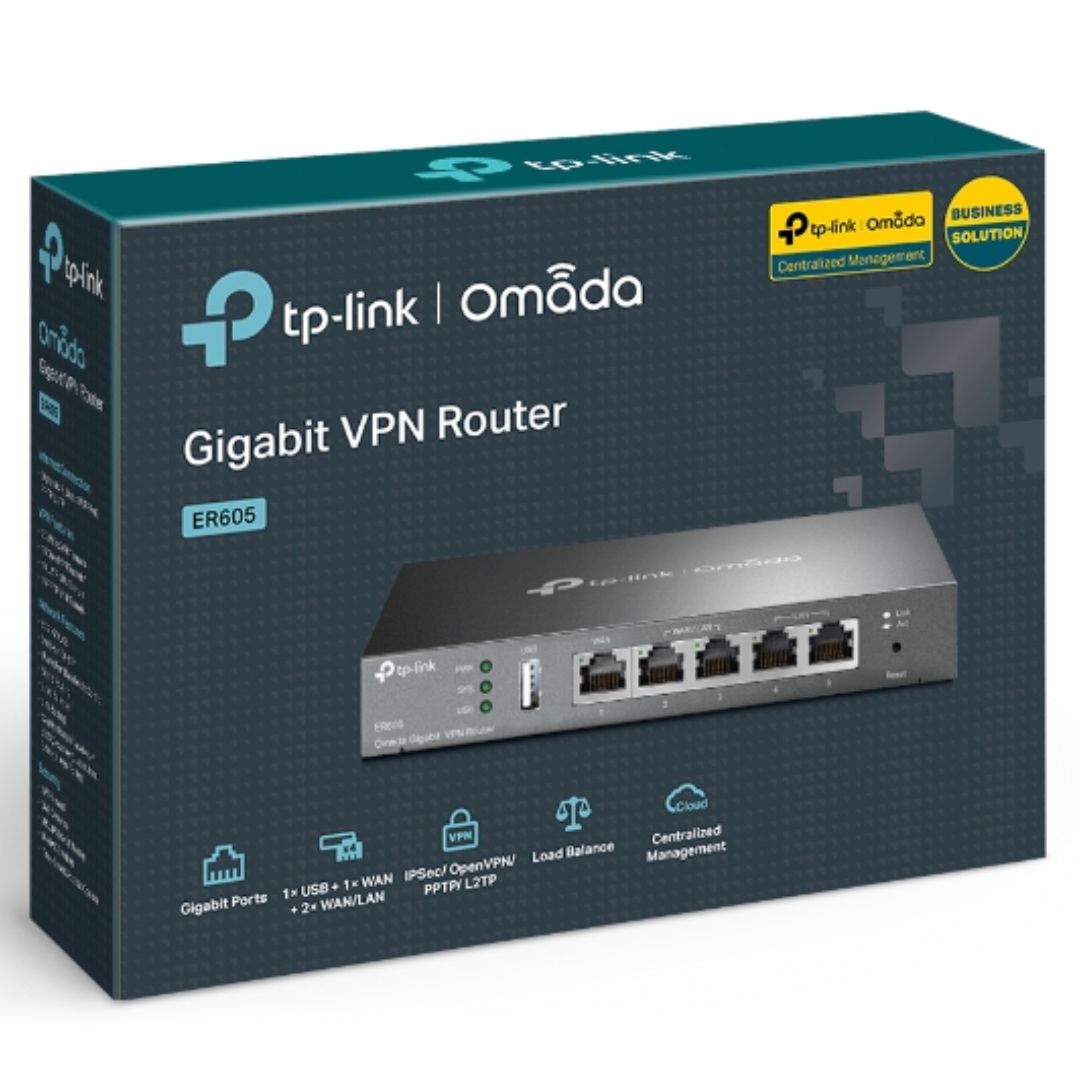

TP-Link TL-ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router PPPoE 1 WAN 3 Changeable WAN/LAN Ports 10BASE-T, Centralised Cloud, Omada

TP-Link TL-ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router PPPoE 1 WAN 3 Changeable WAN/LAN Ports 10BASE-T, Centralised Cloud, OMADA

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Five Gigabit Ports: High-speed wired connectivity.
• Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage.
• Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
• Abundant Security Features: Advanced firewall policies, DoS defence,IP/MAC/URL filtering, and more security functions protect your network and data.

HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface • 1 Fixed Gigabit WAN Port
• 1 Fixed Gigabit LAN Port
• 3 Changeable Gigabit WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply External 9V/0.85A DC Adapter
Flash SPI 16MB
DRAM 128 MB
LED PWR, SYS, WAN, LAN
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

PERFORMANCE
Concurrent Session 25,000
IPsec VPN Throughput 41.5 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
DHCP • DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces*

*Multi-IP Interfaces and Multi-Net DHCP are supported only in Controller Mode
MAC Clone Modify WAN/LAN MAC Address*

Why Choose This?

The TP-Link ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router delivers reliable, high-performance networking for small businesses and remote offices, featuring up to 4 WAN ports for load balancing and failover to maximize bandwidth utilization. Integrated with Omada SDN for centralized cloud management, it offers effortless deployment, monitoring, and Zero-Touch Provisioning via app or controller. Robust VPN support for IPSec, OpenVPN, L2TP, and PPTP, combined with advanced security like DoS defense and DPI, ensures secure remote access and data protection.

Key Features

• Up to 4 Gigabit WAN Ports (1 fixed WAN + 3 changeable WAN/LAN) – optimizes multi-line broadband with intelligent load balancing and failover for uninterrupted connectivity.
• USB WAN Port for 4G/3G Modems – provides mobile broadband backup, enhancing reliability in areas with unstable wired connections.
• Omada SDN Integration – enables centralized cloud management, Zero-Touch Provisioning, and intelligent monitoring for easy scalability.
• Advanced VPN Support (20 IPSec, 16 OpenVPN/L2TP/PPTP) – secures site-to-site and remote access with high-throughput encryption.
• Comprehensive Security Features – includes SPI firewall, DoS defense, IP/MAC/URL filtering, and DPI for 2421+ app types to protect against threats.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Does the ER605 support USB 4G/3G modems for WAN backup? Yes, it has a USB 2.0 port compatible with select LTE dongles; check the official compatibility list at tp-link.com/er605/compatibility/.
• Q: Can it operate in standalone mode without Omada controller? Yes, configure via web UI at 192.168.0.1; controller mode required for advanced SDN features like ZTP.
• Q: What WAN connection types are supported? Static IP, Dynamic IP (DHCP), PPPoE, PPTP, L2TP; supports multi-WAN load balancing and failover.
• Q: How many VPN tunnels does it support? Up to 20 IPSec LAN-to-LAN, 16 OpenVPN, 16 L2TP, 16 PPTP simultaneously (one type at a time in some modes).
• Q: Is firmware upgradable and what are common issues? Yes, latest firmware via tp-link.com download center; common fixes include WAN drops via static IP config or reboot, slow boot time (use UPS).
