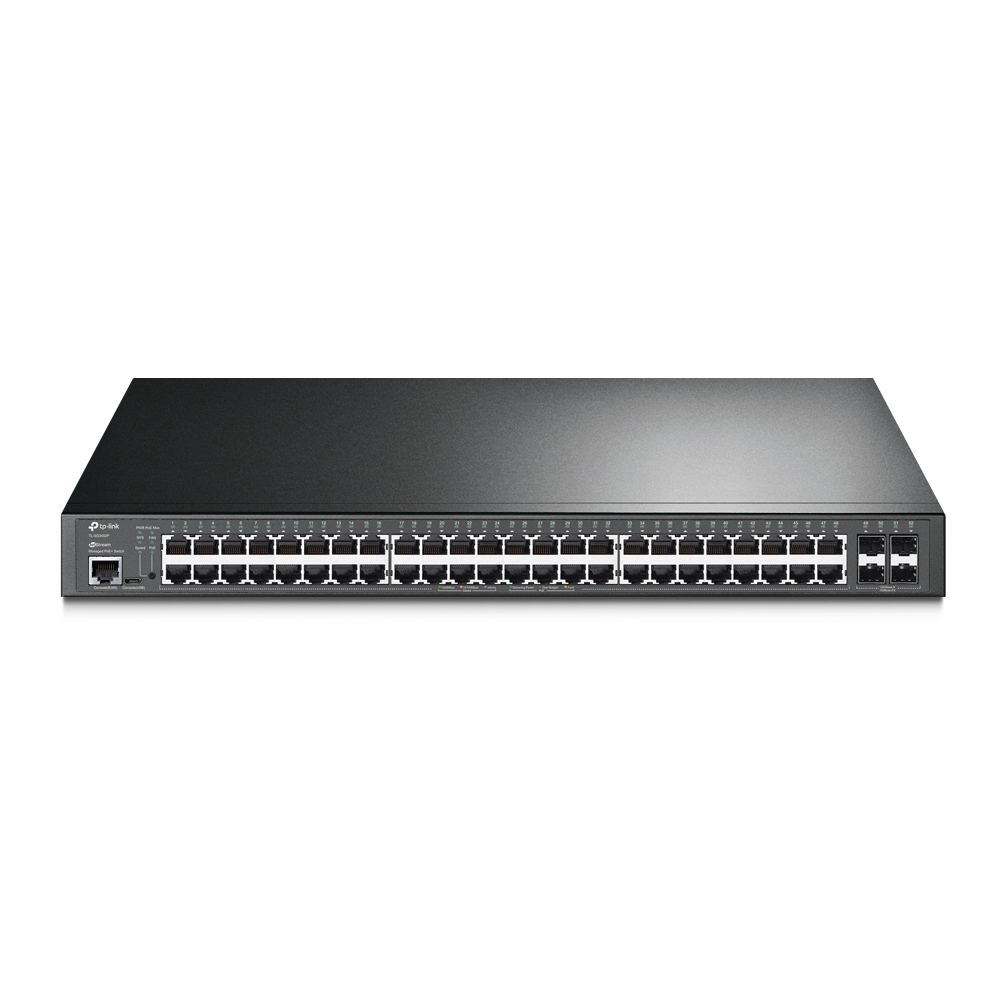

TP-Link SG3452P Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+, Integration with Omada SDN Controller,Static Routing, 802.1Q VLAN, QinQ

TP-Link TL-SG3452P JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+, 384W PoE Budget, Integrated into Omada SDN

384 W PoE Budget: 48× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

HARDWARE FEATURES
Interface • 48× 10/100/1000 Mbps RJ45 Ports
• 4× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity 3
Power Supply 100-240 V AC~50/60 Hz
PoE+ Ports(RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port
• Power Budget: 384 W
Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 52.53 W (110 V/60 Hz) (no PD connected)
485.4 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation 179.13 BTU/hr (110 V/60 Hz) (no PD connected)
1656.19 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
PERFORMANCE
Switching Capacity 104 Gbps
Packet Forwarding Rate 77.4 Mpps
MAC Address Table 16 K
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– SP+WRR
• Bandwidth Control
– Port/Flow based Rating Limiting
• Smoother Performance
• Action

Why Choose This?

The TP-Link SG3452P Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ delivers high-performance networking for businesses needing reliable power and data delivery to devices like APs, cameras, and VoIP phones. With a 384 W PoE budget, Omada SDN integration for centralized cloud management, static routing, and advanced L2+ features like 802.1Q VLAN and QinQ, it optimizes traffic efficiency and scalability. Ideal for enterprises, campuses, and ISPs, it ensures secure, seamless connectivity with robust QoS and security.

Key Features

• 48× Gigabit PoE+ Ports (384 W Budget) – Powers up to 48 devices like Wi-Fi APs and IP cameras without extra injectors, simplifying deployment.
• Omada SDN Integration – Enables zero-touch provisioning, centralized cloud management via app or controller for effortless monitoring and scaling.
• Static Routing (48 IPv4/IPv6 Routes) – Efficiently routes internal traffic, reducing latency and optimizing network resource use.
• 802.1Q VLAN & QinQ Support – Segments networks for enhanced security and performance, with flexible VLAN stacking for service providers.
• Advanced L2+ Features & QoS – Includes LACP, STP, IGMP Snooping, and 8-queue QoS to prioritize voice/video traffic and prevent bottlenecks.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: What is the total PoE power budget? 384 W across 48 Gigabit PoE+ ports, supporting up to 30 W per port (802.3at/af compliant).
• Q: Does it support Omada SDN management? Yes, fully integrated with Omada SDN for zero-touch provisioning, cloud access, batch configuration, and intelligent monitoring via controller or app.
• Q: What routing capabilities does it have? L2+ managed with static routing supporting 48 IPv4/IPv6 routes, plus DHCP server/relay for efficient internal traffic handling.
• Q: Can it handle VLANs and QinQ? Yes, supports up to 4K 802.1Q VLAN groups, GVRP, MAC/Protocol VLAN, and QinQ (port-based/selective) for advanced segmentation.
• Q: What if I forget the login credentials? Use the password recovery feature or reset to factory defaults (default username/password: admin) via hardware reset button.
