TP-Link OC300 Omada Hardware Controller, Centralised Management – Up to 500 Omada APs, JetStream Switches And SafeStream Routers

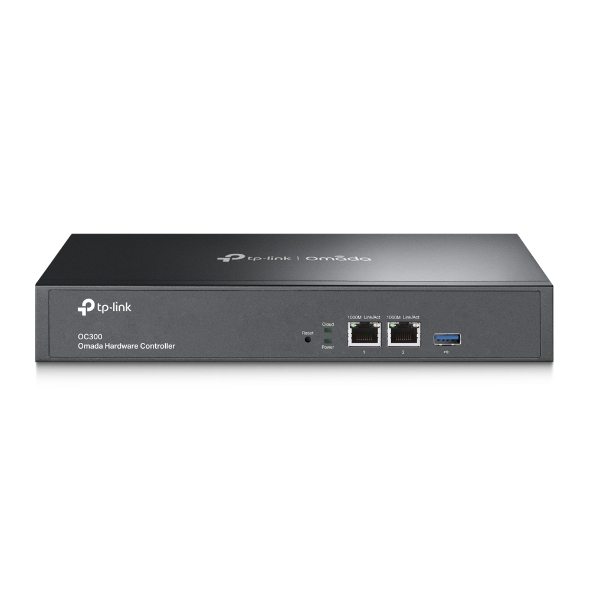

TP-Link OC300 Omada Hardware Controller
• Centralized management for up to 500 Omada access points, JetStream switches, and SafeStream routers.
• Cloud access to manage from anywhere, anytime.
• Locally monitor and manage devices with the ultimate security and stability.
• The Omada app for convenient management.
• Industry-leading hardware design with a powerful chipset, durable metal casing, and USB 3.0 port for auto backup.
• Batch management, multi-site management, and remote firmware updates benefit network maintenance.
• The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution.
• Network topology helps IT admins quickly see and troubleshoot connections at a glance.

HARDWARE FEATURES
Interface • 2× 10/100/1000 Mbps Ethernet Ports
• 1× USB 3.0 Port
Power Supply 100–240 V~50/60 Hz, 0.6 A
Dimensions 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
MANAGEMENT
Omada App Yes
Centralized Management • Up to 500 Omada access points, JetStream switches, and SafeStream routers*
• Up to 15,000 clients

*Only some JetStream switches and Safestream gateways can be centrally managed by OC300, please refer to www.tp-link.com/business-networking/all-omada/ to find all the models supported by OC300
Cloud Access Yes
L3 Management Yes
Multi-site Management Yes
Management Features • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

OTHERS
Certification CE, FCC, RoHS
Package Contents • Omada Hardware Controller OC300
• Quick Installation Guide
• Ethernet Cable
• Power Cord
• Rackmount Kit
System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment • Operating Temperature: 0–50 ℃ (32–122 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90%

Why Choose This?

The TP-Link OC300 Omada Hardware Controller delivers centralized management for up to 500 Omada access points, 100 switches, and 100 routers, eliminating the need for a constantly running PC or server. Ideal for businesses in hospitality, education, retail, and offices, it supports up to 15,000 clients with hybrid cloud and on-premises options for ultimate flexibility and security. Enjoy free cloud access via the Omada app, intelligent monitoring, and easy scalability without license fees.

Key Features

• Centralized Management – Controls up to 500 Omada APs, 100 switches, and 100 routers from a single interface for streamlined operations.
• Hybrid Cloud Access – Free remote management via Omada app or web UI anywhere, with optional on-premises deployment for maximum security.
• USB 3.0 Auto Backup – Quickly backs up configurations to external storage, ensuring data safety and rapid recovery.
• Intelligent Network Monitoring – Real-time dashboard shows topology, traffic, clients, and Wi-Fi status for proactive troubleshooting.
• Rackmount/Desktop Design – Fanless metal casing with Gigabit ports supports flexible installation and silent 24/7 operation.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: What is the maximum number of devices the OC300 can manage? Up to 500 Omada access points, 100 routers/gateways, 100 switches, and up to 15,000 clients, based on lab testing; actual capacity varies by network conditions.
• Q: Does the OC300 require a PC or server to run? No, it is a standalone hardware controller that operates 24/7 without needing a running PC or server.
• Q: Can the OC300 be managed remotely? Yes, it supports free cloud access via the Omada app or web UI for remote management from anywhere, with optional local on-premises control.
• Q: What power options does it support? External AC power supply (100-240V~50/60Hz); max consumption 9W without USB, 14.8W with USB 3.0 connected.
• Q: Is the OC300 rack-mountable? Yes, it features a 1U rackmount/desktop design with included rackmount kit for flexible installation.
