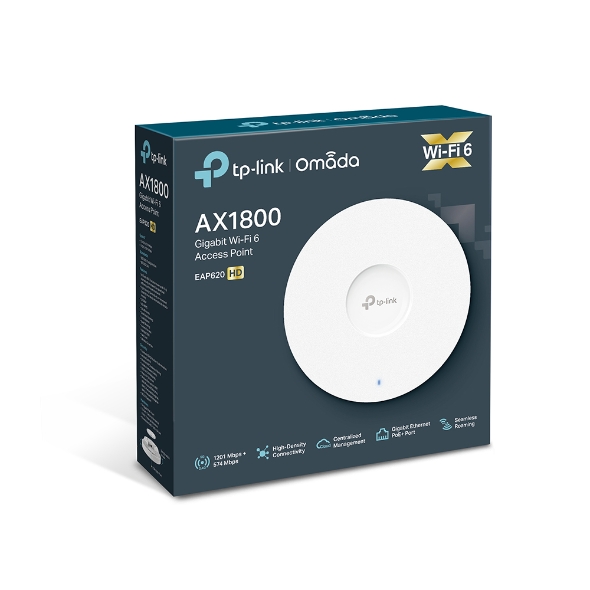

TP-Link EAP620 HD Omada AX1800 Wireless Dual Band Ceiling Mount Access Point, 1201Mbps @ 5GHz , OFDMA, MU-MIMO, QoS, Mountable

TP-Link EAP620 HD AX1800 Wireless Dual Band Ceiling Mount Access Point
• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
• High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
• PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
• 12 V DC
Power Consumption • EU: 12 W
• US: 13.5 W
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Why Choose This?

The TP-Link EAP620 HD Omada AX1800 Wireless Dual Band Ceiling Mount Access Point delivers ultra-fast Wi-Fi 6 speeds up to 1775 Mbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz), perfect for high-density environments like offices, hotels, and classrooms. With advanced features like OFDMA, MU-MIMO, and seamless Omada SDN integration, it supports over 1000 concurrent clients while ensuring low latency, seamless roaming, and easy centralized cloud management for reliable, scalable business networking.

Key Features

• Wi-Fi 6 AX1800 Speeds – Delivers 1775 Mbps total throughput for high-performance connectivity in demanding environments.
• High-Density Support – Handles 1000+ concurrent clients with 4x capacity increase over Wi-Fi 5 using OFDMA and MU-MIMO.
• Seamless Roaming – 802.11k/v enables uninterrupted transitions between APs for VoIP and video applications.
• Omada SDN Integration – Centralized cloud management, Zero-Touch Provisioning, and Omada Mesh for effortless deployment.
• PoE+ Powered – Supports 802.3at PoE and DC adapter for flexible, simple installation without extra wiring.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Does the EAP620 HD support PoE? Yes, it supports 802.3at PoE+ and 48V Passive PoE for flexible powering without a separate adapter.
• Q: How many clients can it handle? Up to 1000+ concurrent clients, optimized for high-density environments with OFDMA and MU-MIMO.
• Q: Is cloud management required? No, it works standalone or with Omada SDN controllers; cloud access via Omada Cloud-Based Controller (v2+).
• Q: Can it be wall-mounted? Yes, includes ceiling/wall/junction box mounting kits for versatile installation.
• Q: What is the coverage area? Up to 1500 ft² (140 m²), depending on environment; designed for indoor high-density use.
