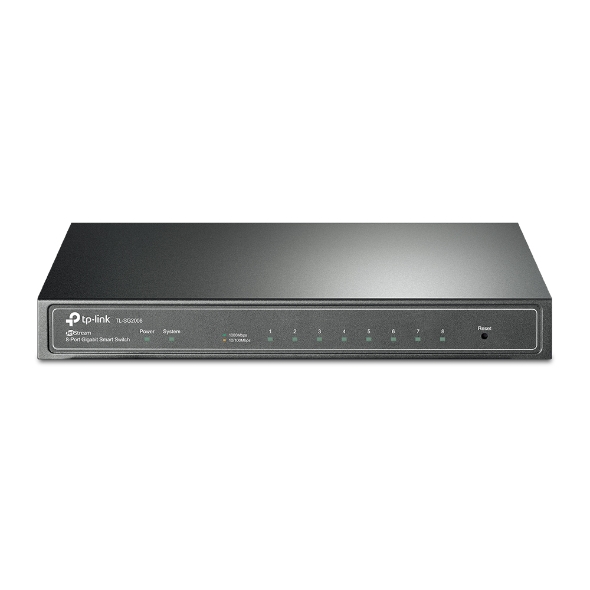

TP-Link SG2008 JetStream 8-Port Gigabit Smart Switch PORT: 8× Gigabit RJ45 Ports: Desktop Steel Case, Static Routing,Omada

TP-Link TL-SG2008 JetStream 8-Port Gigabit Smart Switch

• Full Gigabit Ports: 8× gigabit RJ45 ports provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.
• Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface 8 10/100/1000Mbps RJ45 Ports
(Auto-Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
Fan Quantity Fanless
Power Supply 12 VDC/1 A
External Adapter or
Obtain Power from
PoE Source
Power Consumption 6.4 W (220 V/50 Hz)
Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
PERFORMANCE
Bandwidth/Backplane 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 8K
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
– Multiple Control Modes(kbps/ratio)
– Broadcast/Multicast/Unknown-Unicast Control

Why Choose This?

The TP-Link SG2008 JetStream 8-Port Gigabit Smart Switch is designed for small to medium businesses seeking efficient, scalable networking with Omada SDN integration for centralized cloud management. It delivers high-speed Gigabit connectivity across 8 RJ45 ports, including one PoE PD port for flexible powering, while advanced L2+ features like static routing optimize internal traffic flow and enhance security. Its fanless steel case ensures silent, reliable operation in desktop or wall-mount setups, making it ideal for offices, retail, and hospitality environments.

Key Features

• 8× Gigabit RJ45 Ports (1 PoE PD) – Provides high-speed wired connections with flexible power options for easy deployment.
• Omada SDN Integration – Enables centralized cloud management, zero-touch provisioning, and intelligent monitoring via app or web.
• Static Routing (32 IPv4/IPv6 Routes) – Improves internal traffic efficiency without needing a separate router.
• Advanced L2+ Features (VLAN, ACL, QoS, IGMP Snooping) – Ensures secure segmentation, prioritized traffic, and optimized multicast for voice/video.
• Fanless Metal Casing – Delivers silent operation and durable build for noise-sensitive environments.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Does the SG2008 support Omada SDN for centralized management? Yes, it integrates with Omada SDN for cloud-based management via web, app, hardware/software controllers, including zero-touch provisioning and batch configuration.
• Q: Can it be powered via PoE? Yes, Port 8 supports PoE PD input for flexible powering without an external adapter.
• Q: What L3 features does it offer? Supports static routing with 32 IPv4/IPv6 routes, 32 IP interfaces, DHCP server/relay, and ARP features for efficient internal routing.
• Q: Is it suitable for quiet environments? Yes, its fanless design ensures silent operation, ideal for offices or homes.
• Q: What management options are available? Standalone via Web GUI, CLI (SSH/Telnet), SNMP, RMON; or centralized via Omada SDN controllers.
