Ubiquiti Gateway Fiber, Desktop 10G Independent Gateway,Integrated 4-port 2.5 GbE Switch, Managed With a CloudKey,5 Gbps Routing With IDS/IPS
$487.90 inc GST
Manufacturer: Ubiquiti
Availability: BRS:44 ADL:10 SYD:16 MEL:63 WA:10
143 in stock
Ubiquiti Gateway Fiber
SKU: UXG-Fiber
Tech Specs: Click Here
Installation Guide: Click Here
Description:
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
Features:
•Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
•5 Gbps routing with IDS/IPS

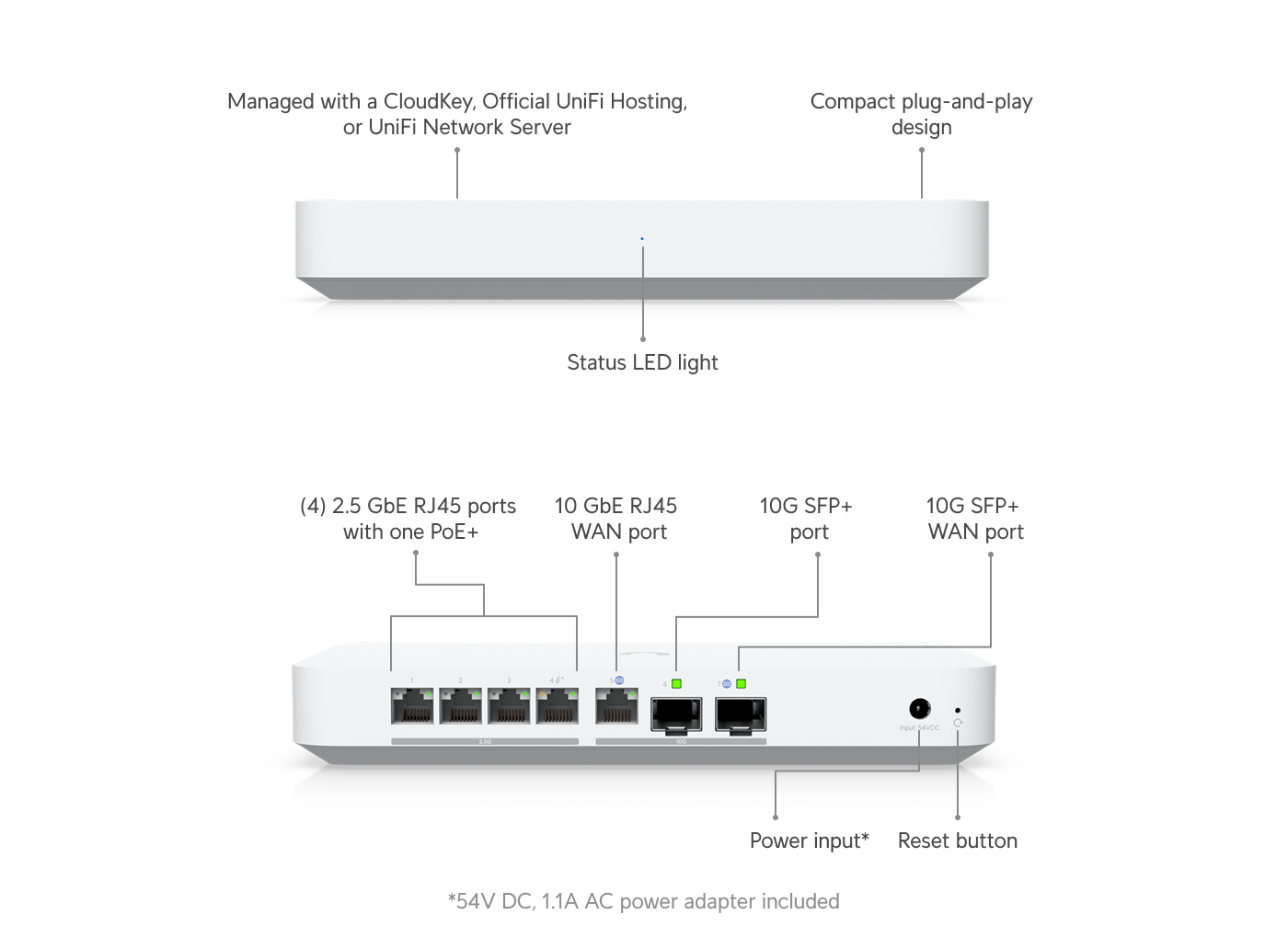

•(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
•(1) 10G SFP+ LAN port
•Integrated 4-port switch with (1) PoE+ port
Why Choose This?
The Ubiquiti UXG-Fiber is a compact desktop 10G independent gateway designed for high-performance networking, featuring an integrated 4-port 2.5 GbE switch with PoE+ support. It delivers 5 Gbps IDS/IPS throughput, multi-WAN capabilities, and advanced security features like stateful firewall and 55,000+ IPS signatures, ensuring robust protection for demanding home or small business networks. Managed via CloudKey, UniFi Hosting, or Network Server, it offers flexible 10G SFP+ and RJ45 connectivity for future-proof performance.
Key Features
- 5 Gbps IDS/IPS Throughput – Provides high-speed threat detection and prevention without compromising network speed.
- Integrated 4-port 2.5 GbE Switch with PoE+ (30W budget) – Enables multi-gigabit LAN connectivity and powers devices like access points directly.
- Dual 10G WAN Ports (1x SFP+, 1x RJ45) – Supports flexible high-bandwidth internet failover and load balancing up to 6 WAN ports.
- Quad-core ARM Cortex-A73 at 2.2 GHz Processor – Delivers powerful routing, VPN, and SD-WAN capabilities for smooth operation.
- Comprehensive UniFi Management – Ethernet/Bluetooth setup with CloudKey or UniFi OS for easy remote monitoring and configuration.
Full Specifications
| Category | Details |
|---|---|
| Form Factor | Compact desktop |

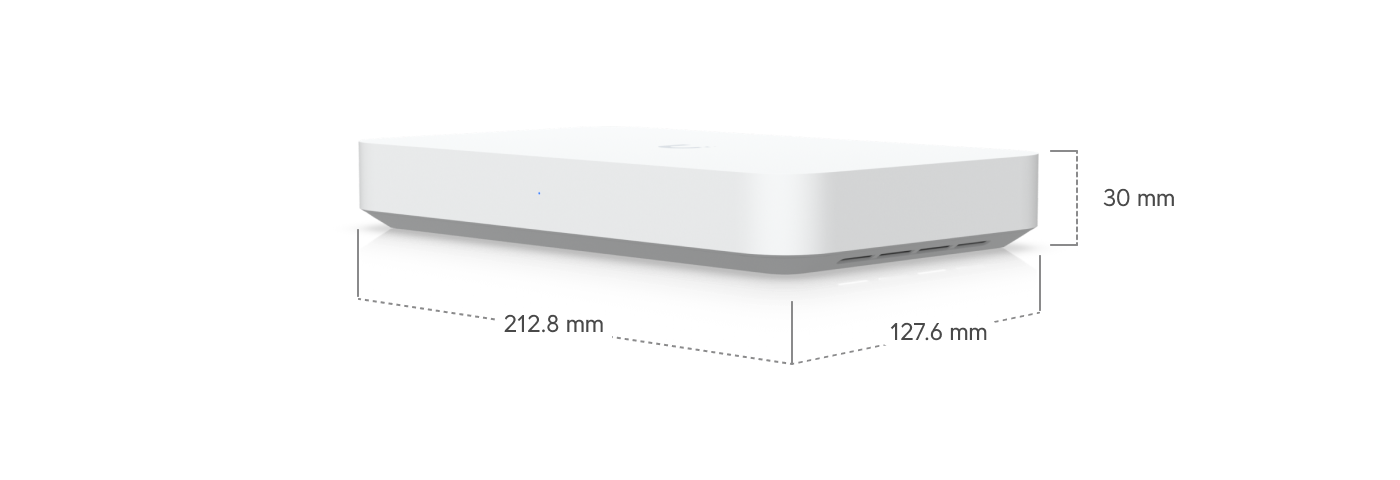

| Dimensions | 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2″) |
| Weight | 605 g (1.3 lb) |
| Enclosure Material | Polycarbonate |
| Processor | Quad-core ARM Cortex-A73 at 2.2 GHz |
| System Memory | 2 GB |

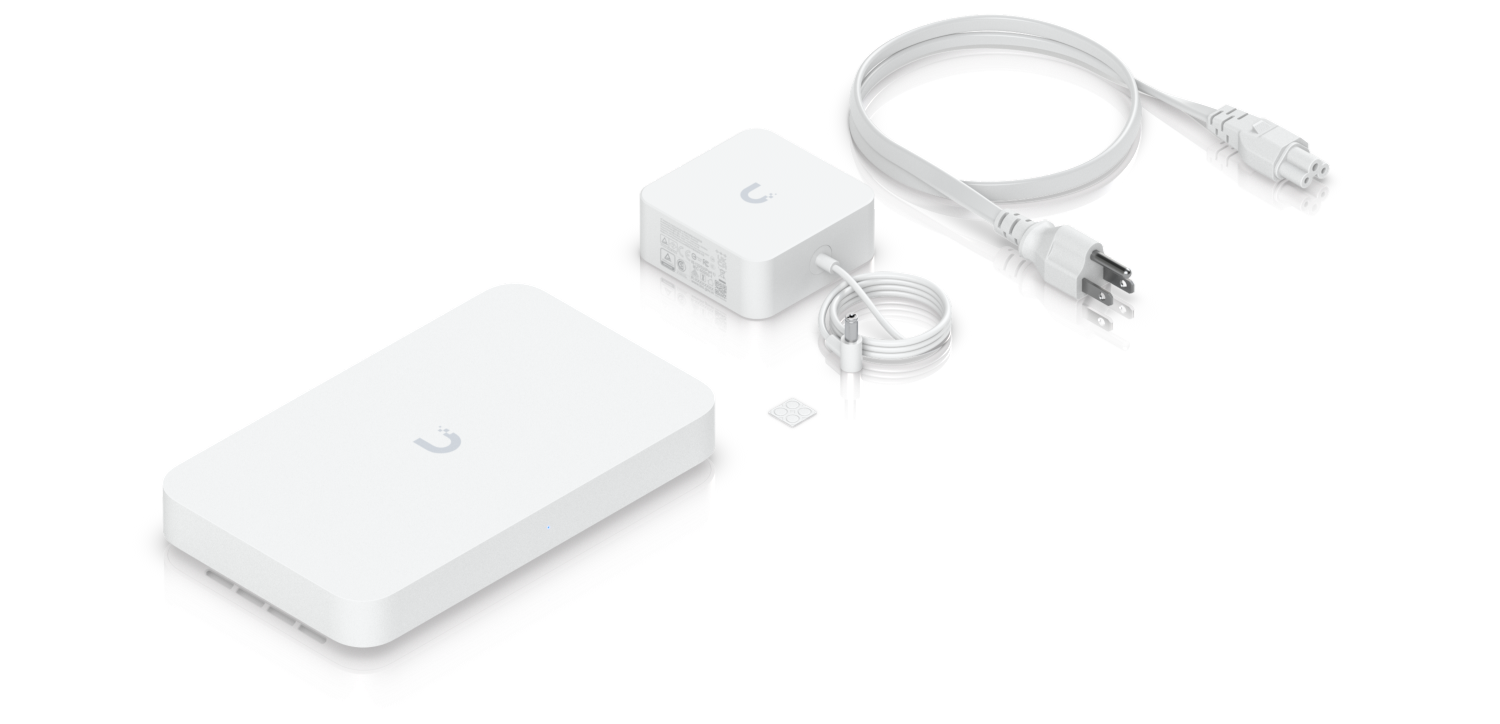

| Power Supply | 54V DC/1.1A adapter included (100–240V AC) |
| Max Power Consumption | 25W (excluding PoE output) |
| PoE Budget | 30W (PoE+ per port up to 30W) |
| IDS/IPS Throughput | 5 Gbps |
| Max WAN Ports | 6 |
| Default WAN Ports | (1) 10G SFP+, (1) 10 GbE RJ45 |
| LAN Ports | (1) 10G SFP+, 4x 2.5 GbE RJ45 (2.5G/1G/100M/10M, 1x PoE+) |
| 10 GbE RJ45 | 1 port (10G/2.5G/1G) |
| MAC Address Table Size | 4,000 |
| Security Features | Stateful Firewall, Application-Aware Layer 7 Firewall, DPI, IPS/IDS (55,000+ signatures with CyberSecure), Ad Blocking, Content Filtering |
| VPN Support | IPsec, OpenVPN, WireGuard, L2TP, Teleport VPN |
| Networking Features | Multi-WAN Load Balancing, SD-WAN, Dynamic Routing (OSPF), Advanced QoS, Advanced NAT |
| Management Interfaces | Ethernet, Bluetooth |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Certifications | CE, FCC, IC, NDAA Compliant |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What management options are available for the UXG-Fiber? It is managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server via Ethernet or Bluetooth interfaces.
- Q: Does it support PoE output? Yes, it has an integrated 4-port 2.5 GbE switch with one PoE+ port offering a 30W budget.
- Q: What is the maximum IDS/IPS throughput? 5 Gbps with IDS/IPS enabled, powered by a quad-core 2.2 GHz processor.
- Q: Can it handle multiple WAN connections? Yes, up to 6 WAN ports with load balancing, failover, and dual default 10G WAN ports (SFP+ and RJ45).
- Q: Is the UXG-Fiber suitable for small business use? Absolutely, with advanced security (55,000+ IPS signatures), VPN support, and multi-gigabit ports for high-performance networks.
| Weight | 1.28 kg |
|---|---|
| Dimensions | 220 × 240 × 80 mm |
| Product Create Date | 27/02/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UXG-Fiber |
| Opt Accessory | NHU-UMR-INDUSTRIAL, NHU-UICARE-UXG-FIBER-D |
