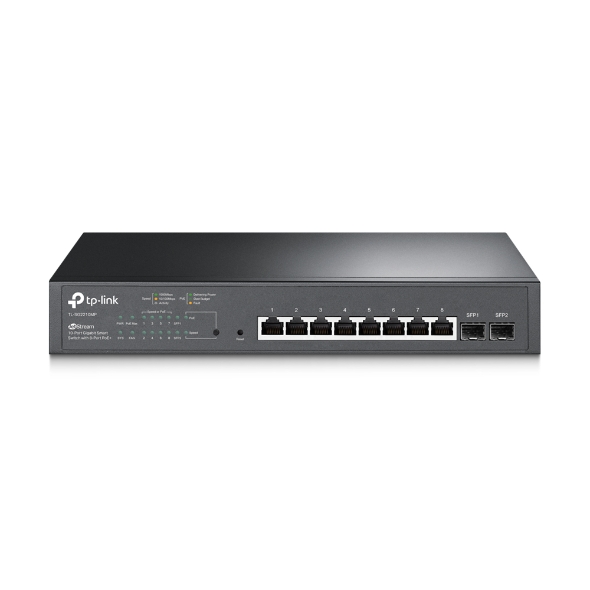

TP-Link SG2210MP 10-Port Gigabit Smart Switch with 8-Port PoE+ 1xFan 14.9Mpps Support Omada SDN, 802.1p CoS/DSCP QOS, IGMP Snoop Rack Mountable

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+ With Omada SDN Supported

• Features 8 802.3af/at compliant PoE+ ports, with total PoE power budget of 150 W and useful PoE power management features
• Omada SDN platform integration provides 100% centralised cloud management to create a highly scalable network
• Gigabit Ethernet connections on all ports provide full speed of data transferring
• Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
• L2/L3/L4 QoS and IGMP snooping optimise voice and video applications
• WEB/CLI managed modes, SNMP, RMON bring abundant management features

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
• 2× 100/1000 Mbps SFP Slots
Network Media • 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
• 100BASE-FX: MMF, SMF
• 1000BASE-X: MMF, SMF
Fan Quantity 1
Physical Security Lock Yes
PoE+ Ports(RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 8 Ports
• Power Supply: 150 W
Dimensions ( W x D x H ) (294 x 180 x 44 mm)
Mounting Rackmount/Desktop
Max Power Consumption • 12.2 W (110 V / 60 Hz with no PD connected)
• 173.9 W (110 V / 60 Hz with 150 W PD connected)
Max Heat Dissipation • 41.63 BTU/h (with no PD connected)
• 539.35 BTU/h (with 150 W PD connected)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB

Why Choose This?

The TP-Link SG2210MP is a 10-Port Gigabit Smart Switch designed for small to medium businesses, delivering reliable high-speed networking with 8 PoE+ ports offering a 150W power budget to seamlessly power IP cameras, access points, and VoIP phones without extra adapters. Integrated with Omada SDN for effortless centralized cloud management, zero-touch provisioning, and advanced L2+ features like static routing, VLAN, QoS, and IGMP Snooping, it ensures optimized performance for voice, video, and data traffic. Its rack-mountable metal design with 1 fan provides durability, quiet operation, and easy deployment in professional environments.

Key Features

• 8× Gigabit PoE+ Ports (802.3af/at) – Powers up to 8 devices with 150W total budget, up to 30W per port for flexible deployment of APs, cameras, and phones.
• 2× Gigabit SFP Slots – Enables fiber uplinks for long-distance, high-speed connections without bottlenecks.
• Omada SDN Integration – Centralized cloud management via app/web, zero-touch provisioning, batch config, and monitoring for scalable networks.
• Advanced QoS (802.1p/DSCP) & IGMP Snooping – Prioritizes voice/video traffic and optimizes multicast for smooth streaming and conferencing.
• Static Routing & VLAN Support – Routes internal traffic efficiently with up to 4K VLANs for secure, segmented networks.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: What is the total PoE power budget? 150 W total, with up to 30 W per PoE+ port across 8 ports, ideal for powering multiple devices like APs and cameras.
• Q: Does it support Omada SDN management? Yes, fully integrated with Omada SDN for cloud-based centralized management, zero-touch provisioning, and app/web control.
• Q: Is it rack-mountable? Yes, it supports standard 19-inch 1U rackmounting or desktop installation with included rackmount kit.
• Q: What QoS features are available? Supports 802.1p CoS/DSCP priority, 8 queues, bandwidth control, and storm control for optimized voice/video traffic.
• Q: Does it have a fan and is it loud? Features 1 fan for cooling under full PoE load; designed for quiet operation in business environments.
