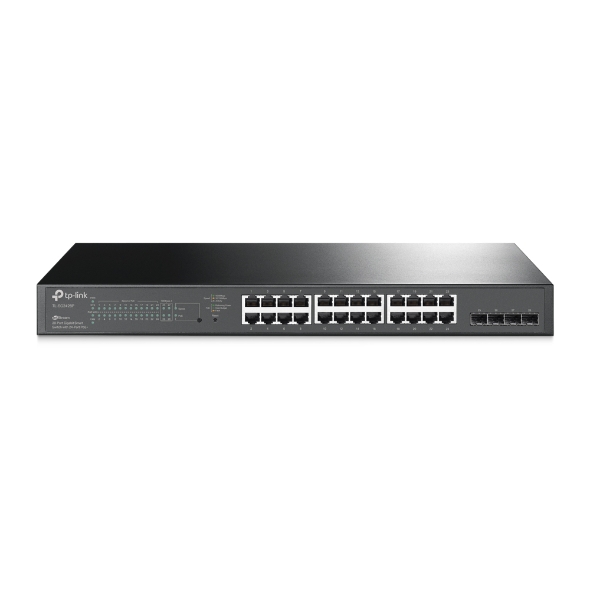

TP-Link SG2428P JetStream 28-Port Gigabit Smart Switch 24-Port PoE+ 4 Gigabit SFP, Omada SDN, 802.1p CoS/DSCP QOS, Rack Mountable

TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+ With Omada SDN Supported

• 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
• Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbour discovery.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
Fan Quantity 2
PoE+ Ports(RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• Power Supply: 250 W
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting Rack Mountable
Max Power Consumption • 32.1 W (110 V/ 60 Hz with no PD connected)
• 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation • 109.53 BTU/h (with no PD connected)
• 1052.94 BTU/h (with 250 W PD connected)

PERFORMANCE
Bandwidth/Backplane 56 Gbps
Packet Forwarding Rate 41.7 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB

Why Choose This?

The TP-Link SG2428P JetStream 28-Port Gigabit Smart Switch delivers reliable high-speed networking with 24 PoE+ ports offering a 250W power budget, ideal for powering IP cameras, access points, and VoIP phones without additional injectors. Integrated with Omada SDN for centralized cloud management, it supports advanced L2+ features like static routing, robust QoS, and comprehensive security to optimize traffic and protect your network. Its rack-mountable metal design ensures durability and seamless scalability for growing business environments.

Key Features

• 24 Gigabit PoE+ Ports with 250W Budget – Powers multiple devices like cameras and APs up to 30W each, simplifying deployment.
• 4 Gigabit SFP Slots – Enables high-speed fiber uplinks for extended range and backbone connections.
• Omada SDN Integration – Provides zero-touch provisioning, centralized cloud management, and intelligent monitoring via app or web.
• 56 Gbps Switching Capacity – Handles heavy traffic loads with 41.66 Mpps forwarding rate and 8K MAC address table.
• Advanced QoS & Security – Prioritizes voice/video with 802.1p/DSCP, plus ACL, 802.1X, and storm control for secure, efficient operation.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: What is the total PoE power budget? 250W total, with up to 30W per PoE+ port across 24 ports (actual varies by environment and devices).
• Q: Does it support Omada SDN management? Yes, integrates with Omada SDN for centralized cloud access, zero-touch provisioning, batch configuration, and monitoring via app or controller.
• Q: What is the switching capacity and forwarding rate? 56 Gbps switching capacity and 41.66 Mpps packet forwarding rate for high-performance traffic handling.
• Q: Is it rack-mountable? Yes, 1U rack-mountable design with included rackmount kit, dimensions 440 × 220 × 44 mm.
• Q: What security features are included? Includes 802.1X authentication, ACL with 230 entries, IP-MAC-Port binding, storm control, DHCP Snooping, and DoS defense.
