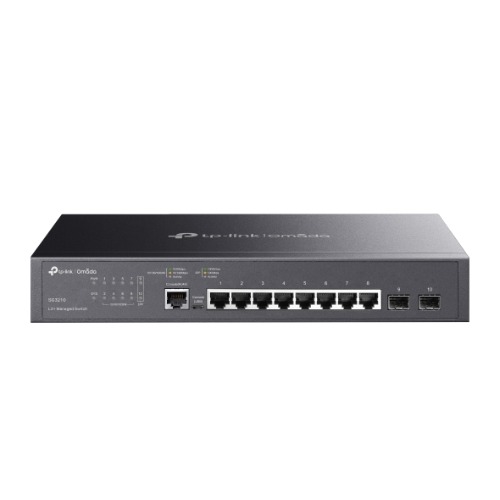

TP-Link SG3210 JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots Omada

TP-Link SG3210 JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots

IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
L2/L3/L4 QoS and IGMP snooping optimize voice and video application
WEB/CLI managed modes, SNMP, RMON bring abundant management features

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,
IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,
IEEE 802.1x,IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 1000Mbps SFP Slots
1 Console Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity Fanless
Power Supply 100～240VAC, 50/60Hz
Power Consumption Maximum: 10.7W (220V/50Hz)
Dimensions ( W x D x H ) 11.6*7.9*1.7in. (294*200*44 mm)
PERFORMANCE
Bandwidth/Backplane 20Gbps
Packet Forwarding Rate 14.9Mpps
MAC Address Table 8k
Packet Buffer Memory 4Mb
Jumbo Frame 10240 Bytes
SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Management VLAN configuration
Access Control List L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Time Range Based
Security IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP

Why Choose This?

The TP-Link SG3210 JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots and Omada integration delivers high-performance networking for small to medium businesses, offering reliable Gigabit speeds and flexible fiber expansion. It combines advanced L2+ features like static routing, robust QoS for voice/video optimization, and comprehensive security against threats like ARP attacks and storms, all managed centrally via Omada SDN for effortless scalability and monitoring. With fanless design and rackmount capability, it’s a cost-effective, silent solution for efficient, secure network deployment.

Key Features

• 8 Gigabit RJ45 Ports + 2 SFP Slots – Provides high-speed wired and fiber connectivity for flexible network expansion.
• Omada SDN Integration – Enables zero-touch provisioning, cloud management, and intelligent monitoring for simplified deployment.
• Static Routing (48 IPv4/IPv6 routes) – Improves internal traffic efficiency without needing a separate router.
• L2/L3/L4 QoS with 8 Queues – Prioritizes voice, video, and critical data for smoother performance.
• Advanced Security (ACL, IP-MAC-Port Binding, 802.1X) – Protects against DoS attacks, unauthorized access, and broadcast storms.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Is the TP-Link SG3210 Omada SDN compatible? Yes, it integrates with Omada SDN for centralized cloud management, zero-touch provisioning, batch configuration, and monitoring via Omada controllers or app.
• Q: Does it support inter-VLAN routing? Yes, as an L2+ switch, it supports static routing with up to 48 IPv4/IPv6 static routes and 16 IP interfaces for efficient internal traffic handling.
• Q: What management options are available? Standalone management via Web GUI, CLI (console, Telnet, SSH), SNMP/RMON; or centralized via Omada SDN cloud/hardware/software controllers.
• Q: Is it fanless and suitable for office use? Yes, fanless design ensures silent operation; rackmount/desktop installation with metal casing for durability in office environments.
• Q: Does it support fiber uplinks? Yes, 2 Gigabit SFP slots for flexible fiber connectivity using MMF/SMF modules, with DDM support on some versions.
