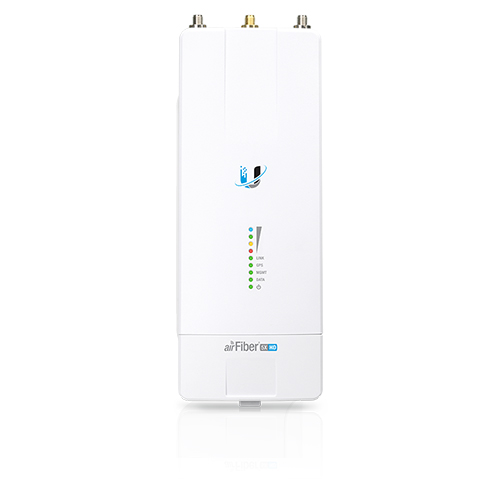

Ubiquiti AirFiber 5XHD – Long Range 5GHz Carrier Back-Haul Radio – True 1Gbps+, Noise Resilient PTP Technology, Designed for WISP,
$823.48 inc GST
Manufacturer: Ubiquiti
Availability: BRS:1 ADL:17 Jun SYD:5 MEL:28 WA:8
42 in stock
Ubiquiti airFiber 5XHD
SKU: AF-5XHD
Description: True 1+ Gbps spectrally efficient, noise resilient PTP technology specifically designed for WISP’s.
Tech Specs: Click Here
Features:
•5 GHz, 100+ km link range
•1000+ Mbps throughput
•Dedicated spectral analysis radio
•Integrated GPS sync
•2+ Mpps processing
Why Choose This?
The Ubiquiti AirFiber 5XHD is a high-performance 5GHz carrier backhaul radio engineered for Wireless ISPs (WISPs), delivering true 1+ Gbps throughput over 100+ km ranges with LTU technology that outperforms traditional Wi-Fi. Its noise-resilient design, featuring advanced spectral efficiency up to 21.2 bps/Hz and proprietary RF filtering, ensures reliable operation in crowded spectrum environments. Ideal for long-range PTP links, it offers low latency, GPS synchronization, and rugged IP67 weatherproofing for demanding outdoor deployments.
Key Features
- LTU Technology – Custom silicon enables 1.34 Gbps real throughput and 21.2 bps/Hz spectral efficiency, breaking Wi-Fi limitations for superior ISP backhaul.
- Noise Resilient PTP – Proprietary RF filtering and xtreme Range Technology (xRT) provide excellent interference immunity and up to 100+ km range.
- Adaptive Modulation to 4096QAM – Dynamically adjusts up to highest-order modulation for optimal performance in varying conditions (firmware 1.1.2+).
- GPS Synchronization – Configurable 2-5 ms frames with frequency accuracy <0.2 ppm, enabling interference-free co-location and compatibility with airMAX.
- IP67 Weatherproofing – Included upgrade kit ensures dust/water protection, plus wide -40 to 55°C operation for harsh environments.
Full Specifications
| Category | Details |
|---|---|
| Manufacturer | Ubiquiti |
| Model/SKU | AF-5XHD |

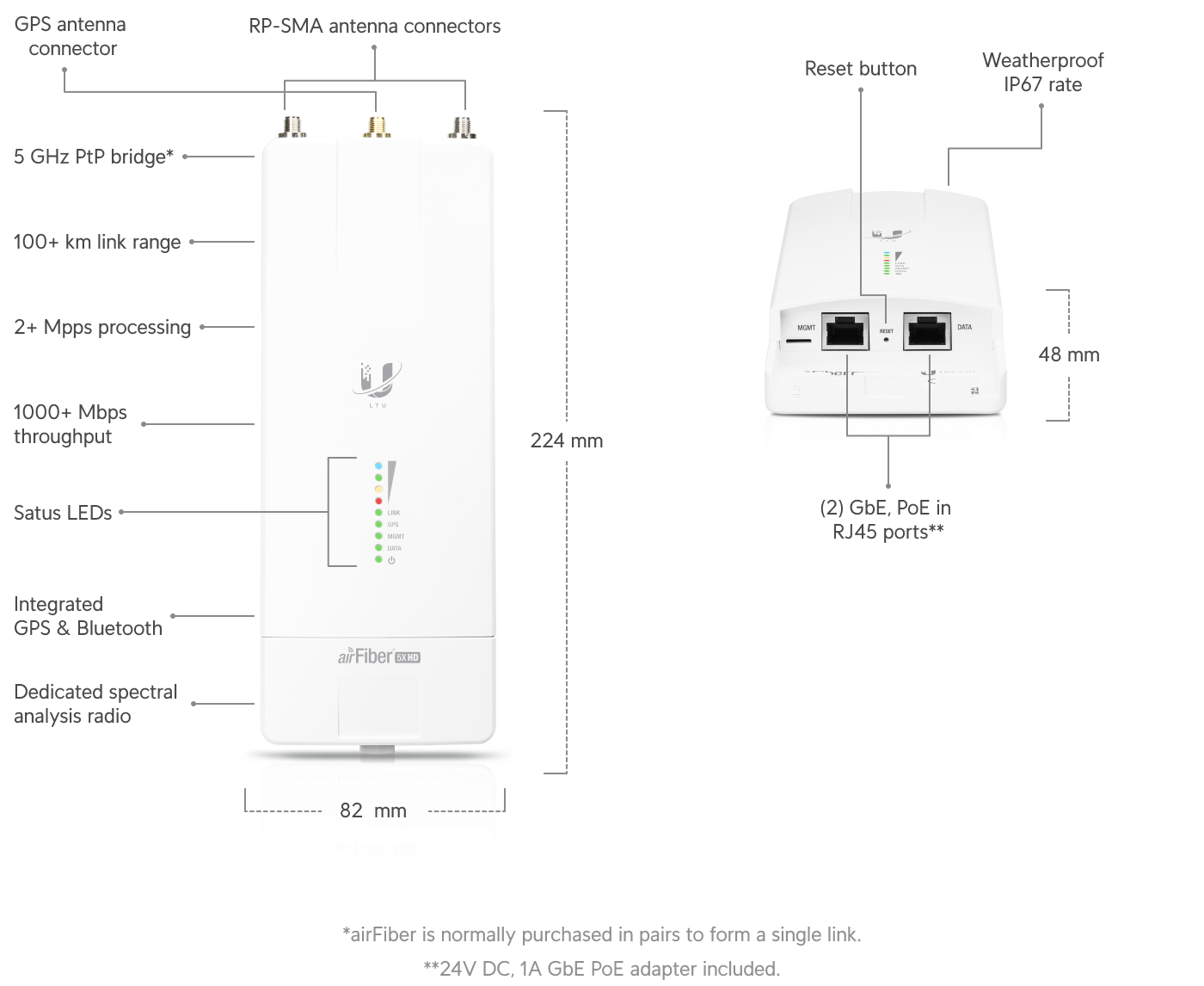

| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″) |
| Weight | 0.35-0.4 kg (12.3 oz / 0.8 lb) |
| Weatherproofing | IP67 (after IP67 upgrade kit installation, included) |
| Operating Temperature | -40 to 55°C (-40 to 131°F) |
| Mounting | airFiber X / RocketDish compatible, GPS Pole Mount (included) |
| Networking Interfaces | 2 x 10/100/1000 Ethernet RJ45 (Data + Management, PoE redundant) |
| Power Method | Passive PoE (Pins 1,2+; 4,5+ ; 7,8-; 3,6-), 24V 1A adapter included |
| Max Power Consumption | 6-12W |
| Supported Voltage | 18-54 VDC |
| Max Throughput | 1.34 Gbps+ (4096QAM, firmware 1.1.2+; varies by conditions) |
| Max Range | 100+ km (varies by conditions) |
| Packets per Second | 2+ million (hardware bridge mode) |
| Latency | 1.5-3.5 ms (2 ms frame) |
| Encryption | AES-256 |
| OS | airOS LTU |
| Wireless Modes | PtP Master/Slave |
| Operating Frequency | 4800-6200 MHz (worldwide; US/CA: 5150-5850 MHz U-NII bands) |
| Channel Bandwidth | 10/20/30/40/50/60/80/100 MHz selectable |
| Max TX Power | 29 dBm (region dependent) |
| Modulation | Up to 4096QAM adaptive |
| Certifications | CE, FCC, IC; NDAA Compliant |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum real-world throughput? Up to 1.34 Gbps aggregate with 4096QAM on 100 MHz channels (firmware 1.1.2+), but actual performance varies by distance, interference, modulation, and environmental conditions.
- Q: Does it support GPS synchronization? Yes, configurable for 2/2.5/4/5 ms frames with external magnetic GPS antenna; achieves <0.2 ppm accuracy for co-location without interference.
- Q: Is it compatible with older airFiber models like AF-5X? No, AF-5XHD uses new LTU architecture incompatible with AF-5X; pair with another AF-5XHD or compatible antennas like airFiber X or RocketDish.
- Q: What channel bandwidths are supported? 10/20/30/40/50/60/80/100 MHz selectable; supports split TX/RX frequency and bandwidth (firmware updates required for some features).
- Q: How rugged is it for outdoor use? IP67 rated after installing included upgrade kit; operates -40 to 55°C with enhanced surge protection and wide 18-54VDC input.
| Weight | 0.35 kg |
|---|---|
| Dimensions | 224 × 82 × 48 mm |
| Product Create Date | 17/11/2017 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | AF-5XHD |
| Opt Accessory | NHU-AF-5G34-S45, NHU-AF-5G30-S45, NHU-AF-5G23-S45, NHU-POE-24-24WG, NHU-LTU-CLAMP |
