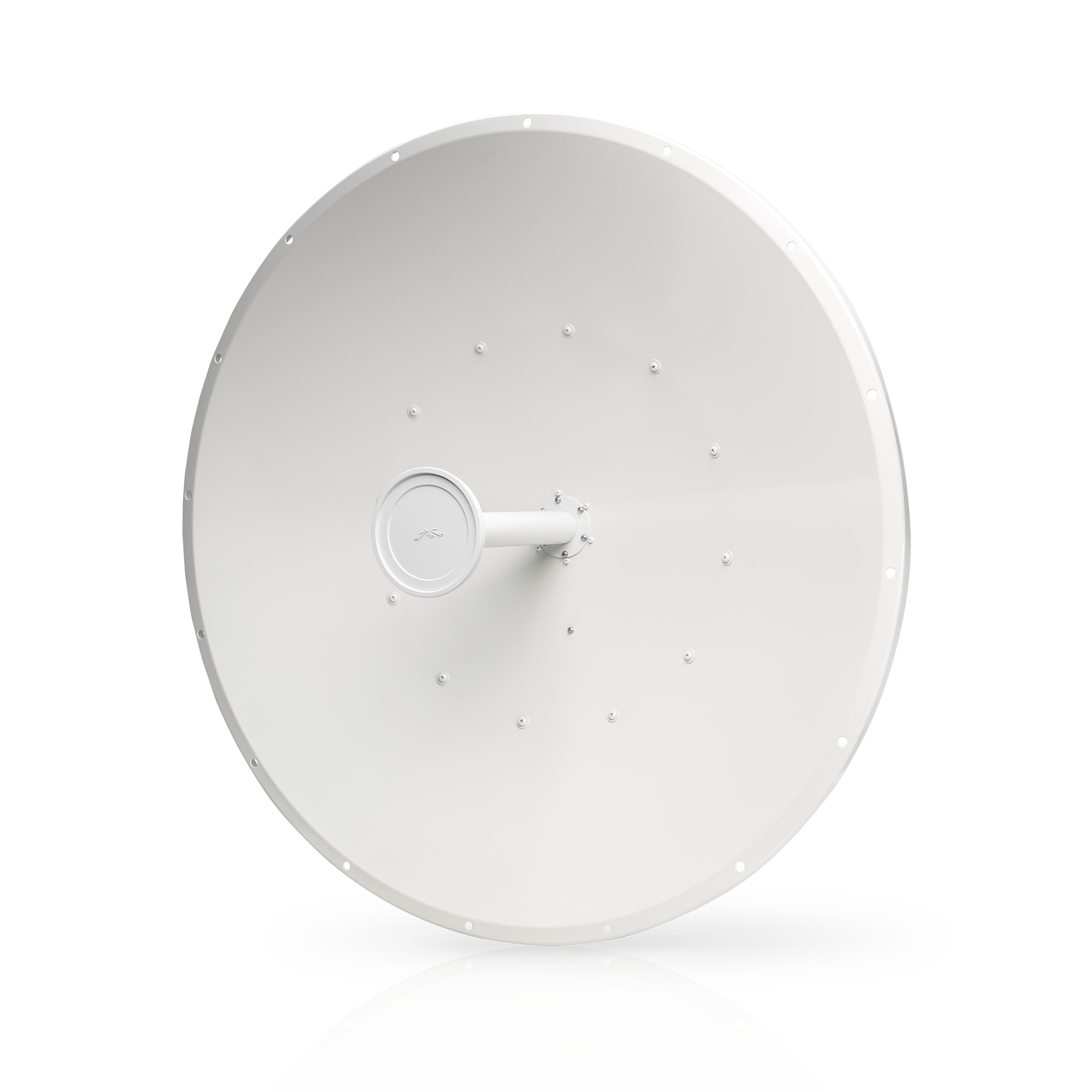

Ubiquiti 5GHz airFiber Dish 34dBi Slant 45 Degree Signal Angle for Optimum Interference Avoidance, Universal Pole Mount, Weatherproof,
$624.75 inc GST
Manufacturer: Ubiquiti
Availability: BRS:1 ADL:0 SYD:0 MEL:0 WA:0
1 in stock
Ubiquiti airFiberX dish antenna, 5GHz 34dBi, slant 45degrees
SKU: AF-5G34-S45
Description: 5 GHz, 34 dBi antenna ideal for long range Point-to-Point (PtP) links.
Tech Specs: Click Here
Features
•2 x 2 dual-polarity performance
•Robust mechanical design for outdoor application use
•Secure pole-mounting
•Compatible with airFiber 5XHD
•Powerful Performance for Long-Range Links
• Robust Design and Construction for Outdoor Use
• Seamless Integration with airFiber Radio
• Frequency Range: 5.10-5.90 GHz
• Gain: 34dBi
• Dimensions: 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57″)
* Weight 13.5 kg (29.76 lb)
• (Mount Included)
•Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
• Weatherproof RF Connectors,
Why Choose This?
The Ubiquiti AF-5G34-S45 is a high-performance 5 GHz airFiber dish antenna delivering 34 dBi gain for ultra-long-range point-to-point wireless links, enabling gigabit speeds over extended distances. Its 45° slant polarization optimizes interference avoidance in dense RF environments, while the robust weatherproof design and universal pole mount ensure reliable outdoor deployment in harsh conditions.
Key Features
- 34 dBi high gain – Enables ultra-long-range PtP links with superior signal strength and throughput.
- 45° slant dual-linear polarization – Minimizes interference for optimal performance in co-located installations.
- Universal pole mount and radio bracket included – Simplifies installation with no special tools required.
- Weatherproof RF jumpers – Provides reliable, sealed connections for all-weather durability.
- 200 km/h wind survivability – Ensures stability and performance in extreme weather conditions.
Full Specifications
| Category | Details |
|---|---|
| Model | AF-5G34-S45 |
| Dimensions | 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57″) |
| Weight (with Mount) | 13.5 kg (29.76 lb) |
| Frequency Range | 5.1 – 5.8 GHz |
| Gain | 34 dBi |
| Max. VSWR | 1.4:1 |
| +45° Beamwidth (3 dB) | 3° |
| -45° Beamwidth (3 dB) | 3° |
| F/B Ratio | 42 dB |
| Polarization | Dual Linear |
| Cross-pol Isolation | 35 dB Min. |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 1,779 N @ 200 km/h (400 lbf @ 125 mph) |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | Yes |
| Mounting | Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the AF-5G34-S45 designed for? It’s a high-gain 5 GHz antenna for airFiber X radios, ideal for long-range PtP wireless backhaul links.
- Q: Is it compatible with airFiber 5XHD? Yes, it’s fully compatible with airFiber AF-5X and AF-5XHD radios via the included bracket.
- Q: What mounting options are included? Universal pole mount, airFiber radio bracket, and weatherproof RF jumpers are all included for easy setup.
- Q: Can it withstand high winds? Yes, rated for 200 km/h (125 mph) survivability with 1,779 N wind loading at that speed.
- Q: Does it meet regulatory standards? Yes, complies with ETSI EN 302 326 DN2 and is NDAA compliant.
| Weight | 13.5 kg |
|---|---|
| Dimensions | 1050 × 1050 × 420 mm |
| Product Create Date | 25/04/2016 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | AF-5G34-S45 |
| Opt Accessory | NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR |
Dropship Delivery Info
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
