Ubiquiti UISP airMAX PowerBeam AC, 620mm 5 GHz WiFi Antenna with a 450+ Mbps Real TCP/IP Throughput Rate, 20Km+ Range
$401.03 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:5 WA:0
5 in stock

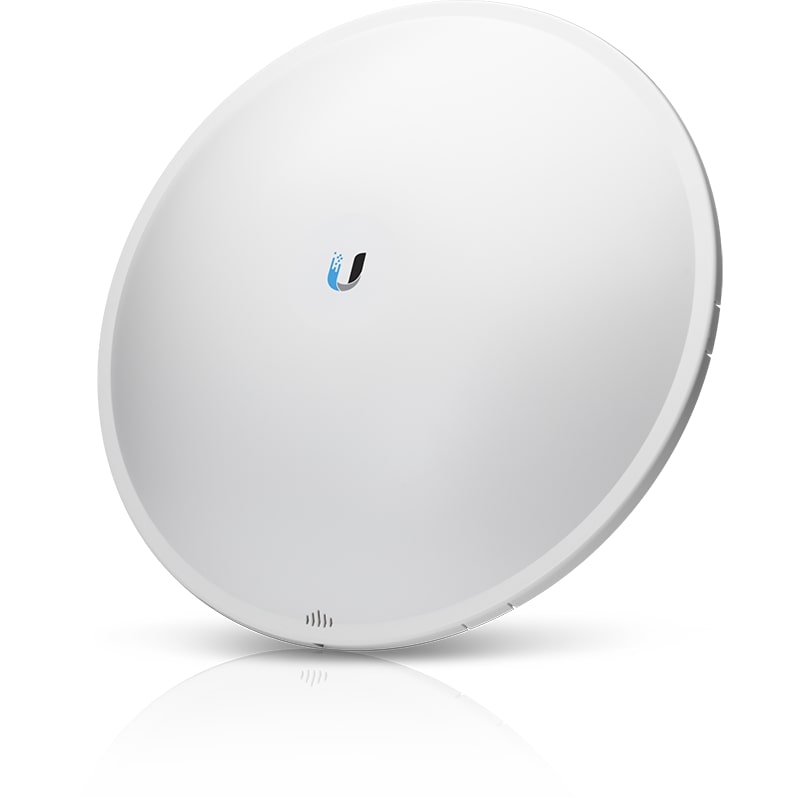

Ubiquiti airMAX PowerBeam 5AC 620
SKU: PBE-5AC-620
Description: 5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
Tech Specs: Click Here
Features:
•5 GHz, 25+ km link range
•450+ Mbps throughput
•Improved mounting
•Dedicated spectral analysis radio
•Dedicated WiFi management radio
Why Choose This?
The Ubiquiti UISP airMAX PowerBeam AC PBE-5AC-620 is a high-performance 5 GHz bridge antenna designed for long-range point-to-point links, delivering 450+ Mbps real TCP/IP throughput over 25+ km. Its 29 dBi high-gain dish reflector and airMAX ac technology ensure superior noise immunity and reliability in demanding outdoor environments. Ideal for ISPs and enterprises needing robust, scalable wireless backhaul with easy pole mounting and dedicated management radios.
Key Features
- 450+ Mbps throughput – Provides high-speed real TCP/IP performance for bandwidth-intensive applications.
- 25+ km range – Enables long-distance PtP bridges with strong signal integrity.
- 29 dBi antenna gain – High-gain 620 mm dish maximizes range and noise rejection.
- Dedicated spectral analysis radio – Scans for interference to optimize channel selection automatically.
- Improved mounting and UV-stabilized enclosure – Simplifies installation and withstands harsh weather up to 200 km/h winds.
Full Specifications
| Category | Details |
|---|---|

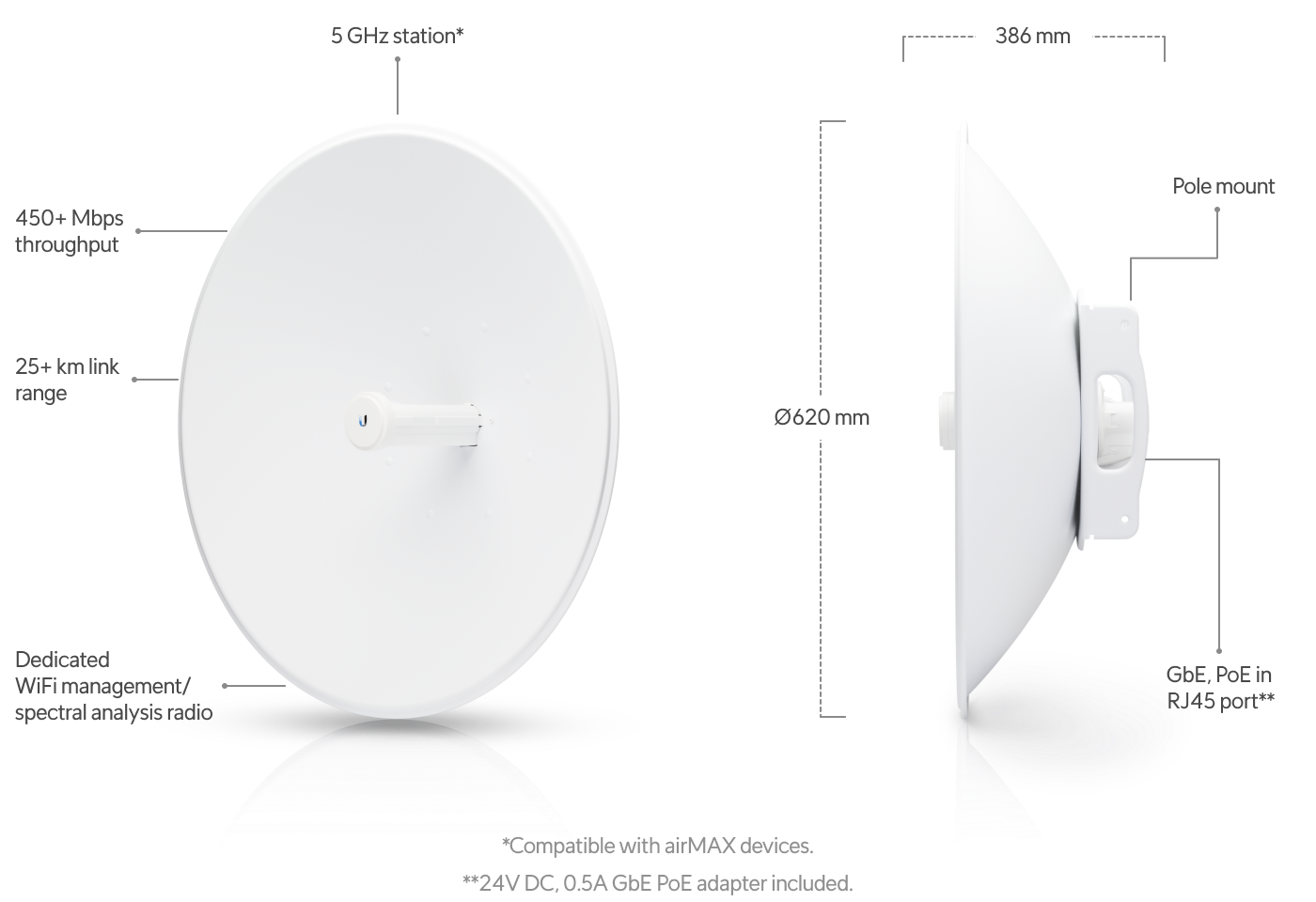

| Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2″) |
| Weight | 6.4 kg (14.1 lb) |
| Enclosure Material | Outdoor UV-stabilized plastic |
| Mounting | Pole mount kit (included) |
| Wind Loading (without radome) | 1510 N @ 200 km/h (340 lbf @ 125 mph) |
| Wind Loading (with radome) | 1830 N @ 200 km/h (411 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Networking Interface | (1) GbE RJ45 port (10/100/1000 Ethernet) |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 16 MB Flash |
| Power Supply | 24V, 0.5A Gigabit PoE adapter (included) |
| Max Power Consumption | 8.5W |
| Power Method | Passive PoE (pairs 4,5+; 7,8 return) |
| Supported Voltage | 20-27V DC |
| ESD/EMP Protection | Air/Contact: ±24 kV |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Antenna Gain | 29 dBi |
| Max VSWR | 1.6:1 |
| Polarization | Dual linear |
| Channel Sizes (PtP) | 10/20/30/40/50/60/80 MHz |
| Channel Sizes (PtMP) | 10/20/30/40 MHz |
| Operating Frequency (Worldwide) | 5150-5875 MHz |
| Max Output Power | 24 dBm |
| Certifications | FCC, IC, CE, RoHS, NDAA Compliant |
| Throughput | 450+ Mbps real TCP/IP |
| Link Range | 25+ km |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum throughput and range? Up to 450+ Mbps real TCP/IP throughput with 25+ km link range in optimal conditions, using airMAX ac technology.
- Q: Does it support PtMP mode? Yes, PtMP mode supports channel sizes up to 40 MHz; primarily optimized for PtP with up to 80 MHz channels.
- Q: What power method does it use? Passive PoE (pairs 4,5+ and 7,8 return) with included 24V, 0.5A Gigabit PoE adapter; max 8.5W consumption.
- Q: Is it suitable for harsh environments? Yes, operates from -40 to 70°C, survives 200 km/h winds, with ESD protection ±24 kV and various MIL-STD tests passed.
- Q: Can it be purchased as a single unit? Recommended to buy in pairs for links; compatible with optional ISO-Beam-620 radome for improved performance.
| Weight | 6.4 kg |
|---|---|
| Dimensions | 62 × 62 × 38.6 mm |
| Product Create Date | 25/04/2016 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | PBE-5AC-620 |
| Opt Accessory | NHU-POE-24-12WG |
