Ubiquiti airMAX PrismStation AC 5 GHz BaseStation – No Antenna,
$568.82 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:7 WA:0
7 in stock

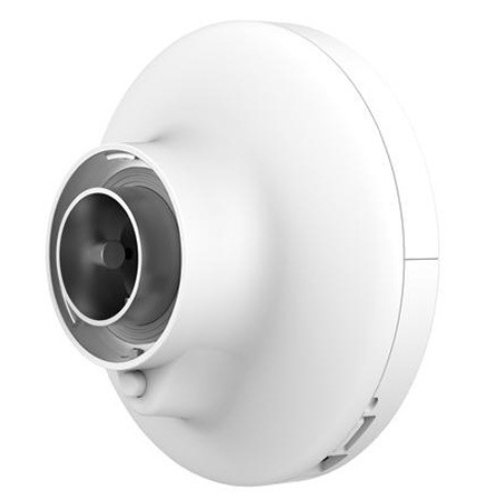

Ubiquiti airMAX PrismStation AC 5 GHz BaseStation – No Antenna
SKU: PS-5AC
Tech Specs: Click Here
Description: The Ubiquiti PrismStation 5AC PS-5AC directs RF energy in a tighter beamwidth using an interchangeable isolation antenna horn, available in both symmetrical and asymmetrical designs. With the focus in one direction, the PrismStation 5AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Tech Specs: Click Here
Features:
• Shielded airMAX AC radio base with airPrism technology.
• Capable of high-speed, carrier-class links
• Dedicated WiFi management radio
Why Choose This?
The Ubiquiti airMAX PrismStation AC 5 GHz BaseStation (PS-5AC) is a shielded, high-performance outdoor radio designed for PtMP and PtP wireless links in crowded RF environments. Featuring proprietary airPrism technology for superior noise immunity and focused beamwidth via interchangeable horn antennas, it delivers up to 500+ Mbps real TCP/IP throughput with enhanced co-location capabilities. Its robust build, integrated GPS synchronization, and easy modular design make it ideal for scalable WISP deployments requiring reliability and high density.
Key Features
- airPrism Active RF Filtering – Rejects up to 30+ dB interference for cleaner signals and higher throughput in noisy areas.
- Modular Horn Antennas – Interchangeable options (e.g., Horn-5-30/45/60/90) direct RF energy tightly, enabling dense co-location without sacrificing gain.
- Dedicated Wi-Fi Management Radio – Simplifies remote access, setup via UNMS app, and real-time RF analytics with airView spectrum analyzer.
- Integrated GPS Sync – Ensures precise timing for multi-radio deployments, reducing interference in PtMP networks.
- High-Performance airMAX ac Protocol – TDMA-based scheduling delivers low-latency, 500+ Mbps throughput for demanding applications.
Full Specifications
| Category | Details |
|---|---|
| Dimensions (Device) | 155 x 155 x 104 mm (5.2 x 5.2 x 4.1″) |
| Weight (Device) | 0.8 kg (1.7 lb) |
| Mounting | Pole mount kit (Included) |
| Wind Loading | 31 N at 200 km/h (7 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Networking Interface | (1) GbE RJ45 port (10/100/1000 Ethernet) |
| Power Method | 24V Passive PoE (Pairs 4,5+; 7,8 return) |
| Power Supply | 24V, 1A Gigabit PoE Adapter (Included) |
| Supported Voltage Range | 20–27 VDC |
| Max. Power Consumption | 10W |
| ESD/EMP Protection | ±24 kV Air/Contact |
| Operating Frequency (Worldwide) | 5150–5875 MHz |
| Operating Frequency (US) | U-NII-1: 5150–5250 | U-NII-2A: 5250–5350 | U-NII-2C: 5470–5725 | U-NII-3: 5725–5850 MHz |
| Management Radio (US) | 2412–2462 MHz |
| Max. Output Power | 28 dBm |
| Throughput | 500+ Mbps real TCP/IP (airMAX ac, 256QAM) |
| Polarization | Dual-linear |
| Max. VSWR | 2:1 |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC; NDAA Compliant |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What antennas are compatible with the PS-5AC? Interchangeable Ubiquiti Horn antennas (Horn-5-30, Horn-5-45, Horn-5-60, Horn-5-90) or U-OMT-Dish for focused beamwidth and optimal co-location.
- Q: Does it support GPS synchronization? Yes, features an integrated GPS port for precise timing and reduced interference in multi-AP PtMP networks.
- Q: What is the maximum throughput? Up to 500+ Mbps real TCP/IP throughput using airMAX ac protocol with 256QAM modulation and optimal conditions.
- Q: What power supply is required? 24V, 1A Passive Gigabit PoE adapter (included); supports 20–27 VDC input with max 10W consumption.
- Q: Is it suitable for dense urban deployments? Yes, airPrism technology and horn antennas enable high co-location density by filtering 30+ dB interference and providing low side lobes.
| Weight | 2.24 kg |
|---|---|
| Dimensions | 216 × 296 × 138 mm |
| Product Create Date | 20/09/2017 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | PS-5AC |
| Opt Accessory | NHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-POE-24-24WG, NHU-PRISMAP-5-30, NHU-PRISMAP-5-45, NHU-PRISMAP-5-90, NHU-EXTWAR-UBNT-5YR |
