🚛 Out of stock - Estimated arrival to QLD: CALL

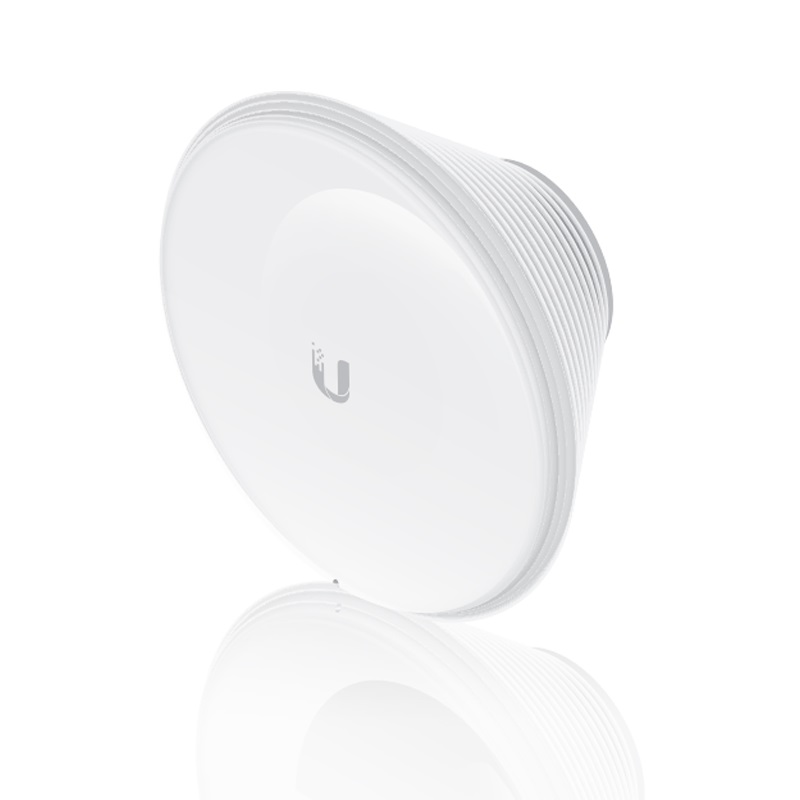

UBIQUITI PRISM AP airMAX® ac Beamwidth Sector Isolation Antenna Horn 45 degree ( PrismAP-5-45)
Wishlist

UBIQUITI PRISM AP airMAX® ac Beamwidth Sector Isolation Antenna Horn 45 degree ( PrismAP-5-45)

$148.75 inc GST

Manufacturer: Ubiquiti

Stock: BRS:CALL ADL:CALL SYD:CALL MEL:CALL PER:CALL

Out of stock

SKU: NHU-PRISMAP-5-45 Categories: ,

Ubiquiti airMAX PrismStation Horn

SKU: Horn-5-45

Description: 5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging from 30° to 90°.

Tech Specs: Click Here

Features:
•Improved beam shaping
•Enhanced co-location performance
•Single button release for ease of changing antennas
•Compatible with airFiber, LTU and airMAX radios





Why Choose This?

The Ubiquiti HORN-5-45 is a high-performance 5 GHz beamwidth horn antenna delivering 15.5 dBi gain with a precise 45° beamwidth, ideal for sector coverage in airMAX ac PtMP networks. Its symmetrical dual-linear polarization and 17 dB cross-pol isolation enable superior co-location performance, minimizing interference in dense deployments. Compatible with PrismStation, IsoStation, and airFiber LTU radios, it offers modular beam shaping for optimized wireless infrastructure.

Key Features

  • 45° symmetrical beamwidth – Provides focused sector coverage for targeted PtMP client distribution without spillover.
  • 15.5 dBi gain – Delivers strong signal strength for reliable long-range connections in 5 GHz band.
  • Dual-linear polarization with 17 dB cross-pol isolation – Enhances interference rejection for high-density co-location.
  • Modular quick-release design – Easily interchangeable with other Horn-5 series for flexible beam shaping.
  • Rugged construction – Withstands 200 km/h winds, ensuring durability in harsh outdoor environments.

Full Specifications

Category Details
Manufacturer Ubiquiti
Model / SKU HORN-5-45 / PrismAP-5-45
Dimensions Ø 175 x 96 mm (6.9 x 3.78″)
Weight 1.34 kg (3 lb)
Supported Frequency Range 5.15 – 5.85 GHz
Gain 15.5 dBi
HPOL Beamwidth 45°
VPOL Beamwidth 45°
Elevation Beamwidth 45°
Maximum VSWR 1.7:1
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
Wind Survivability 200 km/h (125 mph)
Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Compatibility IsoStation IS-5AC, IS-M5; PrismStation PS-5AC; airFiber LTU AF-LTU

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

  • Q: What radios is the HORN-5-45 compatible with? It is compatible with IsoStation IS-5AC and IS-M5, PrismStation PS-5AC, and airFiber LTU AF-LTU via quick-release mount.
  • Q: What is the beamwidth and gain of this antenna? It features a 45° HPOL, VPOL, and elevation beamwidth with 15.5 dBi gain for precise sector coverage.
  • Q: Does it support dual polarization? Yes, it uses dual-linear polarization with 17 dB cross-pol isolation for better interference rejection.
  • Q: What are the environmental ratings? Wind survivability up to 200 km/h (125 mph) and wind loading of 56 N at that speed, suitable for outdoor use.
  • Q: Is it interchangeable with other horn antennas? Yes, part of the Horn-5 series (30° to 90° options) with modular design for easy swapping on compatible radios.
Weight 0.96 kg
Dimensions 202 × 214 × 124 mm
Product Create Date

19/06/2017
Web LinkVisit Manufacturer Page →
ManufacturerUbiquiti
Warranty12
Manufacturer SKUHORN-5-45
Opt AccessoryNHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-PS-5AC, NHU-EXTWAR-UBNT-5YR

Dropship Delivery Info


This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.

www.ozspots.com.au/delivery-from-5-states
