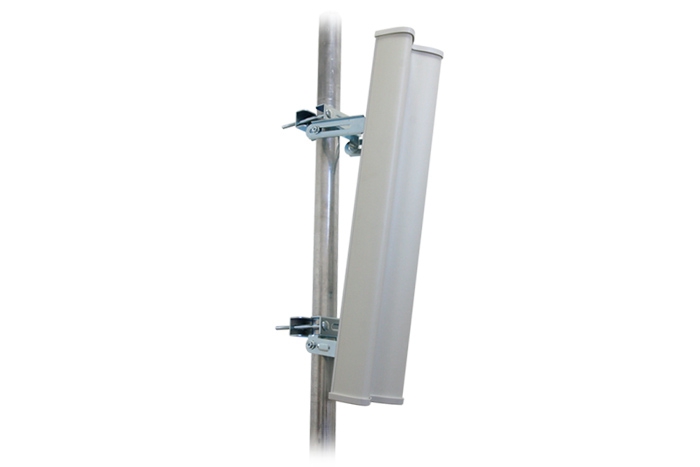

Ubiquiti 2.3-2.7GHz AirMax Base Station Sectorized Antenna 15dBi 120 deg For RocketM2, Mounting Accessories Bbrackets Included
$264.18 inc GST
Manufacturer: Ubiquiti
Availability: BRS:2 ADL:2 SYD:2 MEL:2 WA:2
10 in stock
UbiquitiairMAX 2.4 GHz, 15 dBi, 120º Sector
SKU: AM-2G15-120
Description: 2.4 GHz, 120º, 15 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
airMAX Sector Antenna AM-2G15-120, Advanced RF Isolation Antenna Advanced Carrier-Class PtMP Basestation Antenna. Introducing the Ubiquiti airMAX Sector AM-2G15-120, which continues the evolution of Ubiquiti
Tech Specs: Click Here
Features:
•2×2 dual-polarity performance
•Robust mechanical design for outdoor application use
•Compatible with Rocket Prism 2AC
Why Choose This?
The Ubiquiti AM-2G15-120 is a high-performance 2.4 GHz sector antenna delivering 15-16 dBi gain with a wide 120° beamwidth, perfect for Point-to-MultiPoint (PtMP) base stations in rural or suburban wireless networks. Designed for seamless integration with RocketM2 radios, it includes all necessary mounting hardware and weatherproof RF jumpers for quick deployment and reliable coverage. Its robust construction withstands harsh weather up to 200 km/h winds, ensuring long-term durability and consistent signal performance.
Key Features
- 15-16 dBi gain with 120° azimuth beamwidth – Provides wide sector coverage for connecting multiple clients efficiently.
- 2.3-2.7 GHz frequency range – Optimizes performance in the 2.4 GHz band for long-range PtMP networks.
- Dual-linear polarization and 28 dB cross-pol isolation – Enhances MIMO performance and reduces interference.
- Universal pole mount and RocketM bracket included – Enables tool-free integration and easy installation.
- Weatherproof RF jumpers and 200 km/h wind survivability – Ensures reliable outdoor operation in extreme conditions.
Full Specifications
| Category | Details |
|---|---|
| Model | AM-2G15-120 |
| Frequency Range | 2.3–2.7 GHz |
| Antenna Gain | 15–16 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Elevation Beamwidth | 9° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Polarization | Dual Linear |
| Cross-Pol Isolation | 28 dB Min. |
| Dimensions | 700 x 145 x 93 mm (27.6 x 5.7 x 3.7 in) |
| Weight (Mount Included) | 4 kg (8.8 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 169 N @ 200 km/h (38 lbf @ 125 mph) |
| Mounting | Universal Pole Mount, RocketM Bracket, Weatherproof RF Jumpers Included |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | Yes |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What radio is compatible with the AM-2G15-120? It seamlessly integrates with RocketM2 (and RocketM series) via the included RocketM bracket and weatherproof RF jumpers.
- Q: What is the beamwidth for coverage? HPOL 123° (6 dB), VPOL 118° (6 dB), providing approximately 120° sector coverage for PtMP networks.
- Q: Can it withstand harsh weather? Yes, rated for wind survivability up to 200 km/h (125 mph) with appropriate wind loading capacity.
- Q: What mounting options are included? Universal pole mount, RocketM bracket, U-brackets, pole brackets, clamps, and bolts for poles up to 3 inches diameter.
- Q: Is it suitable for outdoor professional installations? Yes, designed for carrier-class outdoor use, must be professionally installed per Ubiquiti terms, with shielded cabling and grounding.
| Weight | 5.16 kg |
|---|---|
| Dimensions | 198 × 180 × 892 mm |
| Product Create Date | 25/04/2016 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | AM-2G15-120 |
| Opt Accessory | NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR |
Dropship Delivery Info
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
