Ubiquiti airMAX LiteBeam AC 5 GHz Long-Range Station, 450+ Mbps Throughput, 23dBi Gain Antenna, 15+ Km Range,Inludes PoE Injector
$132.09 inc GST
Manufacturer: Ubiquiti
Availability: BRS:33 ADL:17 Jun SYD:17 Jun MEL:2 WA:17 Jun
35 in stock

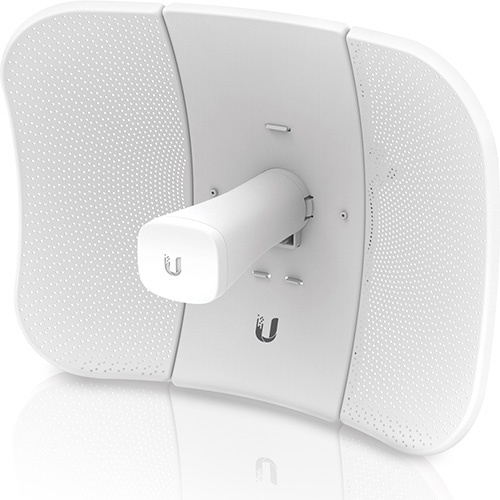

Ubiquiti airMAX LiteBeam 5AC
SKU: LBE-5AC-Gen2
Description: Ultra-lightweight design with proprietary airMAX ac chipset and dedicated management WiFi for easy UISP mobile app support and fast setup.
Tech Specs: Click Here
Features:
•5 GHz, 15+ km link range
•450+ Mbps throughput
•Easy to assemble
Why Choose This?
The Ubiquiti airMAX LiteBeam AC 5 GHz Long-Range Station (LBE-5AC-GEN2) is an ultra-lightweight, cost-effective CPE designed for high-performance point-to-point and point-to-multipoint links over 15+ km. Delivering 450+ Mbps real TCP/IP throughput with a high-gain 23 dBi directional antenna and airMAX ac technology, it ensures reliable connectivity in demanding outdoor environments while minimizing noise interference. Its dedicated management WiFi radio enables quick setup via the UISP mobile app, making deployment fast and efficient for WISPs and network extenders.
Key Features
- 450+ Mbps Throughput – Provides high-speed wireless backhaul for long-range PtP/PtMP links using airMAX ac protocol.
- 23 dBi Antenna Gain – Directional high-gain antenna with InnerFeed technology improves noise immunity and extends range up to 15+ km.
- Dedicated Management WiFi – Separate 2.4 GHz radio allows easy configuration and monitoring via UISP mobile app without disrupting main link.
- Robust Environmental Design – Survives 200 km/h winds and operates from -40 to 70°C, ideal for harsh outdoor installations.
- Low Power Consumption – Only 7W max with included 24V PoE injector, enabling simple passive PoE deployment and cost savings.
Full Specifications
| Category | Details |
|---|---|
| Model | LBE-5AC-GEN2 |

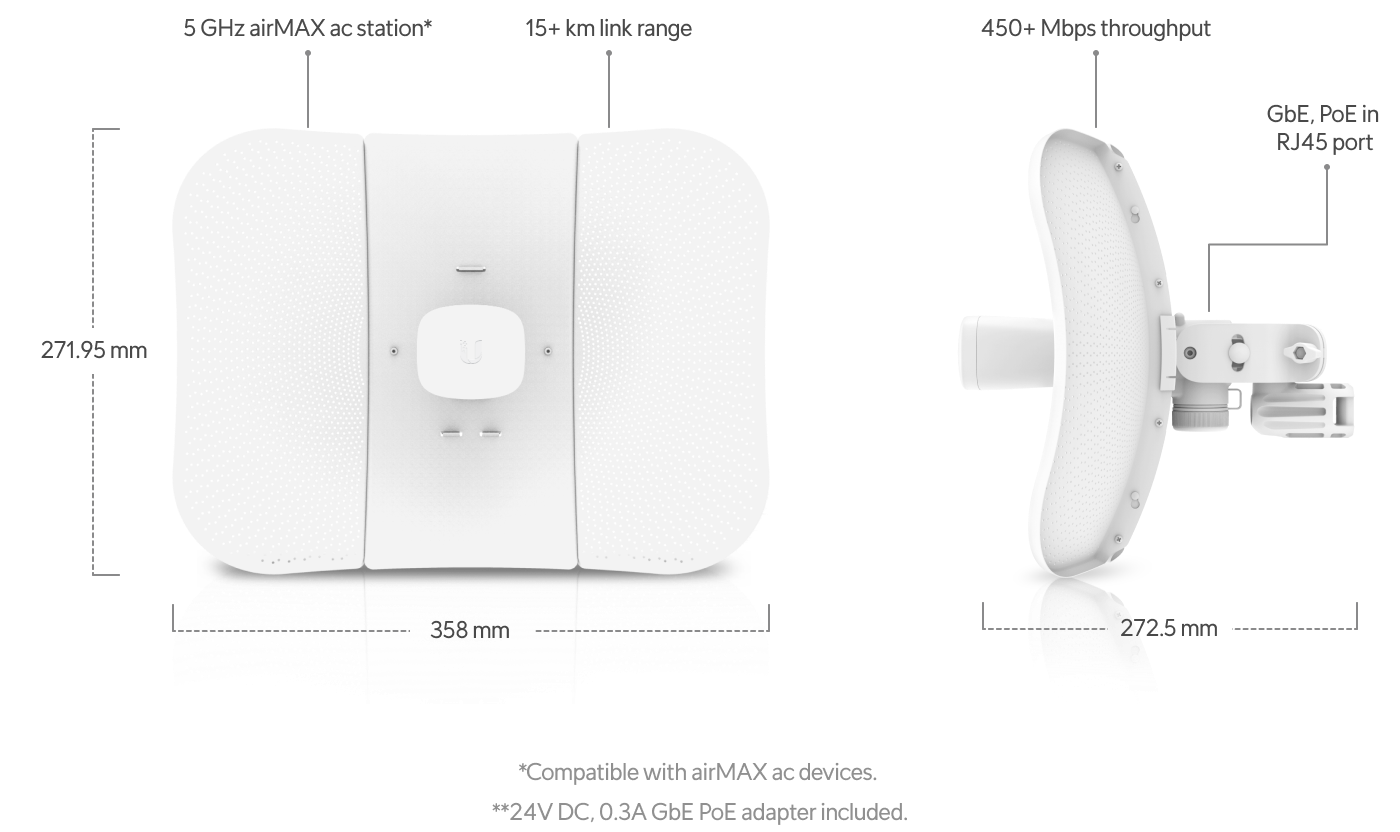

| Dimensions | 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73″) |
| Weight (Without Mount) | 800 g (1.76 lb) |
| Weight (With Mount) | 980 g (2.16 lb) |
| Antenna Gain | 23 dBi |
| Max. Power Output | 25 dBm |
| Max. Power Consumption | 7W |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 24V ± 10% (22–27V DC) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor | MIPS 74Kc |
| Memory | 64 MB DDR2 |
| LEDs | Power, Ethernet |
| Channel Sizes (PtP) | 10/20/30/40/50/60/80 MHz |
| Channel Sizes (PtMP) | 10/20/30/40 MHz |
| Operating Frequency (Worldwide) | 5150 – 5875 MHz |
| Operating Frequency (US) | U-NII-1: 5150-5250; U-NII-2A: 5250-5350; U-NII-2C: 5470-5725; U-NII-3: 5725-5850 MHz |
| Management Radio | 2412 – 2472 MHz (US/CA: 2412 – 2462 MHz) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 275 N @ 200 km/h (61.8 lbf @ 125 mph) |
| ESD/EMP Protection | ±24 kV Contact / Air |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Mounting | Pole-Mounting Kit (Included) |
| Enclosure | Reflector (SGCC 0.6T) / Plastic: PC |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the real-world throughput of the LBE-5AC-GEN2? Up to 450+ Mbps TCP/IP in ideal PtP conditions, but real-world tests show 150-300 Mbps depending on distance, modulation, channel width, and interference.
- Q: What is included in the package? Antenna feed, center/side reflector panels, azimuth/elevation mounts, metal strap, wingnut kit, Gigabit PoE injector (single-pack), power cord, and quick start guide.
- Q: How do I set it up? Connect to the default SSID (LBE-5AC-GEN2:MAC), access web UI at 192.168.1.20, or use UISP mobile app via dedicated management WiFi for configuration.
- Q: What is the maximum range? 15+ km in PtP links with clear line-of-sight, though performance varies with environment; optimize alignment for best results.
- Q: Does it support PtMP mode? Yes, supports airMAX ac PtMP with channel widths up to 40 MHz; ideal for WISP subscriber networks.
| Weight | 1.68 kg |
|---|---|
| Dimensions | 295 × 165 × 130 mm |
| Product Create Date | 14/03/2017 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | LBE-5AC-GEN2 |
| Opt Accessory | NHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR, NHU-POE-24-7W |
