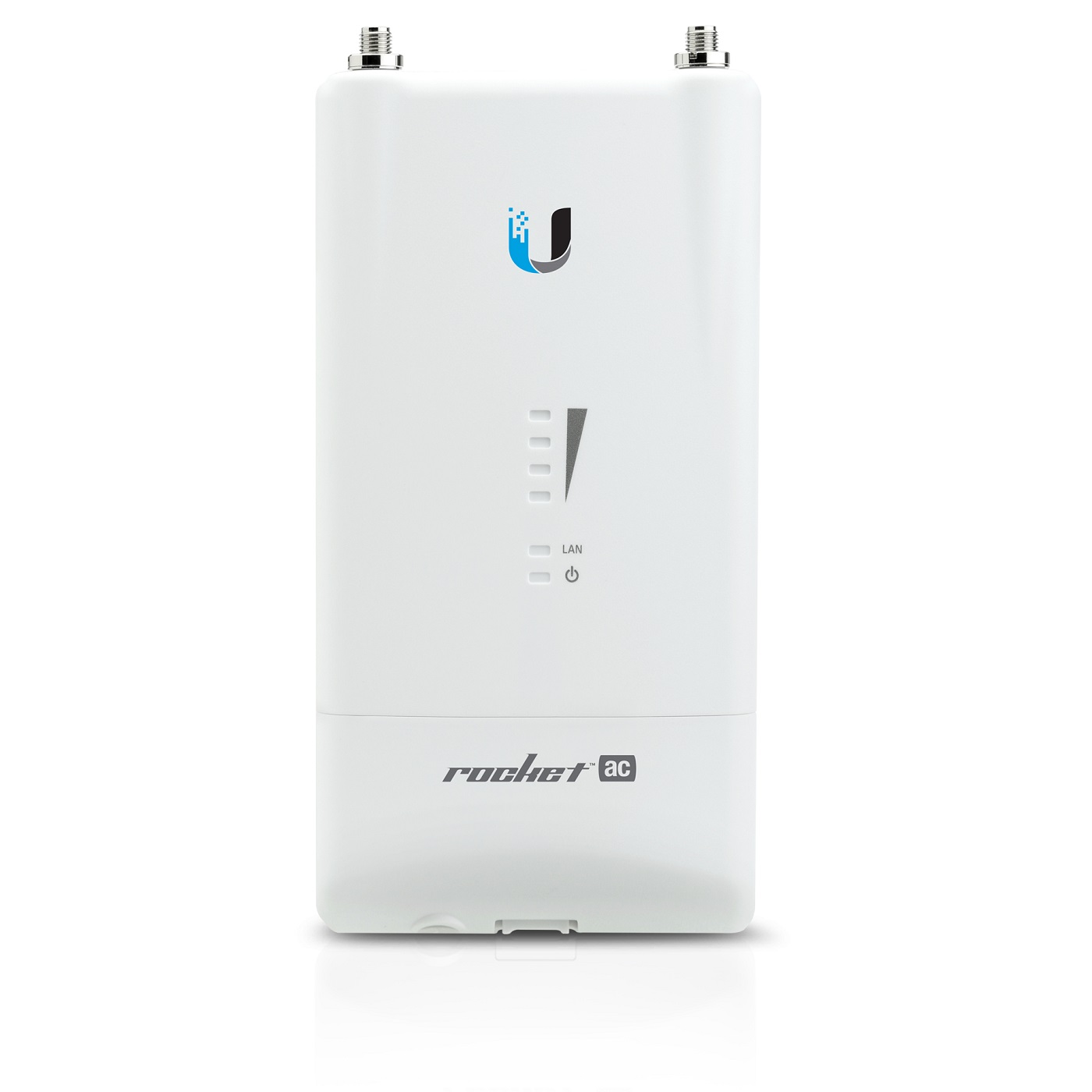

Ubiquiti Rocket 5AC PTmP Lite airMAX AC BaseStation, 500+ Mbps Throughput, 50+ Client Capacity, Dedicated Spectral Analysis Radio
$253.47 inc GST
Manufacturer: Ubiquiti
Availability: BRS:3 ADL:1 SYD:10 MEL:37 WA:4
55 in stock
UbiquitiairMAX Rocket AC Lite
SKU: R5AC-Lite
Description: airMAX AC Technology for up to 500+ Mbps throughput.
The R5AC-Lite Rocket AC features proprietary airMAX® ac technology, the Rocket™5ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance as well as Point-to-MultiPoint (PtMP) functionality.
Tech Specs: Click Here
Features:
•5 GHz frequency band
•500+ Mbps throughput
•50+ client capacity
•Dedicated spectral analysis radio
Why Choose This?
The Ubiquiti Rocket 5AC PTmP Lite airMAX AC BaseStation delivers up to 500+ Mbps throughput, making it ideal for high-performance PtP and PtMP wireless deployments in low to moderate interference environments. With plug-and-play integration into airMAX ac antennas, Gigabit Ethernet, and advanced airMAX ac TDMA technology, it supports scalable networks serving 50+ clients efficiently. Its dedicated management radio for real-time spectral analysis via airView ensures optimal channel selection and minimal noise interference for reliable connectivity.
Key Features
- airMAX AC Technology – Delivers up to 500+ Mbps real TCP/IP throughput with superior TDMA latency and noise immunity.
- PtP and PtMP Support – Versatile for point-to-point backhauls or point-to-multipoint with 50+ client capacity via firmware upgrade.
- Dedicated Spectral Analysis – Built-in management radio enables airView for real-time spectrum scanning and interference identification.
- Plug-and-Play Antenna Integration – Mounts seamlessly on airMAX ac RocketDish or Sector antennas without tools.
- Rugged Outdoor Design – UV-stabilized enclosure with wide temperature range (-40 to 80°C) and ±24kV ESD protection for harsh environments.

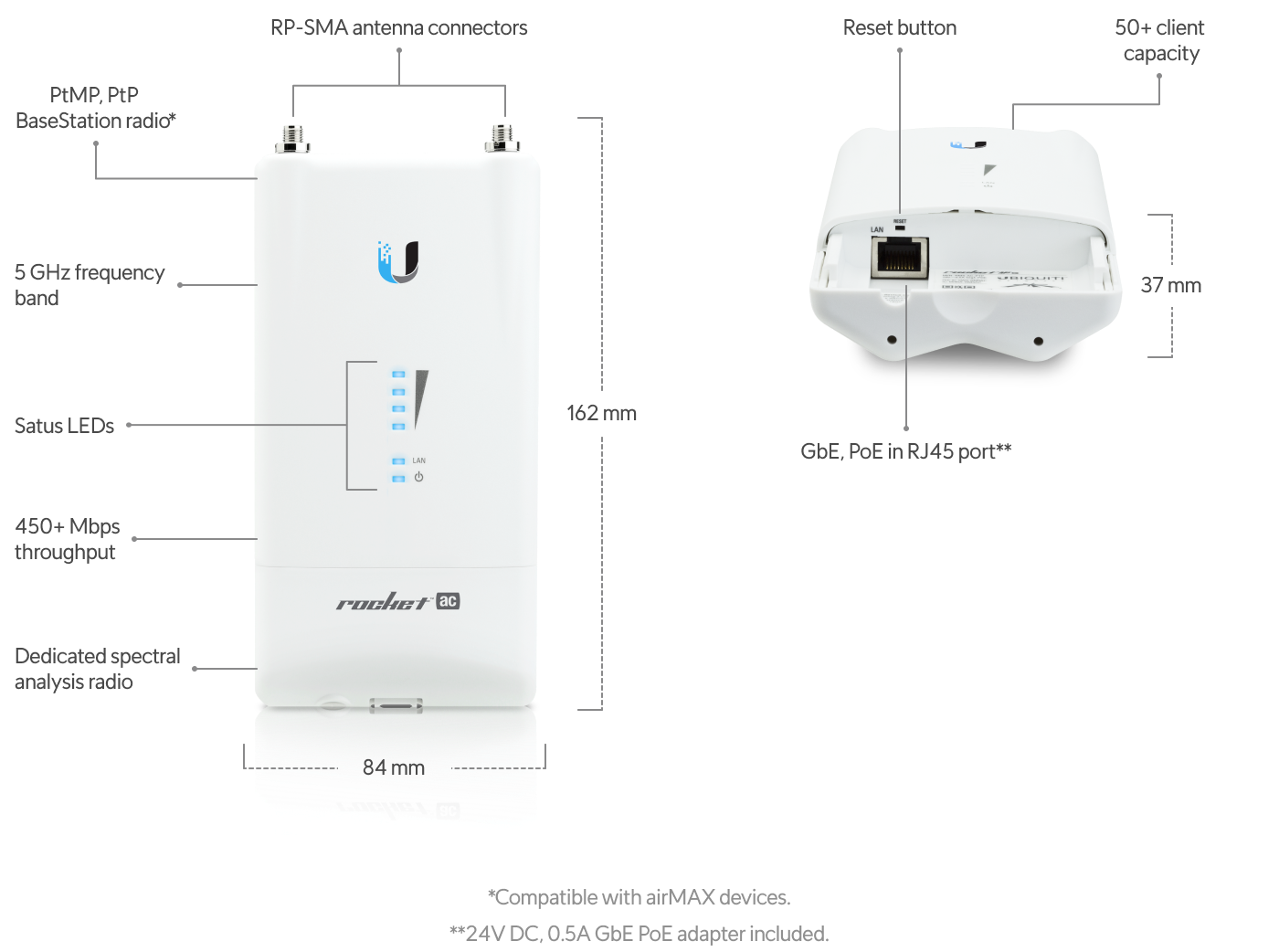

Full Specifications
| Category | Details |
|---|---|
| Dimensions | 162 x 84 x 37 mm (6.4 x 3.3 x 1.5″) |
| Weight | 250 g (8.8 oz) |
| Enclosure Material | Outdoor UV-stabilized plastic |
| Networking Interface | (1) GbE RJ45 port (10/100/1000 Mbps) |
| RF Connectors | (2) RP-SMA (Waterproof) |
| LEDs | Power, LAN, (4) Signal Strength |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2 SDRAM, 16 MB NOR FLASH |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 Return) |
| Supported Voltage Range | 20–27 VDC |
| Max. Power Consumption | 8.5W |
| Operating Frequency | Worldwide: 5150–5875 MHz (US: U-NII-1/2A/2C/3 bands) |
| Output Power (Max.) | Up to 27 dBm |
| Channel Sizes (PtP) | 10/20/30/40/50/60/80 MHz |
| Channel Sizes (PtMP) | 10/20/30/40 MHz |
| Operating Temperature | -40 to 80°C (-40 to 176°F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | Air/Contact ±24kV |
| Shock and Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC, NDAA Compliant |
| Throughput | Up to 500+ Mbps (80 MHz channel) |
| Operating Modes | Access Point (PtP/PtMP), Station |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: Does the R5AC-Lite support PtMP functionality? Yes, it launches with PtP support and adds PtMP capability via firmware upgrade to airOS v7.1 or higher, suitable for 50+ clients.
- Q: Can it connect to standard WiFi devices like laptops or phones? No, it uses proprietary airMAX ac protocol for PtP/PtMP with Ubiquiti CPEs, not standard WiFi clients.
- Q: What is the spectral analysis feature? A dedicated management radio powers airView spectrum analyzer for real-time noise scanning, waterfall, and waveform views to optimize channels.
- Q: How do I reset the device to factory defaults? Press and hold the Reset button for over 10 seconds while powered on, or use the remote reset on the PoE adapter.
- Q: What antennas are compatible? Pairs optimally with airMAX ac antennas like RocketDish ac (PtP) or Sector antennas (PtMP) via built-in Rocket mount.
| Weight | 0.58 kg |
|---|---|
| Dimensions | 200 × 126 × 96 mm |
| Product Create Date | 25/04/2016 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | R5AC-Lite |
| Opt Accessory | NHU-POE-24-12WG, NHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR |
