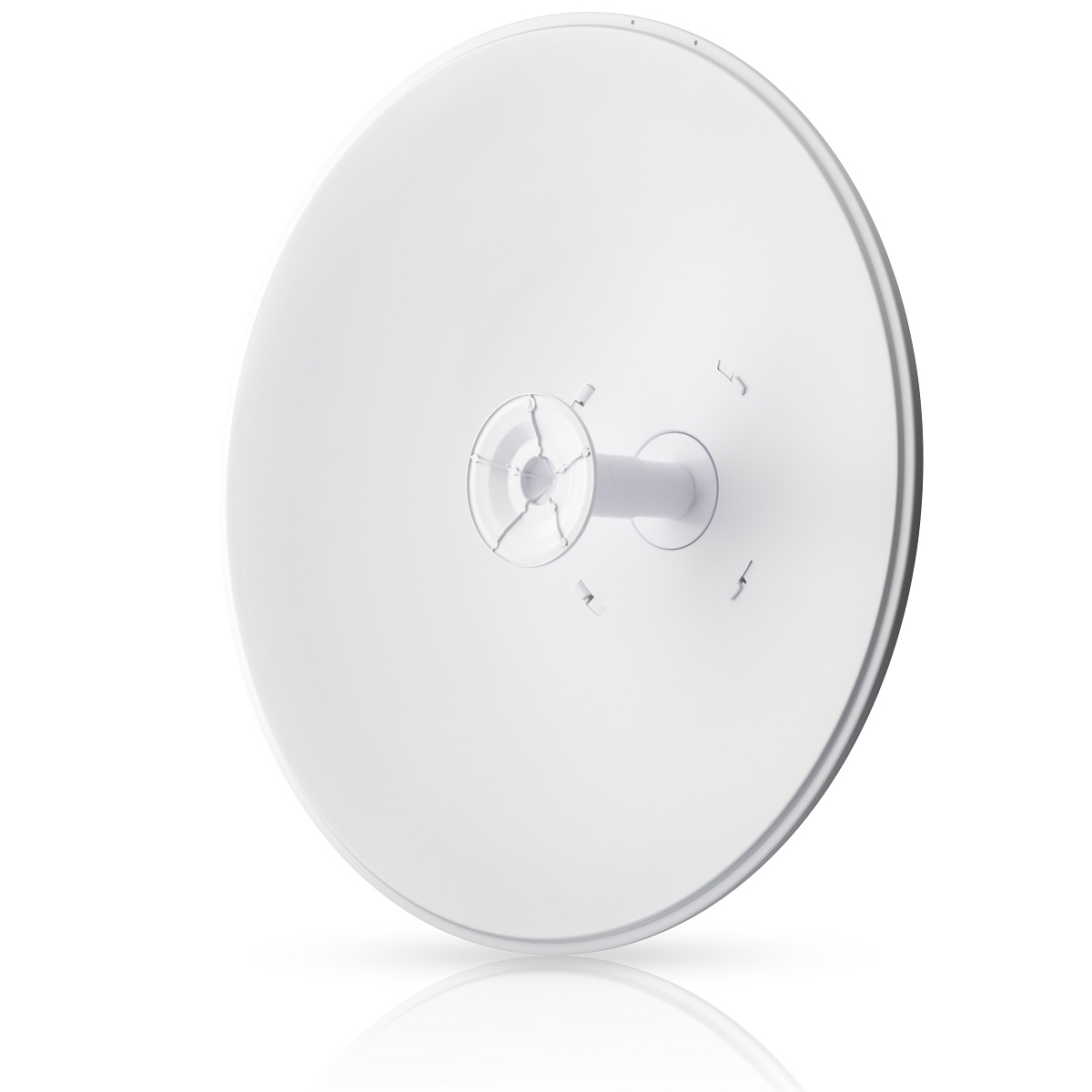

Ubiquiti 5GHz airFiber Dish 30dBi Slant 45 Degree Signal Angle For optimum interference avoidance, Universal Pole Mount, Weatherproof
$222.53 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock
Ubiquiti airFiber X 5 GHz, 30 dBi, Slant 45
SKU: AF-5G30-S45
Tech Specs: Click Here
Description:
5 GHz, 30 dBi antenna ideal for long range Point-to-Point (PtP) links. Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
Features:
•2×2 dual-polarity performance
•Robust mechanical design for outdoor application use
•Secure pole-mounting
•Compatible with airFiber X radios
•Weatherproof RF Connectors
Why Choose This?
The Ubiquiti AF-5G30-S45 is a high-performance 5 GHz airFiber dish antenna delivering 30 dBi gain for reliable long-range point-to-point wireless links. Its slant 45° dual-linear polarization design optimizes interference avoidance, making it ideal for carrier backhauls and dense deployments. Paired with universal pole mount and weatherproof construction, it ensures robust outdoor performance in harsh conditions.
Key Features
- 30 dBi high gain – Enables extended range and strong signal for PtP bridges up to 100+ km with compatible radios.
- Slant 45° dual-linear polarization – Minimizes interference in co-located setups for superior noise isolation.
- Universal pole mount included – Simplifies installation on various pole sizes without special tools.
- Weatherproof RF jumpers and bracket – Provides seamless integration with airFiber X radios and endures extreme weather.
- Low sidelobes and 30 dB F/B ratio – Reduces interference from nearby transmitters, enhancing link stability.
Full Specifications
| Category | Details |
|---|---|
| Model | AF-5G30-S45 |
| Frequency Range | 5.1 – 5.9 GHz (4.9 – 5.9 GHz in some specs) |
| Gain | 30 dBi (26 dBi at 4.9 GHz) |
| Max. VSWR | 1.6:1 |
| Polarization | Dual Linear, Slant 45° |
| F/B Ratio | 30 dB |
| Beamwidth (+45° / -45°) | 5.8° (3 dB) |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 650 x 650 x 386 mm (25.6 x 25.6 x 15.2″) |
| Weight (with Mount) | 7.4 kg (16.31 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 790 N @ 200 km/h (178 lbf @ 125 mph) |
| Mounting | Universal Pole Mount, airFiber Radio Bracket, Weatherproof RF Jumpers Included |
| NDAA Compliant | Yes |
| Compatible Radios | airFiber 5X, 5XHD, X models |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What airFiber radios is the AF-5G30-S45 compatible with? Compatible with airFiber 5X, 5XHD, and other X series radios via included bracket and weatherproof RF jumpers.
- Q: What is the purpose of the slant 45° design? It provides dual-linear polarization at +45°/-45° to optimize interference avoidance in co-location and multi-link environments.
- Q: Can it withstand high winds? Yes, rated for wind survivability up to 200 km/h (125 mph) with wind loading of 790 N.
- Q: Does it include mounting hardware? Yes, features universal pole mount, airFiber radio bracket, and weatherproof RF jumpers for easy installation.
- Q: Is a radome included or optional? Radome not included; optional IsoBeam-620 accessory available for enhanced noise immunity and RF shielding.
| Weight | 7.4 kg |
|---|---|
| Dimensions | 650 × 650 × 386 mm |
| Product Create Date | 25/04/2016 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | AF-5G30-S45 |
| Opt Accessory | NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR |
