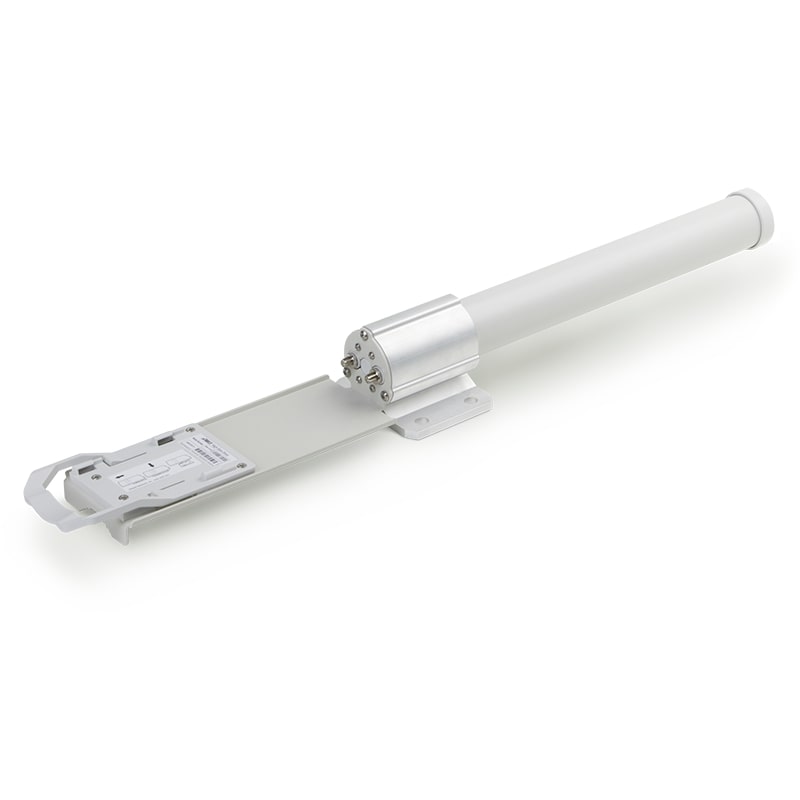

Ubiquiti 5GHz AirMax Dual Omni Directional 10dBi Antenna – All Mounting Accessories Brackets Included
$216.58 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:30 Jun WA:0
Out of stock
Ubiquiti airMAX 5 GHz, 10 dBi Omni
SKU: AMO-5G10
Tech Specs: Click Here
Description: 5 GHz, 10 dBi carrier-class 2×2 dual-polarity MIMO omnidirectional antenna.
Features：
•2×2 dual-polarity MIMO
•360° coverage
•Easy to assemble
•Compatible with RocketPrism
Why Choose This?
The Ubiquiti AMO-5G10 is a carrier-class 5 GHz, 10 dBi 2×2 dual-polarity MIMO omnidirectional antenna designed for seamless integration with RocketM radios, delivering powerful 360° coverage in point-to-multipoint networks. It excels in outdoor WISP deployments, providing reliable long-range performance with all essential mounting hardware included for quick setup. Built to withstand harsh weather up to 200 km/h winds, it ensures durable, high-speed wireless connectivity.
Key Features
- 10 dBi gain with 360° omni coverage – enables broad point-to-multipoint distribution over wide areas.
- 2×2 dual-polarity MIMO and dual-linear polarization – supports high-throughput data rates with 25 dB min. cross-pol isolation.
- Compact and lightweight at 680 g – easy to handle and install on poles or towers.
- Includes universal pole mount, RocketM bracket, and weatherproof RF jumpers – simplifies deployment with RocketM radios.
- Rugged construction with 200 km/h wind survivability – performs reliably in extreme outdoor conditions.
Full Specifications
| Category | Details |
|---|---|
| Model | AMO-5G10 |
| Frequency Range | 5.45–5.85 GHz |
| Antenna Gain | 10 dBi |
| Elevation Beamwidth | 12° |
| Max. VSWR | 1.6:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 25 dB Min. |
| Downtilt | 4° |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | Yes |

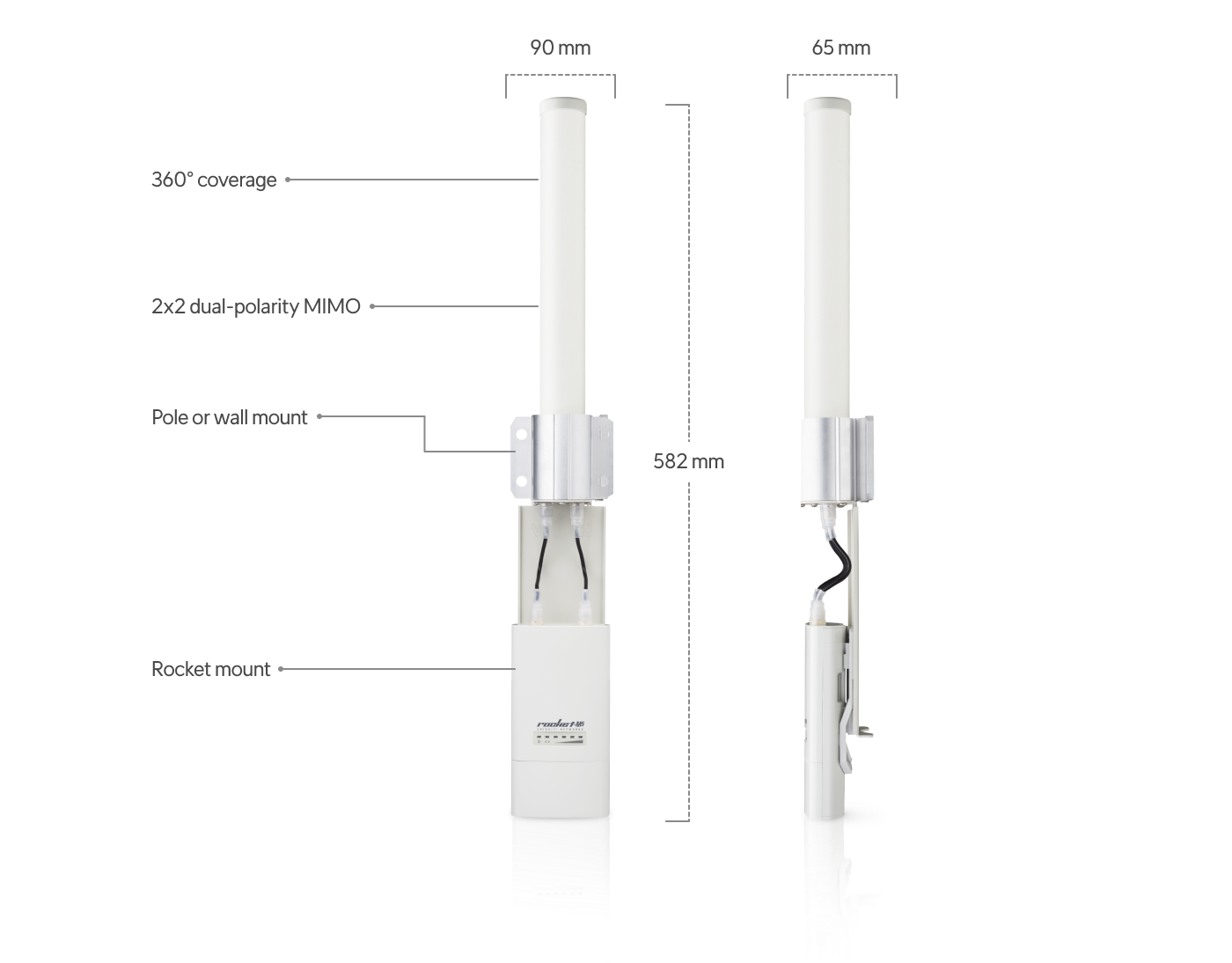

| Dimensions (without mount) | 582 x 90 x 65 mm (22.9 x 3.5 x 2.6″) |
| Weight (without mount) | 680 g (1.5 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 44.5 N at 160 km/h (10 lbf at 100 mph) |
| Mounting Hardware Included | Universal Pole Mount, RocketM Bracket, Weatherproof RF Jumpers (2 RP-SMA connectors) |
| Compatibility | RocketM5 / RocketM5 GPS (Rocket sold separately) |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What radios is the AMO-5G10 compatible with? Designed for seamless integration with RocketM5 or RocketM5 GPS radios (sold separately); snaps directly into the included RocketM bracket.
- Q: Does it include mounting accessories? Yes, comes with universal pole mount, RocketM bracket, two weatherproof RF jumpers, pole clamps, carriage bolts, and serrated flange nuts.
- Q: What is the wind resistance rating? Survives winds up to 200 km/h (125 mph) with a wind loading of 44.5 N at 160 km/h.
- Q: Is it suitable for point-to-multipoint setups? Yes, the 360° omnidirectional pattern and 12° elevation beamwidth make it ideal for broad coverage in PtMP networks.
- Q: What connectors does it use? Two weatherproof RP-SMA connectors for direct connection to compatible RocketM radios.
| Weight | 1.38 kg |
|---|---|
| Dimensions | 100 × 150 × 638 mm |
| Product Create Date | 25/04/2016 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | AMO-5G10 |
| Opt Accessory | NHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR |
