Ubiquiti IsoStation 5GHz AC, 450+ Mbps, Interchangable Antenna Horns, Built in Management Radio, Improved Noise Immunity
$243.95 inc GST
Manufacturer: Ubiquiti
Availability: BRS:1 ADL:1 SYD:1 MEL:9 WA:1
13 in stock

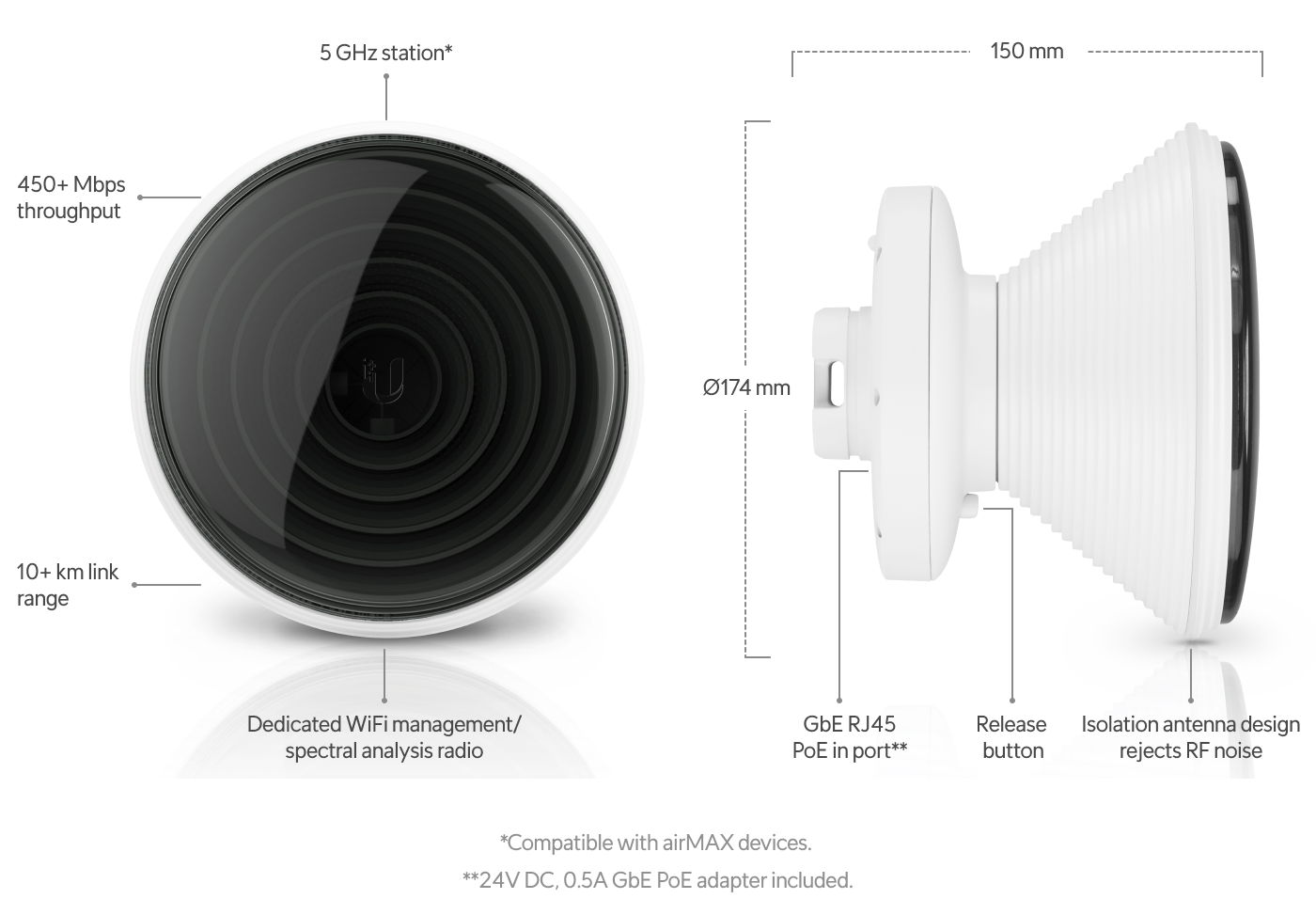

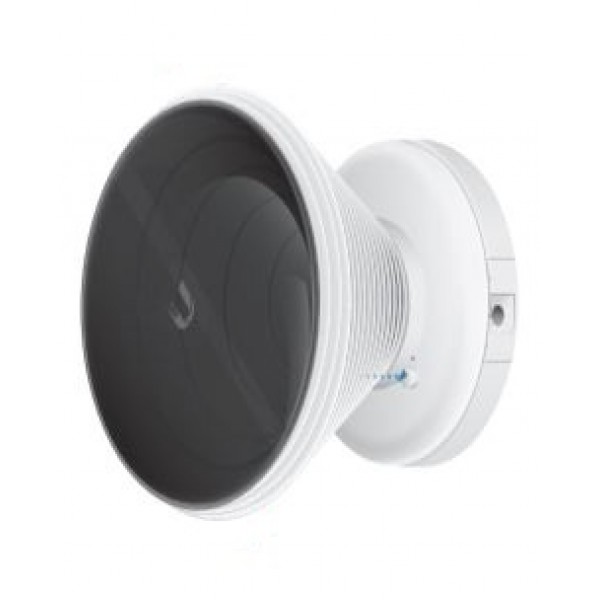

Ubiquiti airMAX IsoStation 5AC
SKU: IS-5AC
Tech Specs: Click Here
Description: Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an interchangeable horn antenna.
Features:
• 5 GHz, 10+ km link range
• 450+ Mbps throughput
• Isolation antenna design rejects RF noise
• Dedicated spectral analysis radio
Why Choose This?
The Ubiquiti IsoStation 5AC is a high-performance 5 GHz airMAX ac CPE designed for reliable PtP and PtMP wireless bridges, delivering up to 450+ Mbps real TCP/IP throughput in congested urban environments. Its interchangeable high-isolation horn antennas optimize beam shaping and noise immunity, enabling superior co-location and scalability for WISPs and network operators. With a dedicated management radio, all-metal shielded design, and robust surge protection, it ensures stable, interference-resistant connections for demanding outdoor deployments.
Key Features
- Interchangeable Horn Antennas – Customizable beamwidths (30°, 45°, 60°, 90°) for precise beam shaping and enhanced co-location in dense RF environments.
- airMAX ac Technology – Delivers 450+ Mbps throughput with 2×2 MIMO and advanced TDMA for superior performance over long distances.
- Dedicated Management Radio – 2.4 GHz Wi-Fi for easy setup, monitoring, and spectrum analysis without interrupting the main link.
- Improved Noise Immunity – Tailored antenna patterns filter spurious RF emissions, ideal for urban and high-interference areas.
- All-Metal Shielded Design – Provides rugged durability, ±24 kV ESD protection, and enhanced surge protection for reliable outdoor use.
Full Specifications
| Category | Details |
|---|---|
| Dimensions (with horn) | 174 x 174 x 150 mm (6.85 x 6.85 x 5.91″) |
| Dimensions (without horn) | 131 x 131 x 65 mm (5.16 x 5.16 x 2.56″) |
| Weight (with horn) | 725.7 g (1.6 lb) |
| Weight (without horn) | 408.2 g (0.9 lb) |
| Mounting | Pole-Mount (kit included) |
| Wind Loading | 36 N @ 200 km/h (8.09 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Max. Power Consumption | 8.5 W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20–27 VDC |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor | MIPS 74 Kc |
| Memory | 64 MB DDR2 |
| LED | (1) Power |
| Default Antenna Gain | 14 dBi (45° horn) |
| Default Beamwidth | 45° |
| Operating Frequency (Worldwide) | 5150–5875 MHz |
| Operating Frequency (USA) | U-NII-1: 5150–5250; U-NII-2A: 5250–5350; U-NII-2C: 5240–5725; U-NII-3: 5725–5850 MHz |
| Management Radio (Worldwide) | 2412–2472 MHz |
| Max. TX Power | 25 dBm |
| Throughput | 450+ Mbps (real TCP/IP) |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% non-condensing |
| ESD/EMP Protection | ±24 kV Contact/Air |
| Certifications | FCC, IC, CE; NDAA Compliant |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What antennas are compatible with the IS-5AC? Compatible horn antennas include the default 45° (14 dBi), plus optional Horn-5-30 (19 dBi), Horn-5-60 (16 dBi), Horn-5-90 (13 dBi); also pairs with U-OMT-Dish (27 dBi) for extended range.
- Q: What is the maximum throughput? Up to 450+ Mbps real TCP/IP throughput using airMAX ac 2×2 MIMO technology.
- Q: Does it support PtMP deployments? Yes, ideal as CPE in airMAX PtMP networks with APs like PrismStation 5AC, or PtP links.
- Q: What power method does it use? Passive PoE (24V, pairs 4,5+ and 7,8 return) via included Gigabit PoE adapter; supports 20–27 VDC range.
- Q: Is it suitable for noisy urban environments? Yes, interchangeable high-isolation horns provide superior noise immunity by filtering in-band and out-of-band RF interference.
| Weight | 1.38 kg |
|---|---|
| Dimensions | 202 × 220 × 178 mm |
| Product Create Date | 14/03/2017 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | IS-5AC |
| Opt Accessory | NHU-POE-24-12WG, NHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR |
