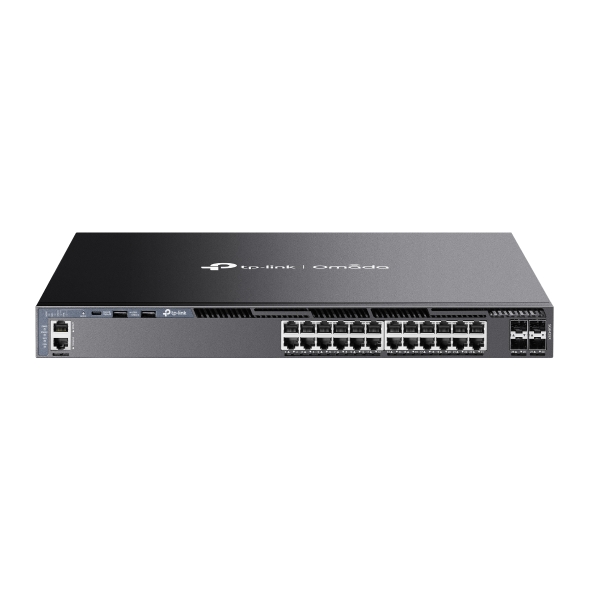

TP-Link SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots, 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Type C USB C
$2,297.89 $2,228.95 inc GST
Manufacturer: TP-LINK
Availability: BRS:0 ADL:0 SYD:1 MEL:0 WA:0
1 in stock
TP-Link SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots
• 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
• 128 Gbps switching capacity per unit
• Physical stacking for built-in redundancy and performance
• L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Security Strategies: ACL, Port Security, DoS Defend, 802.1X
• Highly Available with two internal fixed power supplies, VRRP, and ERPS
• Centralised cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON
Warranty Period: 5-Year
Why Choose This?
The TP-Link SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch delivers high-performance networking for SMBs and enterprises with 24 Gigabit RJ45 ports and 4× 10G SFP+ slots, offering 128 Gbps switching capacity per unit. Its physical stacking up to 8 units ensures scalability, redundancy, and seamless expansion while advanced L3 routing like OSPF, RIP, VRRP, and multicast support optimizes traffic flow. Dual internal redundant power supplies and Omada SDN centralized cloud management provide reliability and effortless deployment.
Key Features
- 24× Gigabit RJ45 + 4× 10G SFP+ Slots – High-speed connectivity for demanding networks with 128 Gbps capacity
- Physical Stacking up to 8 Units – Enables unified management, redundancy, and up to 80 Gbps stack bandwidth
- L3 Routing Protocols (RIP, OSPF, VRRP, ECMP) – Efficient dynamic routing and load balancing for complex topologies
- Advanced Security (ACL, 802.1X, DoS Defend) – Protects against threats with port security and IP-MAC binding
- Omada SDN Integration – Zero-touch provisioning, cloud management, and batch configuration for easy scalability
Full Specifications
| Category | Details |
|---|---|
| Interfaces | 24× 10/100/1000 Mbps RJ45 Ports, 4× 10G SFP+ Slots, 1× RJ45 Management Port, 1× RJ45 Console Port, 1× USB Type-C Console Port, 2× USB 2.0 Ports |
| Processor | Quad-Core ARM @1.5GHz CPU, 4GB DDR4 DRAM, 2× 4MB Nor + 8GB eMMC Flash |
| Switching Capacity | 128 Gbps per unit |
| Packet Forwarding Rate | 95.2 Mpps |
| MAC Address Table | 32K entries |
| Packet Buffer | 3 MB |
| Jumbo Frame | 9 KB |
| Stacking | Up to 8 units (standalone mode), 4 units (controller mode); Up to 80 Gbps bandwidth using 10G SFP+ ports; Compatible with SG6428X, SG6654X, SG6428XHP, SG6654XHP |
| L3 Features | Static Routing (1024 IPv4/IPv6), RIP v1/v2, OSPF v2/v3, VRRP v2/v3 (64 groups), ECMP (256 entries), PIM-DM/SM, DHCP Server/Relay |
| Power Supply | 2 internal fixed redundant modules (100-240V AC, 50/60 Hz) |
| Max Power Consumption | 28.36 W (110V/60Hz), 27.56 W (220V/50Hz) |
| Fan | 4 internal fixed fans, Front-to-back airflow |
| Dimensions (W×D×H) | 440 × 380 × 44 mm (17.3 × 15.0 × 1.7 in) |
| Net Weight | 5.29 kg (11.66 lbs) |
| Operating Temperature | -5°C to 50°C @300m (derates above 2000m) |
| MTBF | 614,086 hours @25°C |
| Certifications | CE, FCC, RoHS |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum stacking capacity of the SG6428X? Up to 8 units in standalone mode or 4 units in Omada controller mode, using 10G SFP+ ports for up to 80 Gbps stacking bandwidth.
- Q: Does it support L3 routing protocols? Yes, includes RIP v1/v2, OSPF v2/v3, VRRP, ECMP, static routing (up to 1024 entries), and PIM-DM/SM for multicast.
- Q: What management options are available? Omada SDN cloud-based controller for centralized management, Zero-Touch Provisioning, plus standalone web GUI, CLI, SNMP v1/v2c/v3, and RMON.
- Q: Is there redundant power supply? Yes, two internal fixed redundant power supply modules for high availability.
- Q: What SFP+ modules are compatible? Supports TP-Link SFP+ modules like SM5110-LR (10km single-mode), SM5110-SR (300m multi-mode); limited to two 10G RJ45 SFP+ modules with spacing.
| Weight | 5.22 kg |
|---|---|
| Dimensions | 605 × 565 × 175 mm |
| Product Create Date | 08/02/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | SG6428X |
| Opt Accessory | NHTL-OC200, NHTL-OC300, CSP-LIC-OCC-3YR, CSP-LIC-OCC-5YR |
