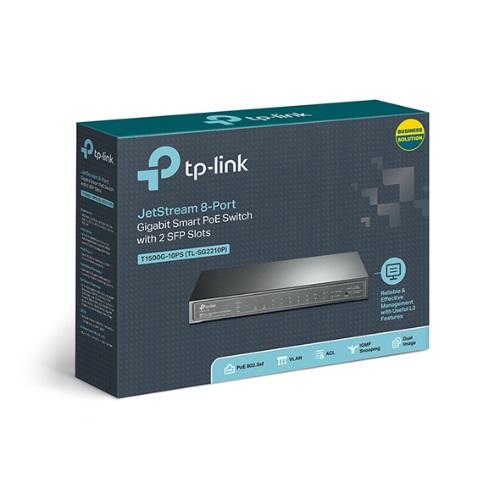

TP-Link SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots L2/L3/L4 QoS and IGMP Snooping WEB/CLI Managed 53W, Fanless, Omada SDN

TP-Link T1500G-10PS (TL-SG2210P) JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP Slots

Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features
Gigabit Ethernet connections on all ports provide full speed of data transferring
Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
WEB/CLI managed modes, SNMP, RMON bring abundant management features
Dual Firmware Image improves reliability and up-time of your network

ARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports
Port8 obtain power from PoE source
(Auto-Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100~240VAC, 50/60Hz
External Power Adapter(Output: 48VDC/1.25A)
Power Consumption Maximum (PoE on): 64.9W
Maximum (PoE off): 9.9W
PoE Ports (RJ45) Standard: 802.3af compliant
PoE Ports: 8 Ports
Power Supply: 53W
Dimensions ( W x D x H ) 209 * 126 * 26mm
Max Power Consumption 9.92W (220V/50Hz with no PD connected)
64.89W (110V/60Hz with 53W PD connected)
Max Heat Dissipation 33.85 BTU/h (with no PD connected)
221.40 BTU/h (with 53W PD connected)

PERFORMANCE
Bandwidth/Backplane 20Gbps
Packet Forwarding Rate 14.9Mpps
MAC Address Table 8K
Jumbo Frame 9KB

Why Choose This?

The TP-Link SG2210P is a versatile 8-Port Gigabit Smart PoE+ Switch with 2 SFP slots, designed for small to medium businesses seeking reliable power and data delivery to devices like IP cameras and access points. With a 61W PoE budget, fanless operation for silent performance, and Omada SDN integration for centralized cloud management, it ensures seamless scalability and advanced features like L2/L3/L4 QoS and IGMP Snooping. Its durable metal casing and easy WEB/CLI management make it an efficient, future-proof networking solution.

Key Features

• 8 Gigabit PoE+ ports (802.3af/at) with 61W budget – Powers up to 8 devices like APs and cameras without extra adapters, up to 30W per port.
• 2 Gigabit SFP slots – Enables fiber uplinks for extended range and high-speed backbone connections.
• Omada SDN compatible – Allows centralized cloud management via app or controller for easy monitoring and configuration.
• L2/L3/L4 QoS and IGMP Snooping – Prioritizes voice/video traffic and optimizes multicast for smooth AV streaming.
• Fanless design with metal housing – Ensures silent, reliable operation in noise-sensitive environments with desktop/wall-mount flexibility.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: What is the total PoE power budget? 61W total, supporting up to 30W per port on 8 PoE+ ports compliant with IEEE 802.3af/at.
• Q: Is the switch fanless? Yes, it features a fanless design for silent operation and improved reliability.
• Q: Does it support Omada SDN? Yes, fully compatible with Omada SDN for centralized cloud management, batch configuration, and monitoring.
• Q: What management interfaces are available? WEB-based GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3, and RMON for comprehensive control.
• Q: Can SFP slots be used for fiber connectivity? Yes, the 2 Gigabit SFP slots support fiber modules for long-distance uplinks up to 20km depending on the module.
