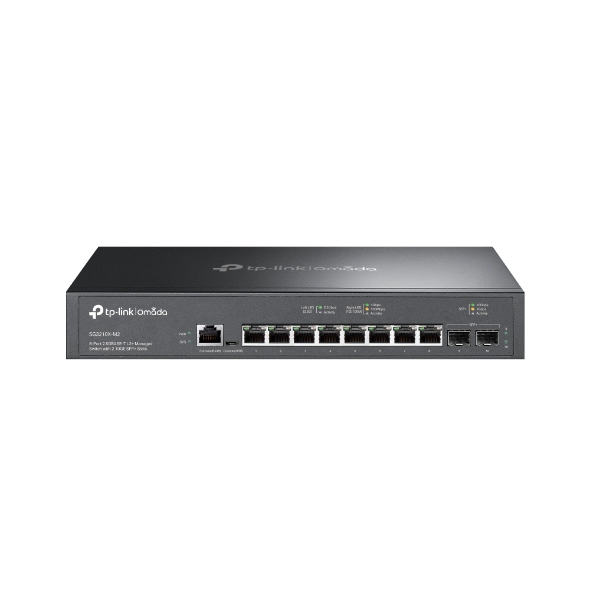

TP-Link SG3210X-M2 Omada 8-Port 2.5GBASE-T L2+ Managed Switch with 2 10GE SFP+ Slots by Omada SDN
$442.68 $429.40 inc GST
Manufacturer: TP-LINK
Availability: BRS:9 ADL:1 SYD:0 MEL:4 WA:1
15 in stock
TP-Link SG3210X-M2 Omada 8-Port 2.5G L2+ Managed Switch
• 2.5 Gbps Speeds: 8× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices.
• 10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Warranty Period: 5-Year
Why Choose This?
The TP-Link SG3210X-M2 Omada 8-Port 2.5GBASE-T L2+ Managed Switch delivers blazing-fast multi-gigabit speeds with 8x 2.5G RJ45 ports and 2x 10G SFP+ slots, unlocking the full potential of WiFi 7/6E/6 APs, NAS, and high-bandwidth devices for seamless 4K streaming and gaming. Integrated into Omada SDN, it offers centralized cloud management, zero-touch provisioning, and advanced L2+ features like static routing for efficient traffic handling and robust security. Its fanless, rack-mountable design ensures silent, reliable operation in any environment.
Key Features
- 8x 2.5GBASE-T RJ45 Ports – Supports 100/1000/2500 Mbps auto-negotiation for high-speed connections to modern devices without bottlenecks.
- 2x 10GE SFP+ Slots – Provides non-blocking 10G uplinks for lightning-fast backbone links to servers or other switches.
- Omada SDN Integration – Enables centralized cloud management, zero-touch provisioning, and intelligent monitoring via app or web.
- 80 Gbps Switching Capacity – Handles heavy traffic loads with 59.52 Mpps forwarding rate and 16K MAC table for enterprise performance.
- Fanless Design – Ensures silent operation and energy efficiency with low 15W max power consumption in a durable metal case.
Full Specifications
| Category | Details |
|---|---|
| Interface | 8× 2.5 Gbps RJ45 Ports (100/1000/2500 Mbps), 2× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Flash | 32 MB |
| DRAM | 256 MB |
| Fan Quantity | Fanless |
| Power Supply | 100-240 V AC ~ 50/60 Hz |
| Max Power Consumption | 15.0 W (110V/60Hz); 15.3 W (220V/50Hz) |
| Standby Power Consumption | 6.0 W |
| Max Heat Dissipation | 51.18 BTU/h (110V/60Hz) |
| Dimensions (W x D x H) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Net Weight | 1.28 kg (2.82 lbs) |
| Mounting | Rack Mountable / Desktop |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| MTBF | 340,091 hours @ 25°C |
| Certifications | CE, FCC, RoHS |
| L3 Features | 32 IPv4/IPv6 Interfaces, 48 Static Routes (IPv4/IPv6) |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: Does the SG3210X-M2 support PoE? No, this is the non-PoE version; for PoE, consider the SG3210XHP-M2 model with 240W PoE budget.
- Q: Is it fanless and silent? Yes, it features a fanless design for completely silent operation and improved reliability.
- Q: What management options are available? Omada SDN cloud/app management, standalone web/CLI/SNMP/RMON, with zero-touch provisioning via Omada Controller.
- Q: Can the 2.5G ports negotiate lower speeds? Yes, supports 100/1000/2500 Mbps auto-negotiation (no 10 Mbps support).
- Q: Does it support static routing? Yes, as an L2+ switch, it supports up to 48 static IPv4/IPv6 routes for efficient internal traffic routing.
| Weight | 2.3 kg |
|---|---|
| Dimensions | 410 × 254 × 82 mm |
| Product Create Date | 27/09/2023 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | SG3210X-M2 |
| Opt Accessory | NHTL-OC200, NHTL-OC300, CSP-LIC-OCC-1YR, CSP-LIC-OCC-3YR, CSP-LIC-OCC-5YR |
