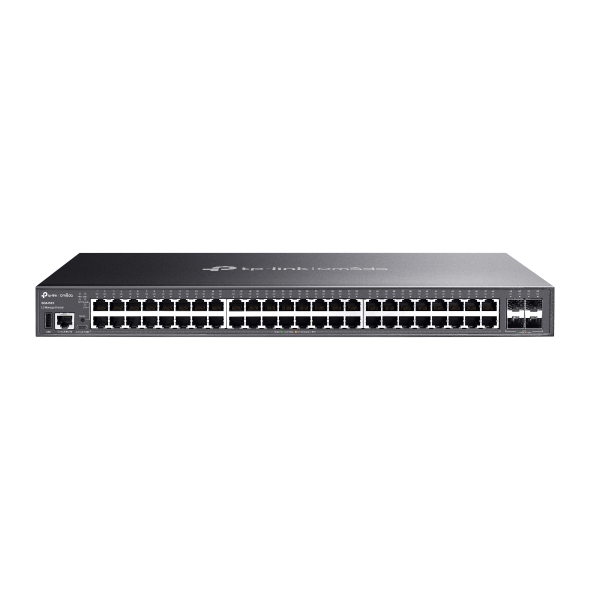

TP-Link SG5452X Omada 48-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots

TP-Link SG5452X Omada 48-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
• 48× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
• 176 Gbps switching capacity per unit
• Physical stacking up to 4 units for built-in redundancy and performance
• L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
• Security strategies: ACL, Port Security, DoS Defend, 802.1X
• ERPS supports rapid protection and recovery in a ring topology
• Centralised cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON

Warranty Period: 5-Year

Why Choose This?

The TP-Link SG5452X Omada 48-Port Gigabit Stackable Lite L3 Managed Switch delivers high-performance networking for SMEs and ISPs with 48 Gigabit RJ45 ports and 4× 10G SFP+ slots for ultra-fast uplinks. Its physical stacking up to 4 units ensures scalability, redundancy, and simplified management, while Lite L3 features like OSPF, RIP, VRRP, and static routing optimize traffic flow without complexity. Fanless design, robust security, and seamless Omada SDN integration provide reliable, quiet operation and centralized cloud control.

Key Features

• 48× Gigabit RJ45 + 4× 10G SFP+ ports – High-density connectivity with 10G uplinks for non-blocking performance to servers and backbone.
• Physical stacking up to 4 units – Enables unified management, redundancy, and up to 80 Gbps stacking bandwidth for scalable deployments.
• Lite L3 routing (OSPF, RIP, VRRP, Static) – Efficient inter-VLAN routing and protocol support reduces reliance on external routers.
• Advanced security (ACL, 802.1X, DoS defense) – Protects network from unauthorized access, attacks, and binding violations.
• Omada SDN cloud management – Zero-touch provisioning, centralized monitoring, and app control simplify deployment and operations.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: How many switches can be stacked with the SG5452X? Up to 4 units using 10G SFP+ ports for built-in redundancy and up to 80 Gbps stacking bandwidth; compatible with select SG54 series models.
• Q: Does it support L3 routing protocols? Yes, includes RIP v1/v2, OSPF v2/v3 (up to 4 processes), VRRP v2/v3, static routing (IPv4/IPv6), and DHCP server/relay.
• Q: Is PoE supported on this model? No, the SG5452X is a non-PoE model; see SG5452XMPP for PoE++ version with 770W budget.
• Q: What management options are available? Omada SDN cloud/app controller for centralized management, Zero-Touch Provisioning, plus standalone web/CLI/SNMP/RMON.
• Q: Can 10GBASE-T RJ45 modules be used? Yes, but only one SM5310-T 10G RJ45 SFP+ module at a time across all slots.
