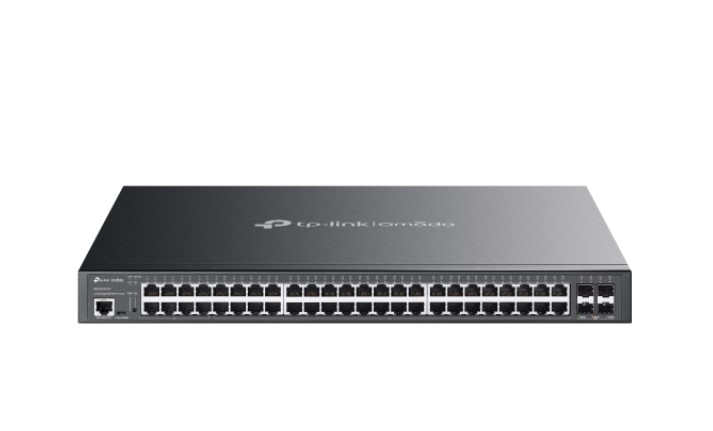

TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ 8-Port PoE++
$2,064.65 $2,002.71 inc GST
Manufacturer: TP-LINK
Availability: BRS:0 ADL:0 SYD:0 MEL:2 WA:0
2 in stock
TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ 8-Port PoE++
• 4× 10 Gbps SFP+ slots
• 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
• 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
• 750 W total PoE budget*
• Centralised cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design
Warranty Period: 5-Year
Why Choose This?
The TP-Link SG3452XMPP Omada switch delivers high-performance networking with 48 Gigabit ports—including 40 PoE+ and 8 PoE++ for powering demanding devices like Wi-Fi 7 APs and IP cameras—and 4x 10GE SFP+ uplinks for ultra-fast backbone connectivity. Its 750W PoE budget and L2+ features like static routing, VLANs, ACLs, and QoS ensure efficient, secure traffic management in business environments. Centralized Omada SDN cloud management simplifies deployment and monitoring for scalable networks.
Key Features
- 48 Gigabit RJ45 ports (40x PoE+ up to 30W, 8x PoE++ up to 90W) with 750W budget – Powers extensive IP surveillance, VoIP, and wireless setups without additional injectors.
- 4x 10G SFP+ slots – Provides non-blocking 176 Gbps switching for high-bandwidth uplinks to servers or core switches.
- Omada SDN centralized management – Enables zero-touch provisioning, cloud access, batch configuration, and intelligent monitoring via app or web.
- Advanced L2+ features (Static Routing, VLAN, ACL, QoS, IGMP Snooping) – Optimizes traffic, enhances security, and prioritizes voice/video for reliable performance.
- ERPS ring protection and robust security (802.1X, IP-MAC-Port Binding, Storm Control) – Ensures rapid failover and defense against threats in mission-critical deployments.
Full Specifications
| Category | Details |
|---|---|
| Model | SG3452XMPP |
| Interfaces | 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+), 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| PoE Standard | 802.3af/at/bt compliant |
| PoE Ports | Ports 1-8: PoE++ (up to 90W per port), Ports 9-48: PoE+ (up to 30W per port) |
| Total PoE Budget | 750 W |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.9 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Flash | 32 MB |
| DRAM | 512 MB |
| Power Supply | 100-240 V AC ~ 50/60 Hz |
| Max Power Consumption | 913.4 W (with 750 W PD connected) |
| Dimensions (W x D x H) | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) |
| Fan Quantity | 3 |
| Management | Omada SDN, Web/CLI/SNMP/RMON, Cloud Access |
| Static Routing | 48 IPv4/IPv6 static routes |
| VLAN Groups | Max 4K |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the total PoE power budget? 750 W total, with Ports 1-8 providing up to 90 W PoE++ each and Ports 9-48 up to 30 W PoE+ each.
- Q: Does it support centralized management? Yes, integrates with Omada SDN for cloud-based management, zero-touch provisioning, batch configuration, and monitoring via web or app.
- Q: What uplink options are available? 4× 10 Gigabit SFP+ slots for high-speed fiber or copper connections, supporting non-blocking 176 Gbps switching.
- Q: Is static routing supported? Yes, up to 48 IPv4/IPv6 static routes for efficient internal traffic routing without a separate router.
- Q: What security features are included? IP-MAC-Port Binding (512 entries), 802.1X authentication, ACLs, DHCP Snooping, ARP Inspection, Storm Control, and DoS defense.
| Weight | 7.13 kg |
|---|---|
| Dimensions | 528 × 470 × 100 mm |
| Product Create Date | 12/06/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | SG3452XMPP |
