Ubiquiti Wave Professional, High-capacity 60 GHz radio that Supports Long-distance PtP (bridge) PtMP links, 2.5 GbE, 10G SFP+ ports,
$1,326.85 inc GST
Manufacturer: Ubiquiti
Availability: BRS:1 ADL:1 SYD:2 MEL:2 WA:0
6 in stock

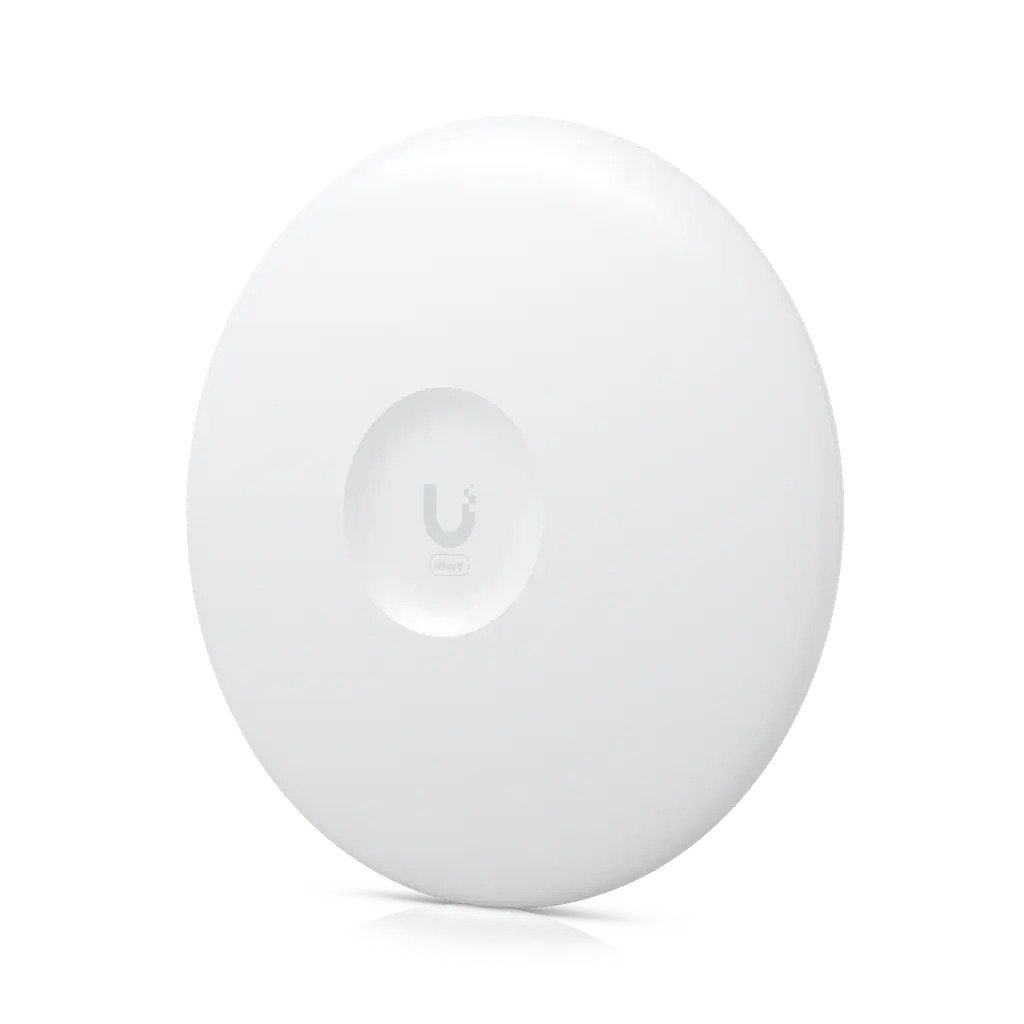

Ubiquiti Wave Professional
SKU: Wave-Pro
Description:High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.
Tech Specs: Click Here
Installation Guide: Click Here

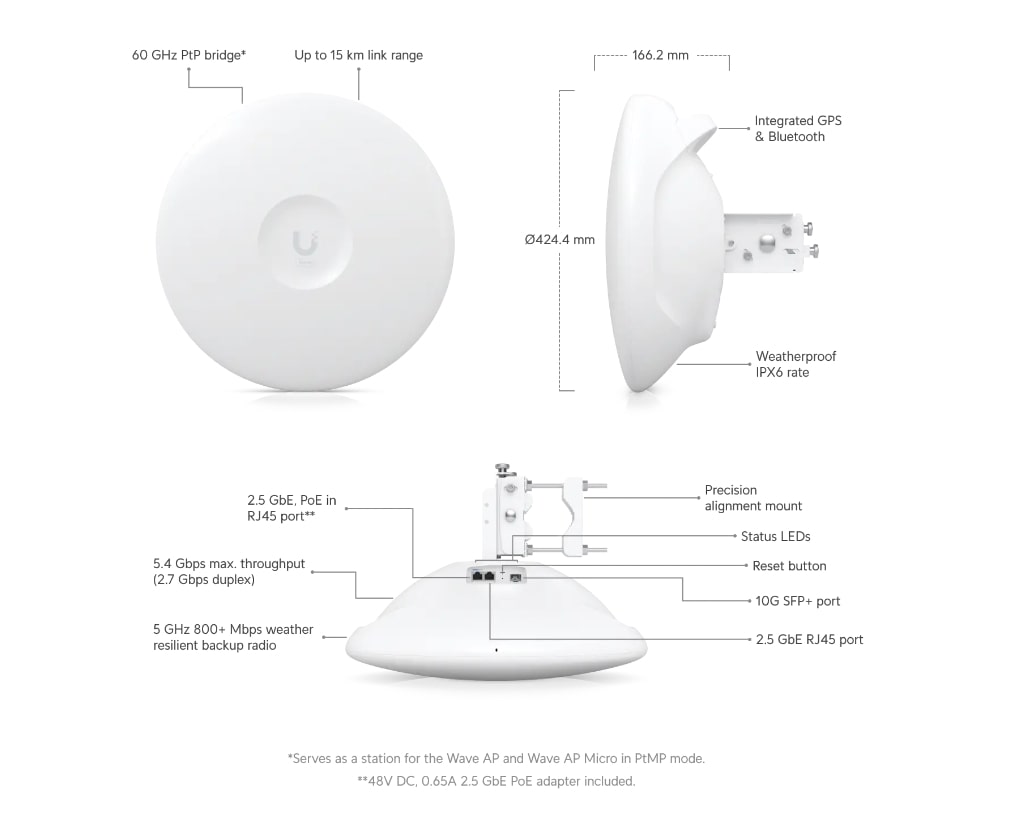

Features:
• Compatibility and supported distances:
— PtP: Up to 15 km
— PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
• 60 GHz primary radio with 5.4 Gbps (2.7 Gbps duplex) maximum throughput
• 5 GHz 800+ Mbps weather-resistant backup radio
• 2.5 GbE and (1) 10G SFP+ ports
• Ergonomic transportation handle
• Precision alignment mount
• Integrated GPS Bluetooth
Why Choose This?
The Ubiquiti Wave Pro is a high-capacity 60 GHz radio engineered for long-distance point-to-point (PtP) bridges and point-to-multipoint (PtMP) links, delivering up to 5.4 Gbps throughput with ultra-low latency. Featuring dual 2.5 GbE RJ45 ports and a 10G SFP+ uplink, plus a weather-resistant 5 GHz backup radio, it ensures reliable connectivity even in adverse conditions. Ideal for ISPs and enterprises needing fiber-like speeds over distances up to 15 km.
Key Features
- 60 GHz primary radio with 5.4 Gbps throughput – Provides fiber-grade speeds for high-bandwidth PtP/PtMP deployments up to 15 km.
- Integrated 46 dBi high-gain antenna – Enables precise, long-range links with narrow 1.3° beamwidth for minimal interference.
- 5 GHz WiFi 6 backup radio (800+ Mbps) – Ensures seamless failover during rain fade or primary link disruptions.
- Multi-gigabit ports: (2) 2.5 GbE RJ45 + (1) 10G SFP+ – Supports high-speed aggregation and backbone integration.
- GPS synchronization and Wave Technology – Optimizes multi-device PtMP performance with advanced interference mitigation.
Full Specifications
| Category | Details |
|---|---|
| Processor | Quad-core ARM Cortex-A53 at 1.4 GHz |
| Memory | 512 MB DDR3L |
| Networking Interface | (2) 2.5 GbE RJ45 ports, (1) 10G SFP+ port |
| Total Throughput | 5.4 Gbps (2.7 Gbps duplex) |
| Max. Range (PtP) | Up to 15 km (9.3 miles) |
| Max. Range (PtMP) | Up to 8 km (Wave AP), 6 km (Wave AP Micro/Gen2) |
| Primary RF Frequency | 57–71 GHz |
| Primary Channel Bandwidth | 2160, 1080, 540 MHz |
| Primary Antenna Gain | 46 dBi, Vertically-Linear Polarization |
| Primary Beamwidth | Azimuth/Elevation: 3 dB 1.3° |
| Backup RF Standard | 802.11ax (WiFi 6) |
| Backup RF Frequency (US/CA) | 5150–5850 MHz |
| Backup Antenna Gain | 22 dBi, Dual-Linear Polarization |
| Dimensions | ⌀424.4 x 166.2 mm (⌀16.7 x 6.5″) |
| Weight (with mount) | 4 kg (8.8 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Weatherproofing | IPX6 |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Max. Power Consumption | 26W |
| Power Method | Passive PoE (44–54V DC) |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What operating modes does the Wave Pro support? PtP (bridge) and PtMP Station modes for flexible long-distance deployments.
- Q: Does it have a backup radio for reliability? Yes, includes a 5 GHz WiFi 6 radio with 800+ Mbps throughput for weather-related failover.
- Q: What is the maximum power consumption? 26W, powered via Passive PoE with included 48V, 0.65A 2.5 GbE adapter.
- Q: Is GPS included? Yes, for synchronization in PtMP setups to reduce interference.
- Q: What certifications does it hold? FCC, IC, CE; NDAA compliant; IPX6 weatherproofing for outdoor use.
| Weight | 8.35 kg |
|---|---|
| Dimensions | 590 × 500 × 315 mm |
| Product Create Date | 03/11/2023 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | Wave-Pro |
| Opt Accessory | NHU-WAVE-AP, NHU-WAVE-NANO, NHU-WAVE-LR |
Dropship Delivery Info
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
