Ubiquiti UISP Wave Nano, 60 GHz PtMP station powered by Wave Technology,
$612.85 inc GST
Manufacturer: Ubiquiti
Availability: BRS:17 Jun ADL:3 SYD:5 MEL:27 WA:4
39 in stock

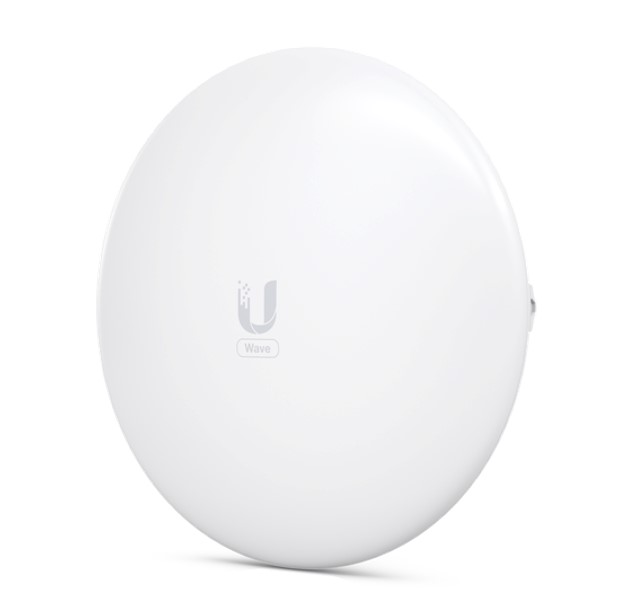

Ubiquiti Wave Nano
SKU: Wave-Nano
Description: 60 GHz PtMP station powered by Wave Technology.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
• Max. link range:
— Wave AP: 5 km
— Wave AP Micro: 4 km
• Max. throughput: 2 Gbps (1 Gbps duplex)
• 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
• (1) GbE RJ45 port
• Integrated GPS Bluetooth
Why Choose This?
The Ubiquiti UISP Wave Nano is a compact 60 GHz PtMP station powered by advanced Wave Technology, delivering up to 2 Gbps total throughput (1 Gbps duplex) over distances exceeding 5 km for high-performance wireless backhaul. It features a reliable 5 GHz WiFi 6 backup radio to ensure uninterrupted connectivity during adverse weather, integrated GPS for precise synchronization, and Bluetooth for effortless mobile app setup. Ideal for ISPs and enterprises needing gigabit speeds in a rugged, weatherproof design.
Key Features
- 60 GHz radio with 41 dBi antenna gain – Enables ultra-high 2 Gbps throughput over 5+ km links with narrow 1.4° beamwidth for focused, interference-free performance.
- 5 GHz WiFi 6 backup radio – Provides seamless failover with up to 800 Mbps capacity, ensuring reliable connectivity in rain or fog.
- Integrated GPS and Wave Technology – Synchronizes multiple stations to minimize interference and optimize PtMP networks.
- Bluetooth setup via UISP app – Simplifies installation and alignment with mobile tools like antenna alignment and site survey.
- Rugged IPX6 weatherproof enclosure – Withstands extreme conditions from -40°C to 60°C and high winds up to 200 km/h.
Full Specifications
| Category | Details |
|---|---|
| Dimensions | Ø256.5 x 113.5 mm (Ø10.1 x 4.5″) |
| Weight (without mount) | 932 g (2.1 lb) |
| Weight (with mount) | 1.2 kg (2.6 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Pole Mount Diameter | 25 to 63.5 mm (1 to 2.5″) |
| Wind Loading | 127 N at 200 km/h (28.6 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Dual-core ARM Cortex-A53 at 1 GHz |
| Memory | 512 MB DDR3L |
| Networking Interface | (1) GbE RJ45 port |
| Max. Power Consumption | 20W |
| Power Method | 48VDC/24VDC Passive PoE |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Total Throughput | 2 Gbps (1 Gbps duplex) |
| Max. Range | 5+ km |
| 60 GHz Frequency | 57–71 GHz |
| 60 GHz Antenna Gain | 41 dBi |
| 60 GHz Modulation | 16QAM, QPSK |

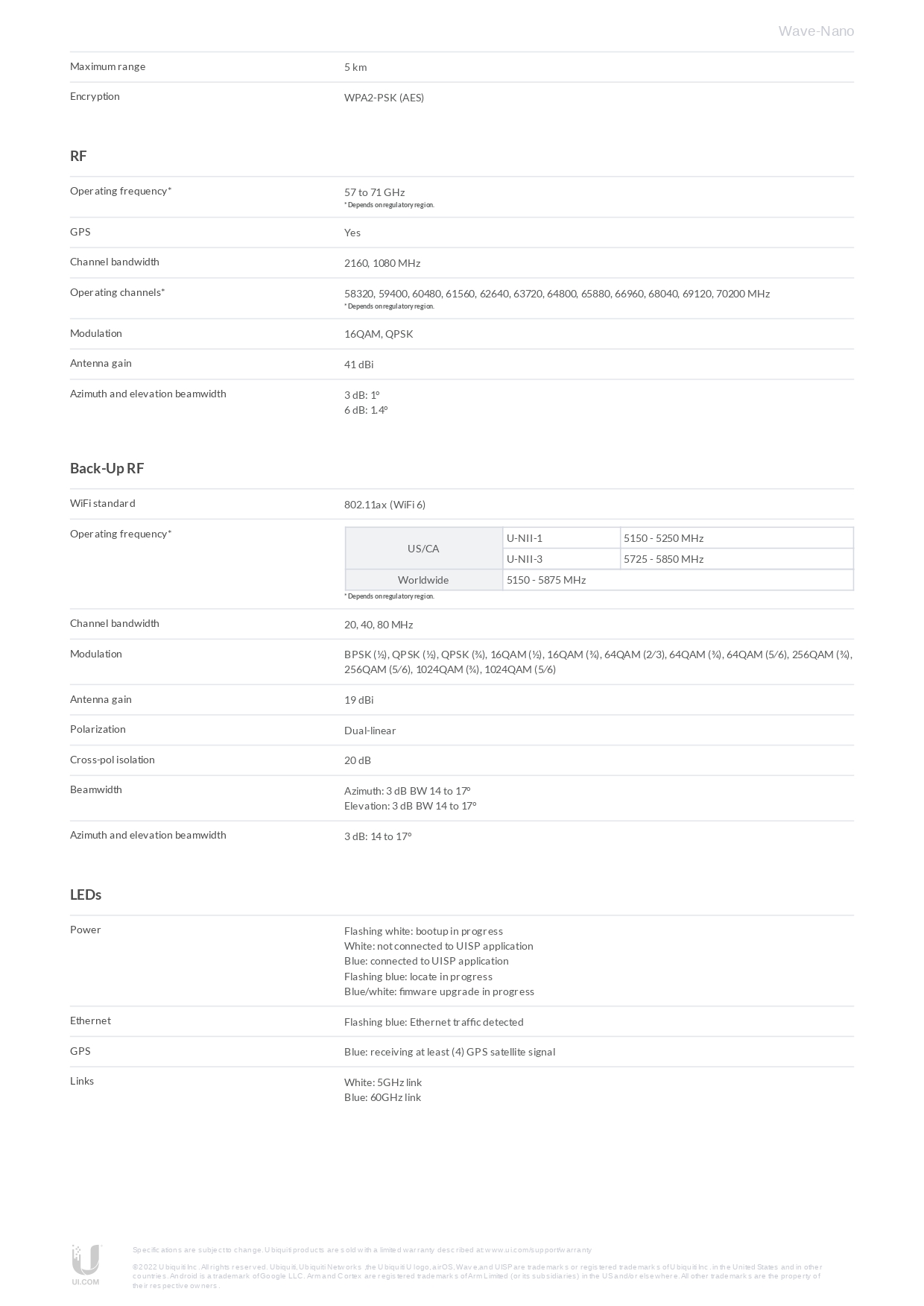

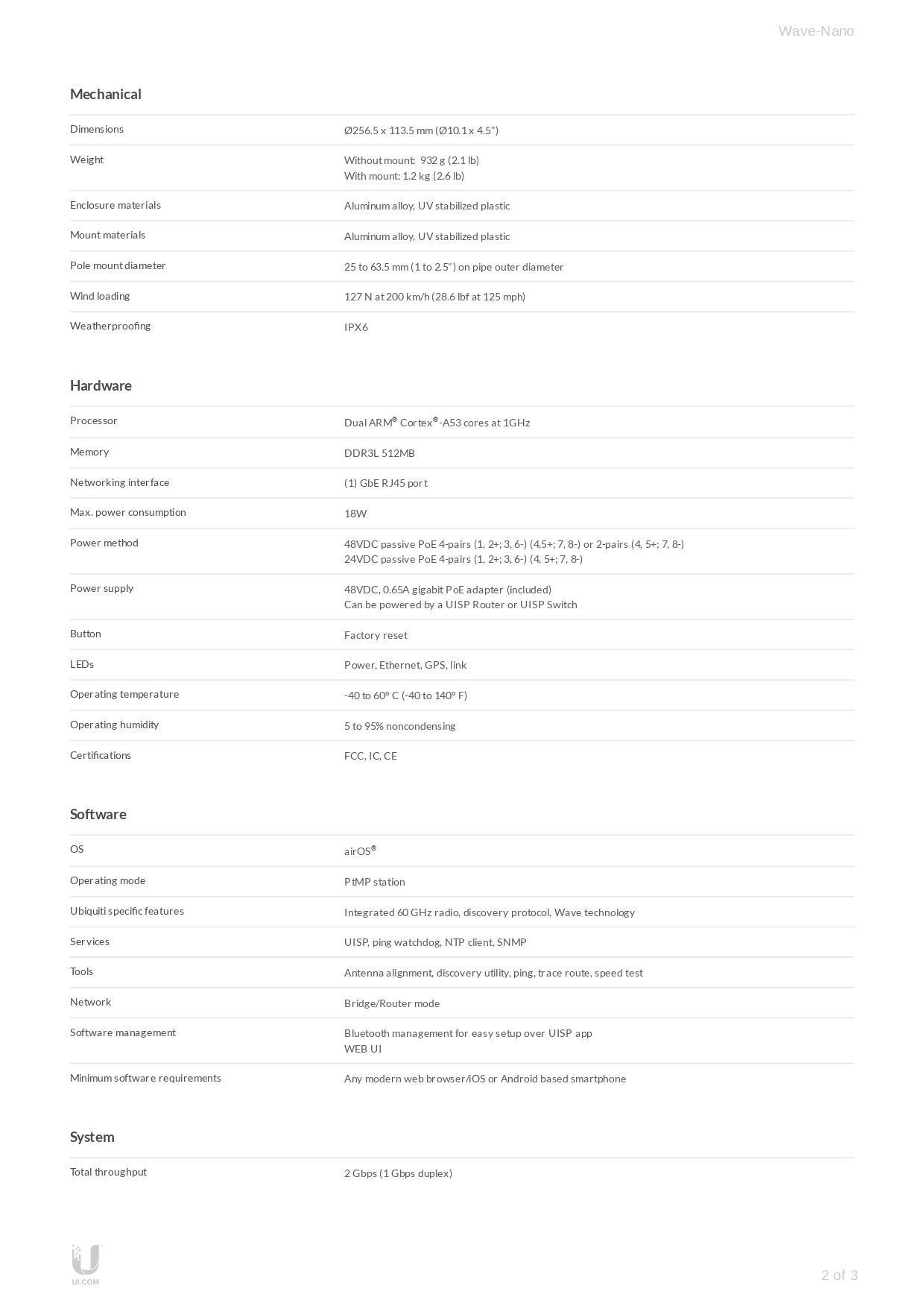

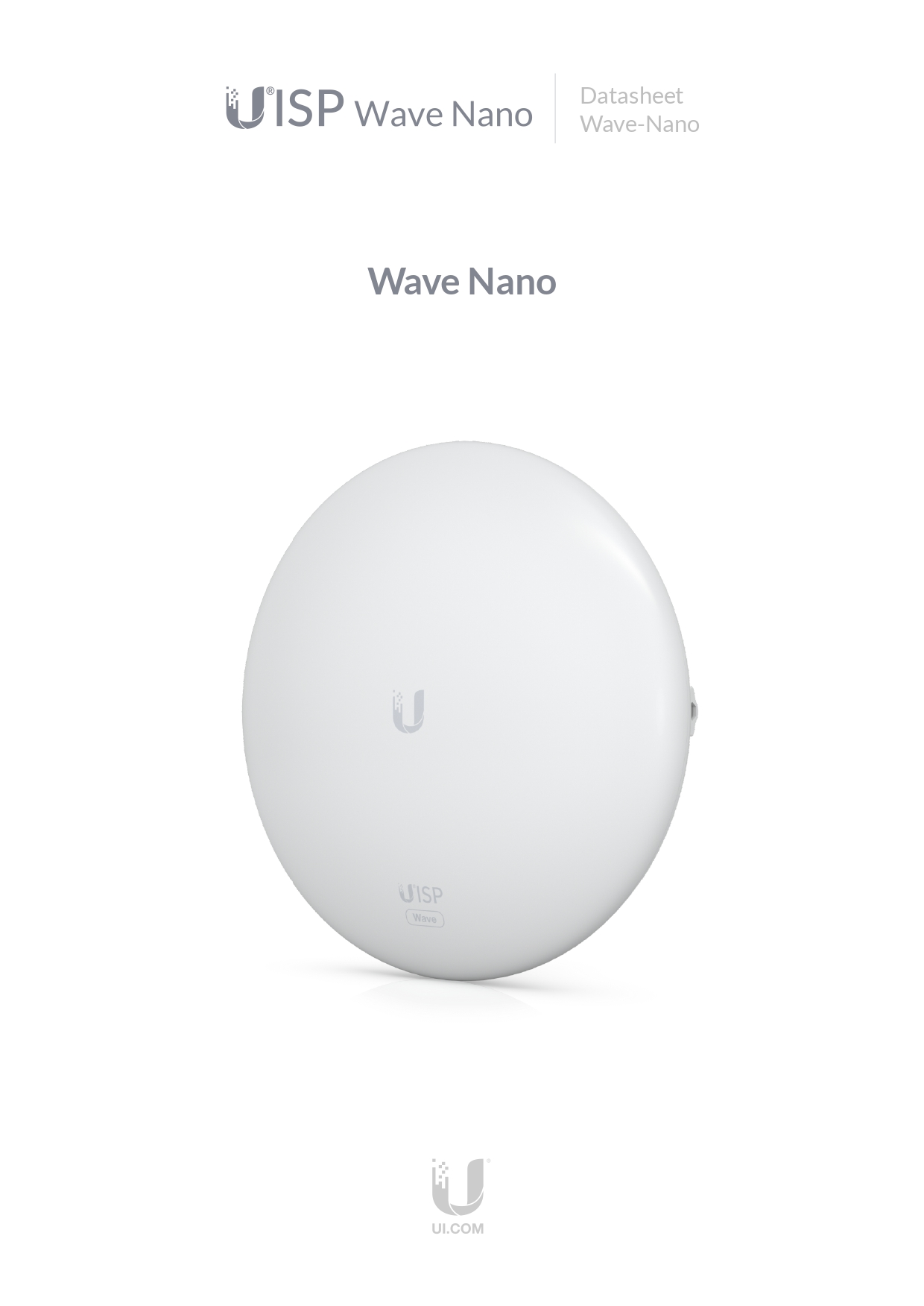

Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum range of the Wave Nano? Up to 5 km in PtMP mode with Wave AP; extends to 12 km in PtP mode with firmware 3.2.0+.
- Q: Does it support PtP mode? Yes, starting with firmware version 3.2.0, it can operate as a PtP station or AP.
- Q: What happens if there is rain or interference on 60 GHz? Automatically switches to the 5 GHz WiFi 6 backup radio for uninterrupted service.
- Q: Is GPS synchronization required? Integrated GPS enables synchronization for multi-station PtMP deployments to reduce interference.
- Q: How is it powered and managed? Powered via included 48V PoE adapter or UISP switches/routers; managed via UISP app with Bluetooth, WEB UI, or UISP platform.
| Weight | 2.56 kg |
|---|---|
| Dimensions | 306 × 304 × 196 mm |
| Product Create Date | 02/02/2023 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | Wave-Nano |
