Ubiquiti Wave AP, 60 GHz 5.4 Gbps Max Access Point, 2.7 Gbps duplex, 30° Sector Coverage, Integrated GPS Bluetooth,
$1,049.58 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:2 WA:0
2 in stock

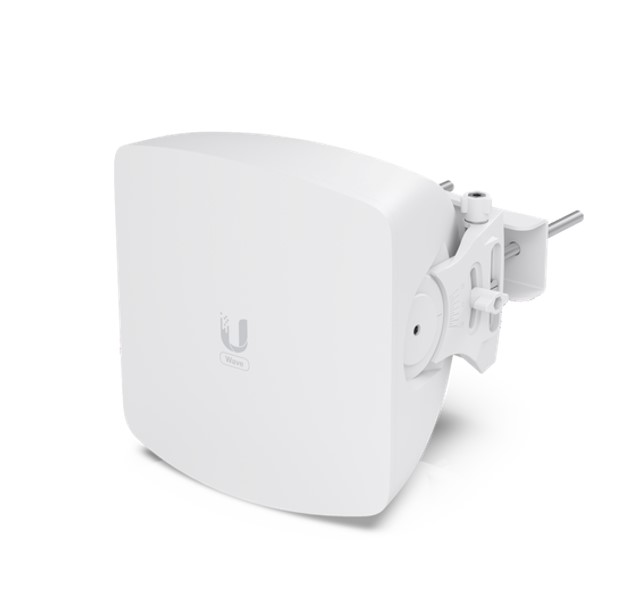

Ubiquiti Wave AP
SKU: Wave-AP
Description: 60 GHz PtMP access point powered by Wave Technology.
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•60 GHz 5.4 Gbps max. throughput (2.7 Gbps duplex) main radio
•30° sector coverage
•5 GHz 800+ Mbps weather-resilient backup radio
•(1) 2.5 GbE and (1) 10G SFP+ WAN ports
•15 client capacity:
— Wave Pro (8 km link range)
— Wave Long-Range (8 km link range)
— Wave Nano (5 km link range)
•Integrated GPS Bluetooth
Why Choose This?
The Ubiquiti Wave AP (Wave-AP) is a high-performance 60 GHz PtMP access point powered by Wave Technology, delivering up to 5.4 Gbps total throughput (2.7 Gbps duplex) with 30° sector coverage for reliable, low-interference wireless connectivity over distances up to 8 km.
Featuring a weatherproof IPX6 design, integrated GPS for precise synchronization, Bluetooth for easy mobile setup, and a 5 GHz WiFi 6 backup radio, it ensures uninterrupted service even in harsh conditions, making it ideal for WISPs and enterprise PtMP deployments.
Key Features
- 60 GHz radio with 5.4 Gbps throughput – Provides fiber-like speeds in unlicensed spectrum with minimal interference for high-capacity PtMP networks.
- 30° sector beamwidth and 24 dBi gain – Focused coverage up to 8 km to Wave Long-Range clients, optimizing capacity in dense deployments.
- 5 GHz WiFi 6 backup radio – Ensures seamless failover with up to 800 Mbps throughput during 60 GHz outages due to weather.
- Integrated GPS and Bluetooth – Enables precise timing sync across APs and quick setup via UISP Mobile app without wiring.
- Dual WAN ports (2.5 GbE RJ45 + 10G SFP+) – Supports high-speed backhaul with automatic failover for maximum uptime.
Full Specifications
| Category | Details |
|---|---|
| Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4″) |
| Weight | 2.3 kg (5.1 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Pole Mount Diameter | Ø25 to 76 mm (1 to 3″) |
| Wind Loading | 98 N at 200 km/h (22 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Quad-core ARM Cortex-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface | (1) 2.5 GbE RJ45 port (100/1000/2500 Mbps), (1) 10G SFP+ port (1/10 Gbps) |
| Max. Power Consumption | 24W |
| Power Method | 48V DC passive PoE (4-pairs or 2-pairs), 24V DC passive PoE |
| Power Supply | 48V DC, 0.65A 2.5 GbE PoE adapter (included) |
| GPS | Yes, integrated |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| Total Throughput | 5.4 Gbps (2.7 Gbps duplex) |
| Supported Clients | 31 |
| Max. Range | Up to 8 km (to Wave Pro/Long-Range), 5 km (to Wave Nano) |
| 60 GHz Frequency | 57–71 GHz (worldwide) |
| 60 GHz Antenna Gain | 24 dBi |
| 60 GHz Beamwidth | Azimuth: 30° (3 dB), Elevation: 3° (3 dB) |
| Backup RF Standard | 802.11ax (WiFi 6) |
| Backup RF Frequency | 5150–5875 MHz (worldwide) |
| Backup RF Antenna Gain | 12 dBi |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum throughput and client capacity of the Wave AP? It delivers 5.4 Gbps total throughput (2.7 Gbps duplex) and supports up to 31 clients in PtMP mode.
- Q: What is the coverage and range? Features 30° sector coverage with up to 8 km range to compatible Wave Pro or Long-Range clients.
- Q: Does it have a backup radio for reliability? Yes, includes a 5 GHz 802.11ax (WiFi 6) backup radio for automatic failover during 60 GHz disruptions.
- Q: How is it powered and mounted? Powered via included 48V PoE adapter; mounts on poles 25-76 mm diameter with IPX6 weatherproofing.
- Q: What management options are available? Managed via UISP platform with Bluetooth setup in UISP Mobile app, WEB UI, and integrated GPS for sync.
| Weight | 3.55 kg |
|---|---|
| Dimensions | 290 × 290 × 240 mm |
| Product Create Date | 02/02/2023 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | Wave-AP |
