Ubiquiti 5GHz AirMax Dual Omni Directional 13dBi Antenna – All Mounting Accessories Brackets Included
$292.74 inc GST
Manufacturer: Ubiquiti
Availability: BRS:2 ADL:3 SYD:3 MEL:17 WA:5
30 in stock

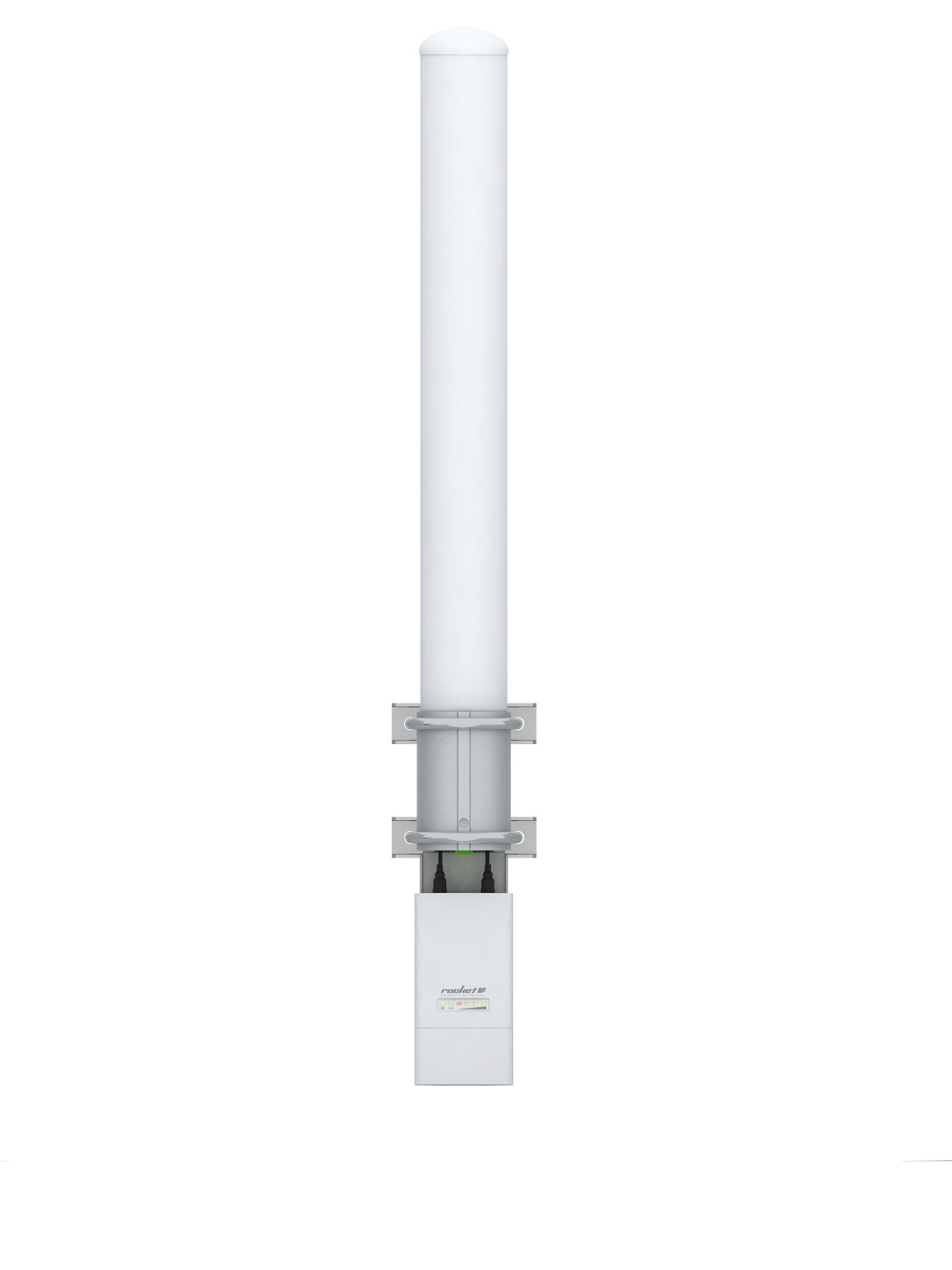

Ubiquiti airMAX 5 GHz, 13 dBi, Omni
SKU: AMO-5G13
Description: 5 GHz, 13 dBi carrier-class 2×2 dual-polarity MIMO omnidirectional antenna.
airMAX 5Ghz 13dBi AMO-5G13 Omni The first of its kind, Ubiquiti airMAX Omni antennas deliver carrier-class, 2X2 dual-polarity, omni-directional MIMO performance. They are designed for seamless integration with Ubiquiti airMAX Rocket hardware.
Tech Specs: Click Here
Features:
• 2×2 dual-polarity MIMO
• 360° coverage
• Easy to assemble
• Compatible with RocketPrism
Why Choose This?
Upgrade your 5 GHz wireless network with the Ubiquiti AMO-5G13, a carrier-class 13 dBi dual-polarity MIMO omnidirectional antenna delivering 360° coverage for airMAX base stations. Designed for robust performance in line-of-sight or non-line-of-sight environments, it pairs seamlessly with Rocket radios to maximize throughput and range. All essential mounting hardware, including pole clamps, RocketM bracket, and weatherproof RF jumpers, is included for quick, hassle-free deployment.
Key Features
- 13 dBi gain – Provides strong signal strength for extended coverage and reliable connections over wide areas.
- Dual-linear polarization – Enables 2×2 MIMO operation for doubled throughput and efficient spectrum use.
- Omnidirectional 360° pattern – Ensures uniform coverage in all directions, ideal for central base stations.
- Weatherproof RP-SMA connectors – Delivers secure, durable connections in harsh outdoor conditions.
- Included mounting kit – Universal pole mount and RocketM bracket simplify installation on poles up to 76 mm diameter.
Full Specifications
| Category | Details |
|---|---|
| Model | AMO-5G13 |
| Frequency Range | 5.45–5.85 GHz |
| Antenna Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max. VSWR | 1.5:1 |
| Downtilt | 2° Electrical |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 25 dB Min. |
| RF Connectors | 2 x RP-SMA (Weatherproof) |
| Dimensions | 799 x 90 x 65 mm (31.46 x 3.54 x 2.56″) |
| Weight (with Mount) | 0.82 kg (1.81 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 84.52 N @ 200 km/h (19 lbf @ 125 mph) |
| Mounting | Universal Pole Mount (Ø 38–76 mm), RocketM Bracket, Weatherproof RF Jumpers Included |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | Yes |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What radio is compatible with the AMO-5G13? Designed for Ubiquiti Rocket M5 or RocketM5 GPS (sold separately); works with airMAX-compatible 5 GHz radios like Rocket Prism 5AC.
- Q: What is included in the package? Antenna, pole clamps (x2), carriage bolts M8x100 (x4), serrated flange nuts M8 (x4), RF cables (x2), RocketM bracket, quick start guide.
- Q: What pole sizes does it support? Universal pole mount fits Ø 38–76 mm (1.5–3.0″) poles; requires 13 mm wrench for installation.
- Q: Is it suitable for outdoor use? Yes, weatherproof construction withstands 200 km/h winds; use shielded Ethernet and ground per warranty conditions.
- Q: What is the typical range? Depends on radio, power, environment; real-world reports show stable links up to 5 km with directional clients in clear LoS.
| Weight | 1.6 kg |
|---|---|
| Dimensions | 96 × 150 × 862 mm |
| Product Create Date | 25/04/2016 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | AMO-5G13 |
| Opt Accessory | NHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-EXTWAR-UBNT-5YR |
