Ubiquiti UISP Wave Long-Range, 60 GHz PtMP station powered by Wave Technology, GbE RJ45 port, Integrated GPS Bluetooth,
$836.57 inc GST
Manufacturer: Ubiquiti
Availability: BRS:1 ADL:1 SYD:0 MEL:6 WA:2
10 in stock

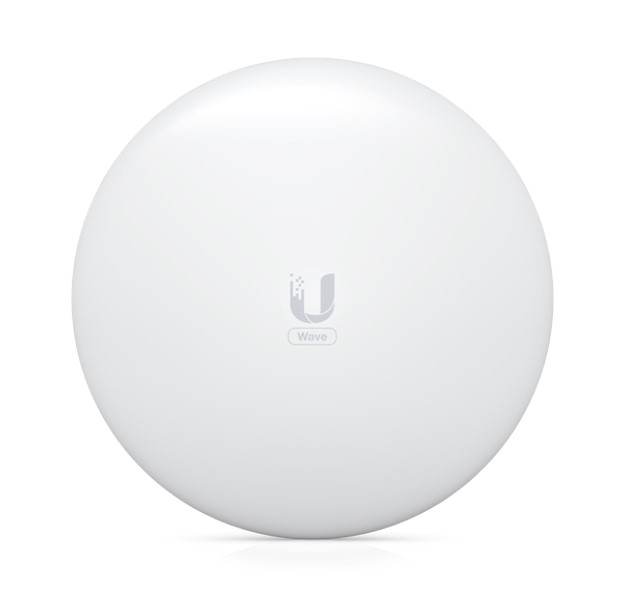

Ubiquiti UISP Wave Long-Range
Description: Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
SKU: Wave-LR
Tech Specs: Click Here
Installation Guide: Click Here

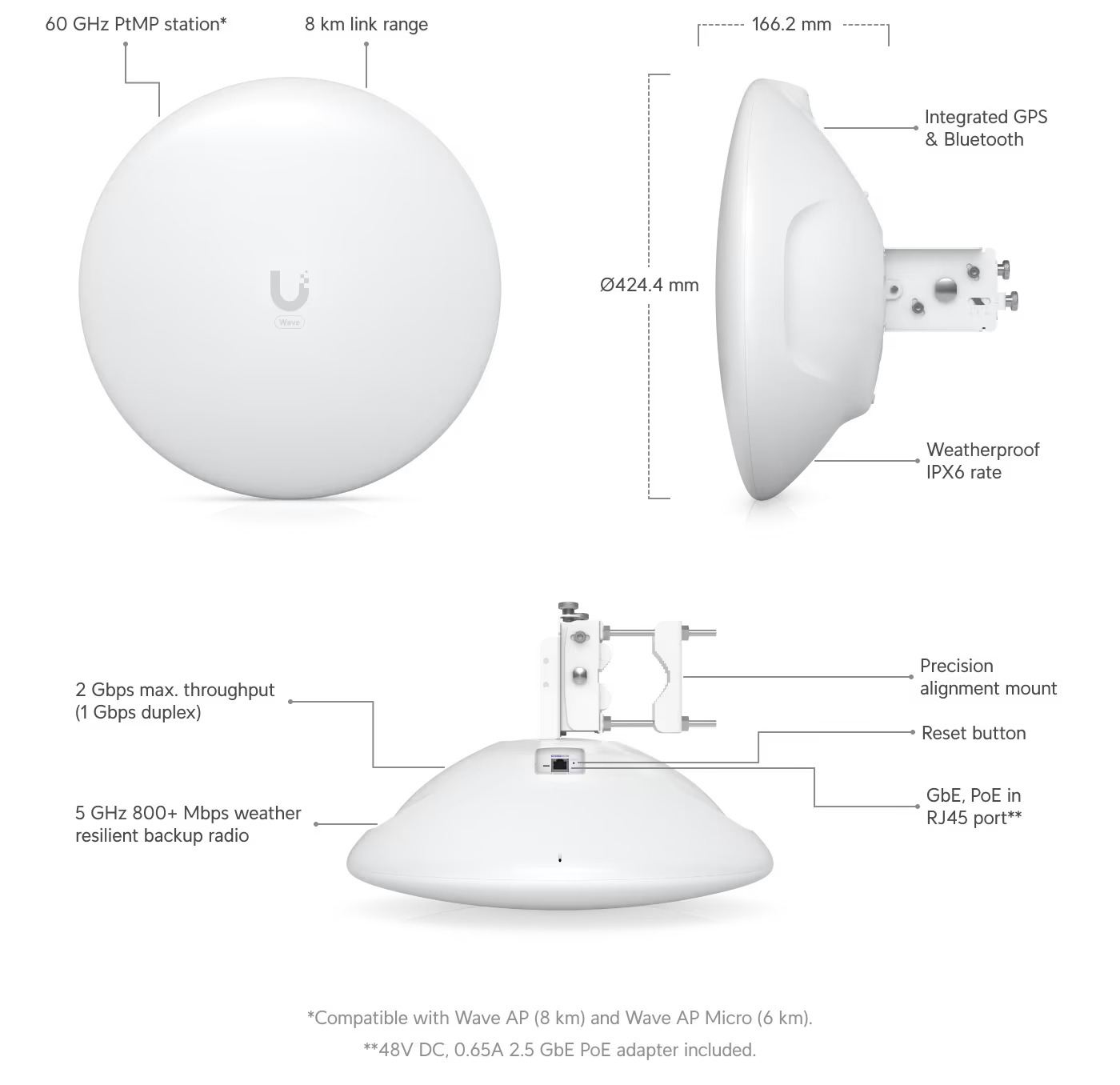

Features:
• Compatibility and supported distances:
— Wave AP – 8 km link range
— Wave AP Micro – 6 km link range
• 2 Gbps max. throughput (1 Gbps duplex)
• 5 GHz 800+ Mbps weather-resilient backup radio
• GbE RJ45 port
•Precision alignment mount
• Integrated GPS Bluetooth
Why Choose This?
The Ubiquiti UISP Wave Long-Range (Wave-LR) is a high-performance 60 GHz PtMP station powered by proprietary Wave Technology, delivering up to 2 Gbps total throughput (1 Gbps duplex) over distances of 8+ km for reliable long-range connectivity. Featuring an integrated GPS for precision alignment, a 5 GHz weatherproof backup radio for uninterrupted service, and Bluetooth for easy mobile setup, it ensures robust, low-latency links in demanding outdoor environments. Ideal for WISPs and enterprises needing gigabit speeds without fiber, its IPX6-rated design withstands harsh weather while minimizing interference in the uncongested 60 GHz band.
Key Features
- 60 GHz RF with 46 dBi antenna gain – Enables multi-gigabit speeds up to 2 Gbps over 8+ km with narrow beamwidth for focused, interference-free long-range links.
- Integrated GPS synchronization – Provides precise timing for multi-station PtMP deployments, reducing interference and optimizing network capacity.
- 5 GHz WiFi 6 backup radio (22 dBi gain) – Ensures failover connectivity up to 800 Mbps during 60 GHz weather disruptions for maximum uptime.
- Bluetooth management via UISP app – Simplifies setup, alignment, and monitoring from iOS/Android devices without complex cabling.
- GbE RJ45 PoE port with bridge/router modes – Supports flexible integration into existing networks with low 18-20W power draw and robust environmental protection.
Full Specifications
| Category | Details |
|---|---|
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5″) |
| Weight (without mount) | 2.59-2.6 kg (5.7 lb) |
| Weight (with mount) | 3.79-3.8 kg (8.4 lb) |
| Enclosure Material | UV stabilized plastic/polycarbonate |
| Mount Material | Galvanized steel/Stainless steel |
| Pole Mount Diameter | 25 to 76.2 mm (1 to 3″) |
| Wind Loading | 286 N at 200 km/h (64.3 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Dual-core ARM Cortex-A53 at 1 GHz |
| Memory | DDR3L 512 MB |
| Networking Interface | (1) GbE RJ45 port |
| Max. Power Consumption | 18-20W |
| Power Method | 48V DC passive PoE (4-pairs/2-pairs); 24V DC passive PoE (4-pairs); 44-54V DC supported |
| Power Supply | 48V DC, 0.65A Gigabit PoE adapter (included) |
| GPS | Yes, integrated |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE, NDAA Compliant |
| Total Throughput | 2 Gbps (1 Gbps duplex) |
| Maximum Range | 8+ km (PtMP); up to 15 km PtP |
| Encryption | WPA2-PSK (AES) |
| RF Operating Frequency | 57-71 GHz (region dependent) |
| RF Channel Bandwidth | 2160, 1080, 540 MHz |
| RF Antenna Gain | 46 dBi |
| RF Beamwidth (3 dB) | Azimuth/Elevation: 0.8-1° |
| RF Polarization | Vertically-Linear |
| Backup RF (WiFi Standard) | 802.11ax (WiFi 6) |
| Backup RF Frequency | 5150-5875 MHz (region dependent) |
| Backup RF Antenna Gain | 22 dBi, Dual-Linear, 20 dB cross-pol isolation |
| Operating Mode | PtMP Station; PtP supported |
| OS | airOS |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is Wave Technology? Proprietary Ubiquiti technology engineered to maximize speed and performance across long distances in the 60 GHz band, with features like Wave AI for optimization.
- Q: What is the maximum range of the Wave-LR? Up to 8+ km in PtMP with Wave AP (6 km with Wave AP Micro); up to 15 km in PtP mode with firmware 3.3.0+.
- Q: Does it support failover during bad weather? Yes, equipped with a high-performance 5 GHz WiFi 6 backup radio providing up to 800 Mbps throughput for uninterrupted connectivity.
- Q: How do I set it up? Use Bluetooth via the UISP Mobile app for easy configuration, alignment, and management; supports WEB UI with modern browsers or smartphones.
- Q: Can it be used in PtP mode? Yes, two Wave-LR units can form a PtP link up to 15 km, though primarily designed as PtMP station for Wave AP access points.
| Weight | 6.8 kg |
|---|---|
| Dimensions | 504 × 490 × 300 mm |
| Product Create Date | 02/02/2023 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | Wave-LR |
| Opt Accessory | NHU-60G-PM |
