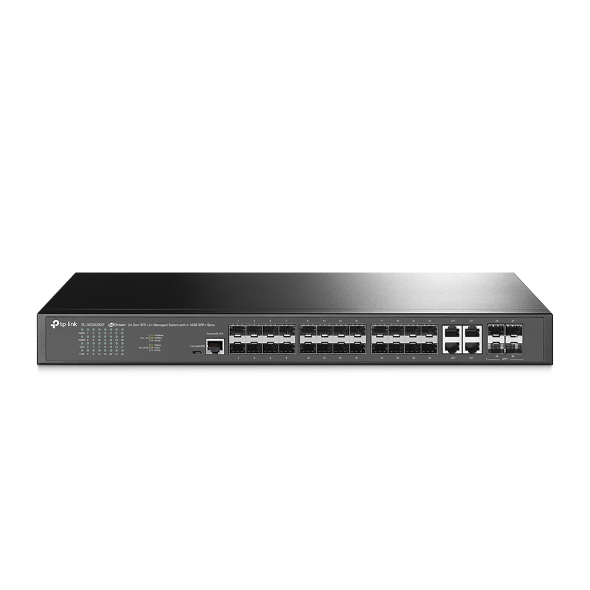

TP-Link SG3428XF Omada 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots, Integration with Omada SDN Controller
$1,135.26 $1,101.20 inc GST
Manufacturer: TP-LINK
Availability: BRS:1 ADL:1 SYD:3 MEL:4 WA:2
11 in stock
JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
Gigabit Fiber Speeds: 20× gigabit SFP ports and 4× gigabit SFP/RJ45 Combo ports s offer high-speed and reliable connections to other switches and devices.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Why Choose This?
The TP-Link SG3428XF is a high-performance 24-Port SFP L2+ Managed Switch designed for enterprise aggregation layers, delivering lightning-fast 10G uplinks via 4 SFP+ slots and reliable Gigabit fiber connectivity across 20 SFP ports plus 4 combo ports. Seamlessly integrating with Omada SDN for centralized cloud management, Zero-Touch Provisioning, and intelligent monitoring, it ensures scalable, secure networks with static routing, robust QoS, and advanced security features. Ideal for businesses needing non-blocking 128 Gbps switching capacity and dual redundant power supplies for maximum uptime.
Key Features
- 10G Lightning-Fast Uplink – 4× 10 Gbps SFP+ slots provide high-bandwidth connectivity for aggregation without bottlenecks.
- Gigabit Fiber Speeds – 20× Gigabit SFP slots and 4× Gigabit SFP/RJ45 combo ports enable reliable, high-speed fiber and copper connections.
- Omada SDN Integration – Centralized cloud management, Zero-Touch Provisioning, and batch configuration simplify deployment and monitoring.
- Static Routing & L2+ Features – Efficient internal traffic routing, IGMP Snooping, and 802.1Q VLAN optimize performance and segmentation.
- Robust Security & QoS – IP-MAC-Port Binding, ACL, 802.1X, and L2/L3/L4 QoS prioritize traffic and protect against threats.
Full Specifications
| Category | Details |
|---|---|
| Model | SG3428XF / TL-SG3428XF |
| Interfaces | 20× Gigabit SFP Slots, 4× Gigabit SFP/RJ45 Combo Ports, 4× 10 Gbps SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 12 Mbit |
| Jumbo Frame | 9 KB |
| Flash | 32 MB |
| DRAM | 256 MB |
| Transmission Method | Store and Forward |
| Number of IP Interfaces | 128 |
| Static Routes | 48 (IPv4, IPv6) |
| Fan Quantity | 1 |
| Power Supply | 100-240 V~ 50/60 Hz, Dual Redundant |
| Max Power Consumption | 35.7 W (110V/60Hz) |
| Dimensions (W x D x H) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Net Weight | 2.88 kg (6.35 lbs) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| MTBF | 344,080 hours @ 25°C |
| Certifications | CE, FCC, RoHS |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What ports does the SG3428XF have? It features 20× Gigabit SFP slots, 4× Gigabit SFP/RJ45 combo ports, and 4× 10G SFP+ slots for flexible fiber and copper connectivity.
- Q: Does it support Omada SDN? Yes, it integrates with Omada SDN for centralized cloud management, Zero-Touch Provisioning, batch configuration, and intelligent monitoring via Omada controllers.
- Q: What is the switching capacity? 128 Gbps with a packet forwarding rate of 95.23 Mpps, supporting non-blocking performance.
- Q: How do I troubleshoot no Internet access? Check power and port LEDs, verify cable connections, IP configuration, and upstream device settings; reset if needed.
- Q: What management options are available? Omada SDN, web GUI, CLI (console/Telnet/SSH), SNMP v1/v2c/v3, RMON, and Omada App for standalone or centralized control.
| Weight | 3.98 kg |
|---|---|
| Dimensions | 530 × 340 × 100 mm |
| Product Create Date | 08/03/2023 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 36 |
| Manufacturer SKU | SG3428XF |
| Opt Accessory | NHTL-OC200, NHTL-OC300, CSP-LIC-OCC-1YR, CSP-LIC-OCC-3YR, CSP-LIC-OCC-5YR |
