Ubiquiti UISP Dish, 30 dBi Dish Antenna, 5.15-6.875 GHz Frequency Range, 30+ km PtP Link Range, Compatible AF 5XHD RP 5AC,
$337.96 inc GST
Manufacturer: Ubiquiti
Availability: BRS:2 ADL:1 SYD:2 MEL:1 WA:0
6 in stock

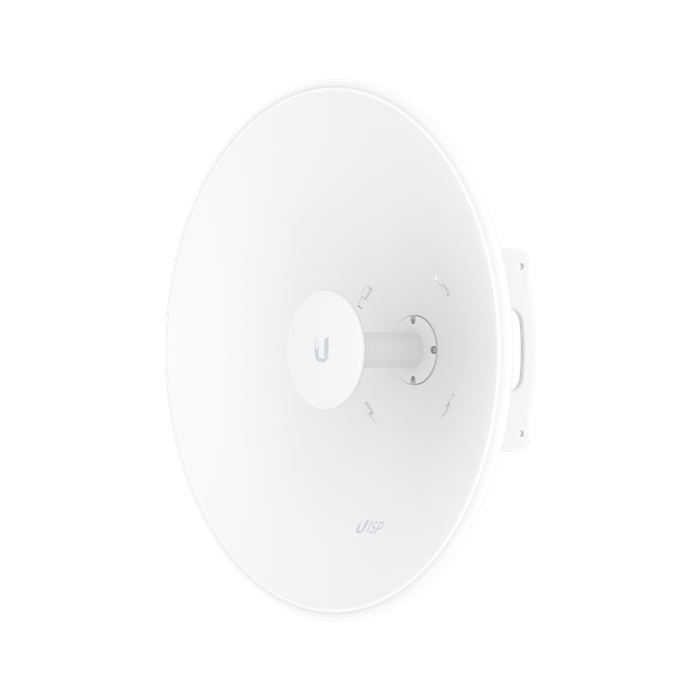

Ubiquiti UISP Dish
SKU: UISP-Dish
Description: Point-to-point (PtP) dish antenna that covers a wide operating frequency range (5.15 – 6.875 GHz).
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•Frequency range: 5.15 – 6.875 GHz
•30+ km PtP link range
•Precision mounting bracket for easy installation and alignment
•Compatible with AF 5XHD and RP 5AC
Why Choose This?
The Ubiquiti UISP Dish is a high-performance point-to-point (PtP) dish antenna delivering 30 dBi gain across a broad 5.15-6.875 GHz frequency range, enabling reliable links over 30+ km. Its precision mounting and snap-in radio compatibility with devices like AF-5XHD, RP-5AC-Gen2, and Wave-MLO5 simplify deployment while ensuring robust signal amplification in demanding outdoor environments. Built for durability with IPX6 weatherproofing and 200 km/h wind resistance, it offers exceptional value for WISPs and long-range wireless networks.
Key Features
- 30 dBi gain – Provides high signal amplification for long-distance PtP links exceeding 30 km.
- Wide frequency range (5.15-6.875 GHz) – Offers flexibility to avoid interference and comply with regional regulations.
- Narrow beamwidth (5-6° at 3 dB) – Ensures focused, high-directivity performance minimizing noise.
- Dual-linear polarization with 20 dB cross-pol isolation – Enhances link quality and reduces multipath interference.
- Precision alignment mount with ±15° adjustment – Enables quick, accurate installation on poles 40-90 mm diameter.
Full Specifications
| Category | Details |
|---|---|
| Model | UISP-Dish |
| Frequency Range | 5.15 to 6.875 GHz |
| Gain | 30 dBi |
| Beamwidth (Azimuth) | 5 to 6° (3 dB) / 6.5 to 8° (6 dB) |
| Beamwidth (Elevation) | 5 to 6° (3 dB) / 6.5 to 8° (6 dB) |
| Electrical Downtilt | 0° |
| Electrical Beamwidth | 2:1 |
| Polarization | Dual-linear |
| Cross-Pol Isolation | 20 dB |

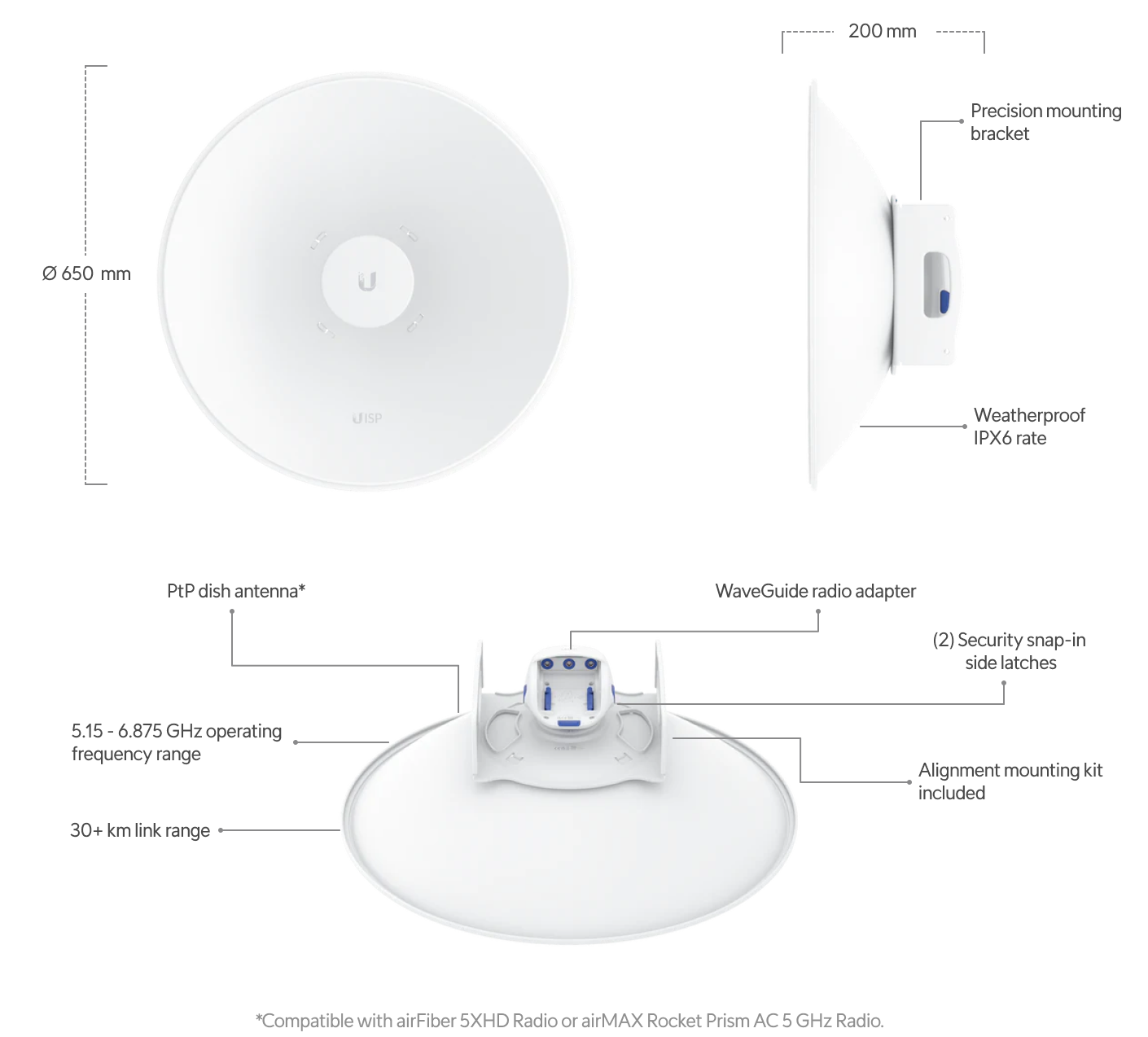

| Dimensions | ⌀650 x 200 mm (⌀25.6 x 7.9″) |
| Weight (Device) | 4.54 kg (10 lb) |
| Weight (Mount) | 3.1 kg (6.8 lb) |
| Enclosure Material | Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 860 N at 200 km/h (193 lbf at 124 mph) |
| Mounting | Pole Mount (⌀40 to 90 mm / ⌀1.57 to 3.5″), Alignment Mount Included |
| Mechanical Adjustment | ±15° elevation |
| Weatherproofing | IPX6 |
| NDAA Compliant | Yes |
| PtP Link Range | 30+ km |
| Compatibility | AF-5XHD, RP-5AC-Gen2, Wave-MLO5 |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What is the maximum PtP link range? Up to 30+ km under ideal conditions with compatible high-power radios like AF-5XHD.
- Q: Which radios are compatible with the UISP Dish? Designed for snap-in connection with AF-5XHD, RP-5AC-Gen2, and Wave-MLO5 via included waveguide adapter.
- Q: What weather conditions can it withstand? IPX6-rated for water ingress and survives winds up to 200 km/h (124 mph).
- Q: Is the antenna NDAA compliant? Yes, it meets NDAA requirements for secure deployments.
- Q: How easy is installation and alignment? Features a precision mounting bracket with ±15° elevation adjustment and side latches for secure radio attachment.
| Weight | 11.7 kg |
|---|---|
| Dimensions | 760 × 760 × 330 mm |
| Product Create Date | 18/08/2023 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UISP-Dish |
| Opt Accessory | NHU-RP-5AC-GEN2, NHU-AF-5XHD |
