Ubiquiti Rocket AC Prism Gen2 5GHz Radio with speeds up to 450+Mbps, 50+ Client Capacity, Integrated GPS sync,
$486.71 inc GST
Manufacturer: Ubiquiti
Availability: BRS:17 Jun ADL:5 SYD:4 MEL:12 WA:9
30 in stock

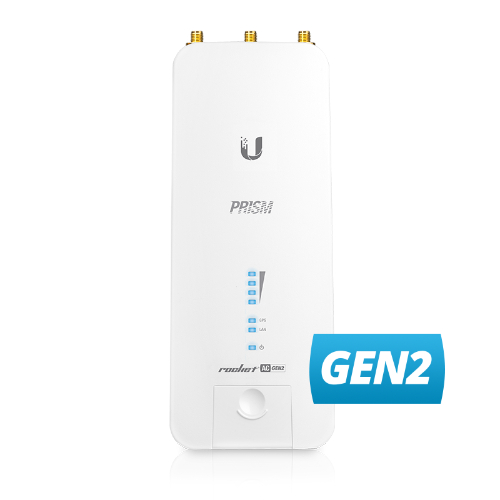

Ubiquiti airMAX Rocket Prism 5AC
SKU: RP-5AC-Gen2
Tech Specs: Click Here
Description: High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput.
Features:
• 5 GHz airPrism active RF filtering technology
• 450+ Mbps throughput
• 50+ client capacity
• Dedicated spectral analysis radio
• Integrated GPS sync
Why Choose This?

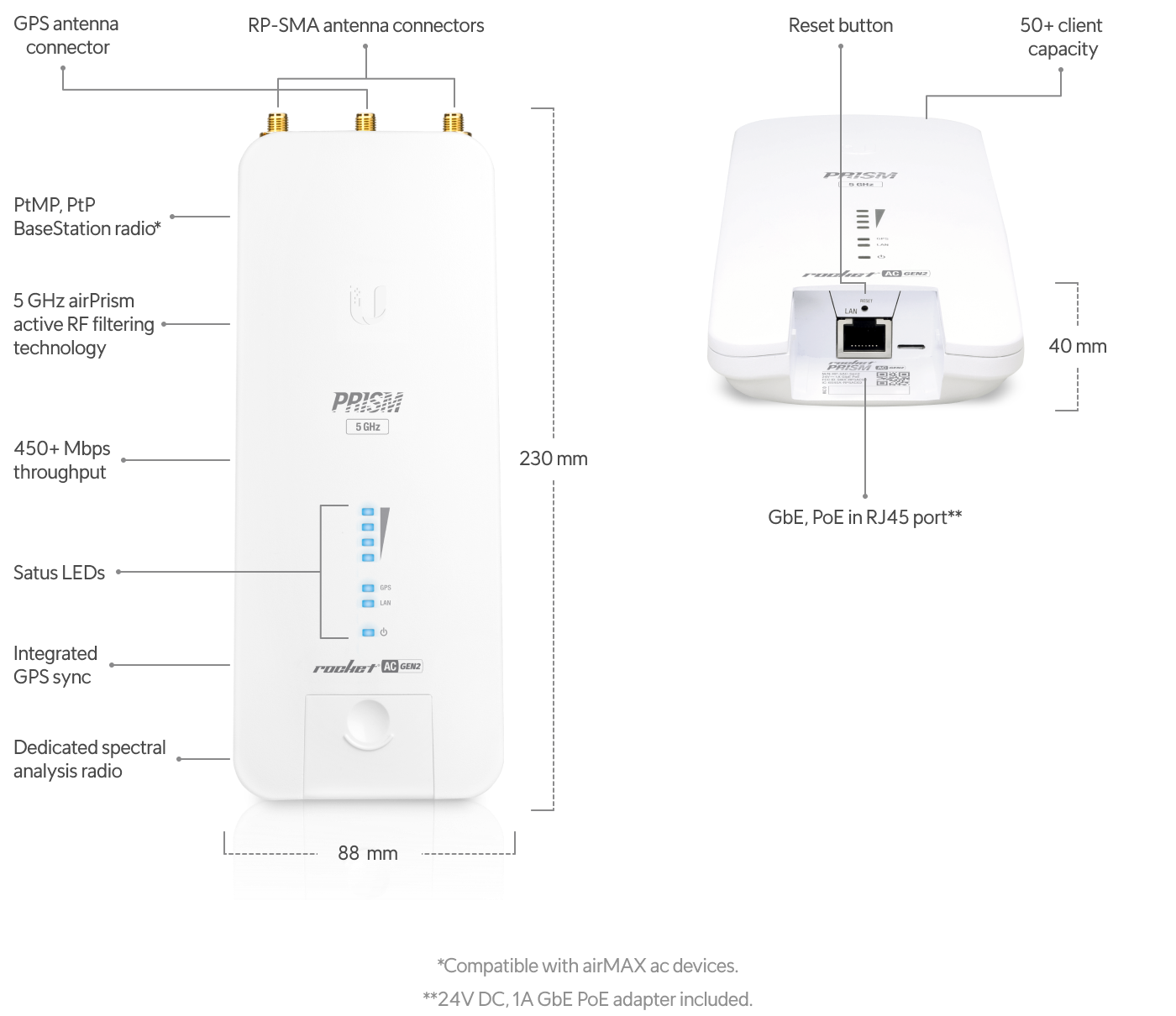

The Ubiquiti Rocket AC Prism Gen2 (RP-5AC-GEN2) is a high-performance 5 GHz airMAX ac base station radio designed for demanding PtMP and PtP links, delivering up to 500+ Mbps real TCP/IP throughput with airPrism active RF filtering for superior interference rejection. Its integrated GPS sync enables precise frame synchronization for co-located deployments, supporting 50+ clients and enhancing network stability in high-density environments. Ideal for ISPs and enterprises needing reliable, scalable outdoor wireless connectivity.
Key Features
- airMAX ac Technology – Provides up to 500+ Mbps throughput using TDMA protocol for low latency and high scalability in PtMP setups.
- airPrism Active RF Filtering – Improves SNR by rejecting up to 30+ dB of interference, enabling efficient co-location and spectrum reuse.
- Integrated GPS Sync – Enables synchronized transmission/reception for multiple units, reducing interference and boosting stability (airOS v8.3.0+).
- High Client Capacity – Supports 50+ to 100 airMAX ac stations, perfect for dense PtMP networks with sector antennas.
- Dedicated 2.4 GHz Management Radio – Allows easy setup and monitoring via UNMS app without disrupting the main 5 GHz link.
Full Specifications
| Category | Details |
|---|---|
| Model | RP-5AC-Gen2 |
| Dimensions | 88 x 40 x 230 mm (3.47 x 1.58 x 9.06″) |
| Weight | 400 g (14.1 oz) |
| Enclosure | Die-cast aluminum |
| Mounting | Pole mounting (kit included) |
| Networking Interface | (1) GbE RJ45 port (10/100/1000 Ethernet) |
| RF Connectors | (2) RP-SMA (waterproof), (1) GPS (waterproof) |
| Max Power Consumption | 9.5 W |
| Power Method | Passive PoE (pairs 4,5+; 7,8 return) |
| Power Supply | 24V, 1A Gigabit PoE adapter (included) |
| Supported Voltage | 18–27 VDC |
| Processor | Atheros MIPS 74Kc |
| Memory | 128 MB DDR2 SDRAM |
| Operating Frequency (Worldwide) | 5150–5875 MHz |
| Management Radio (Worldwide) | 2412–2472 MHz |
| Channel Widths (PtP) | 10/20/30/40/50/60/80 MHz |
| Channel Widths (PtMP) | 10/20/30/40 MHz |
| Max Throughput | 500+ Mbps (80 MHz PtP) |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD Protection | ±24 kV contact/air (Ethernet) |
| Certifications | CE, FCC, IC, RoHS; NDAA Compliant |
| LEDs | (4) Signal strength (software-adjustable), GPS, LAN, Power |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum throughput of the RP-5AC-GEN2? Up to 500+ Mbps real TCP/IP throughput in PtP with 80 MHz channels; up to 330+ Mbps in PtMP with 40 MHz channels.
- Q: How many clients can it support? Up to 100 airMAX ac stations in PtMP mode, with real-world deployments handling 50+ clients effectively.
- Q: Does it support GPS synchronization? Yes, integrated GPS sync (firmware airOS v8.3.0+) enables co-located units to transmit without interference for better frequency reuse.
- Q: What antennas are compatible? Pairs with airMAX ac sector antennas for PtMP or RocketDish for PtP; certified up to 34 dBi dish, 22 dBi sector, 13 dBi omni.
- Q: How do I access the management interface? Uses dedicated 2.4 GHz Wi-Fi radio; connect via UNMS app or web UI at default IP (192.168.1.20) after PoE connection.
| Weight | 0.94 kg |
|---|---|
| Dimensions | 116 × 262 × 94 mm |
| Product Create Date | 14/03/2017 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | RP-5AC-GEN2 |
| Opt Accessory | NHU-AM-5G20-90, NHU-EXTWAR-UBNT-2YR, NHU-EXTWAR-UBNT-3YR, NHU-POE-24-24WG, NHU-EXTWAR-UBNT-5YR |
