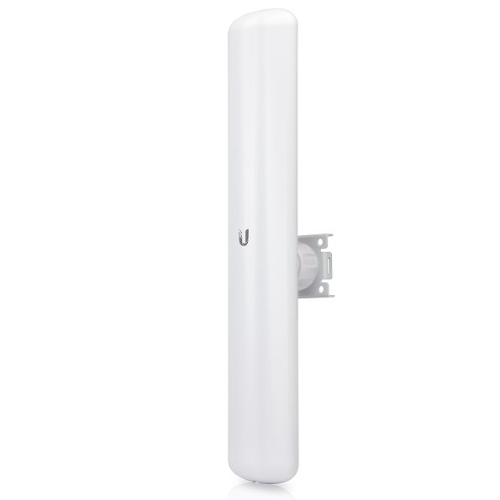

Ubiquiti LiteBeam AC All-in-one, 802.3AC AirMax Radio with 16dBi 120 deg 5GHz Sector Antenna
$170.17 inc GST
Manufacturer: Ubiquiti
Availability: BRS:17 Jun ADL:17 Jun SYD:107 MEL:17 Jun WA:17 Jun
107 in stock
Ubiquiti airMAX Lite AP
Description: Ultra-lightweight, 5 GHz access point with a versatile, ball-join mount.
SKU:LAP-120
Tech Specs: Click Here
Features:
•Integrated 5 GHz antenna, 10+ km link range
•450+ Mbps throughput
•50+ client capacity
•Dedicated spectral analysis radio
Why Choose This?
The Ubiquiti LAP-120 is an ultra-lightweight 5 GHz airMAX AC access point featuring an integrated 16 dBi 120° sector antenna, delivering up to 450+ Mbps real TCP/IP throughput for cost-effective PtMP deployments. Ideal for WISPs and outdoor networks, it offers versatile ball-joint mounting, long-range performance, and rugged durability in harsh environments with wind survivability up to 200 km/h. Its low power consumption and easy installation make it a reliable, high-value solution for extending wireless coverage to multiple clients.
Key Features
- Integrated 16 dBi 120° sector antenna – provides wide coverage for point-to-multipoint networks serving 50+ clients
- Up to 450+ Mbps throughput – enables high-speed wireless broadband over Gigabit Ethernet
- airOS v8 software – supports PtMP AP mode, airMAX AC protocol, auto channel selection, and WPA2 security for optimized performance
- Versatile ball-joint mount – allows quick, tool-free adjustment for precise aiming and flexible installation
- Rugged outdoor design – withstands extreme weather with -40 to 70°C operation, ±24kV ESD protection, and 200 km/h wind rating
Full Specifications
| Category | Details |
|---|---|

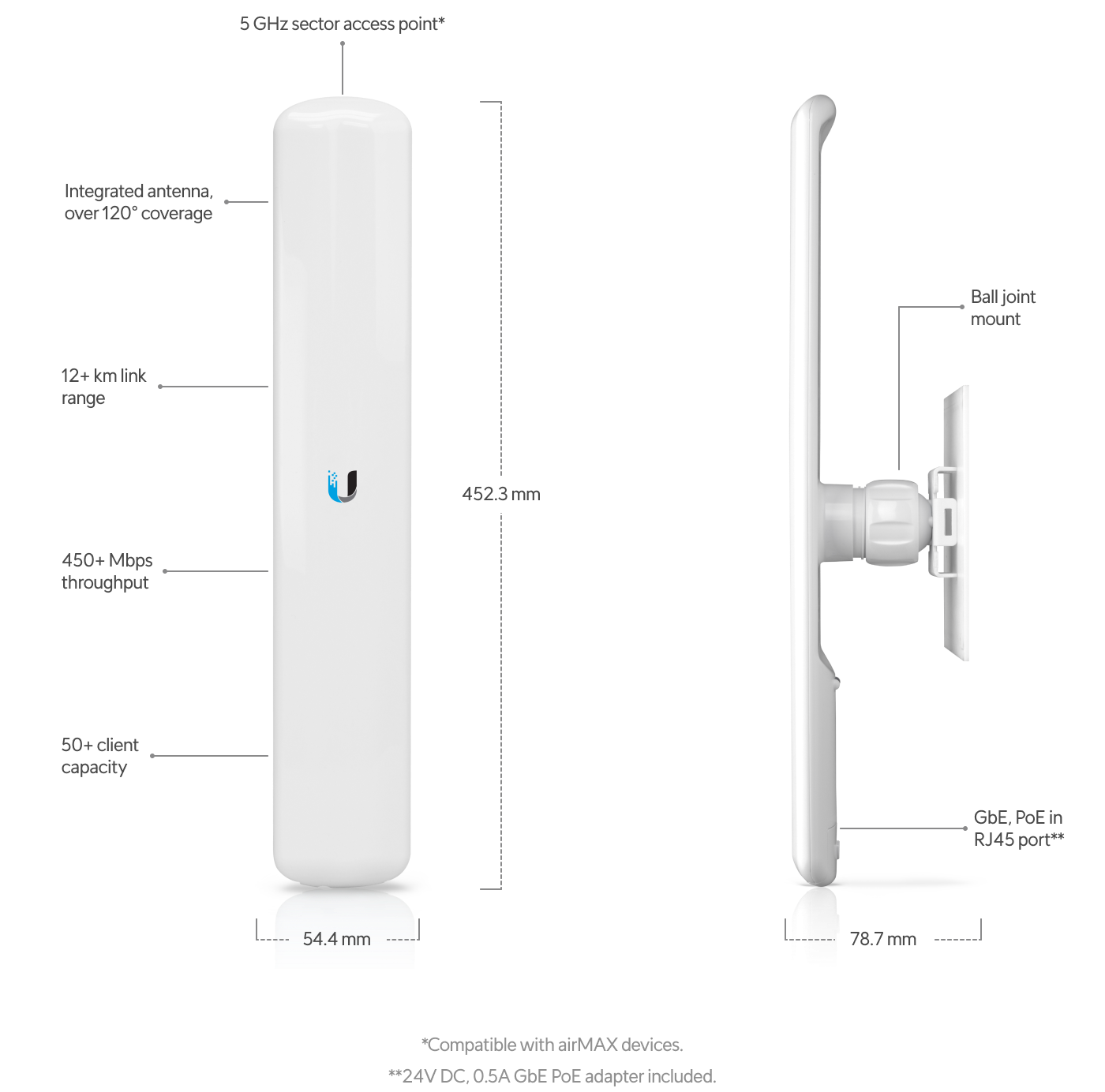

| Dimensions (Mount Not Included) | 452.3 x 78.7 x 54.4 mm (17.81 x 3.10 x 2.14″) |
| Weight (Mount Not Included) | 420 g (14.82 oz) |
| Antenna Gain | 16 dBi (integrated 120° sector, 2×2 MIMO) |
| Networking Interface | (1) 10/100/1000 GbE RJ45 port |
| Max. Power Consumption | 7-8W |
| Max. TX Power | 25 dBm |
| Processor | Atheros MIPS 74Kc, 533 MHz |
| Memory | 64 MB |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (included) |
| Supported Voltage Range | 20-27 VDC |
| Operating Frequency (Worldwide) | 5150-5875 MHz |
| Operating Frequency (US) | U-NII-1: 5150-5250; U-NII-2A: 5250-5350; U-NII-2C: 5470-5725; U-NII-3: 5725-5850 MHz |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% non-condensing |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 77 N @ 200 km/h (17.3 lbf @ 125 mph) |
| ESD/EMP Protection | ±24 kV contact/air |
| Shock and Vibration | ETSI300-019-1.4, EN 302 326 DN2 |
| Certifications | FCC, IC, CE, RoHS, NDAA Compliant |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What modes does the LAP-120 support? Access Point PtMP with airMAX AC/mixed mode, PtP bridge mode, selectable channel widths up to 80 MHz (PtP) or 40 MHz (PtMP).
- Q: What is the typical range and client capacity? Capable of 10+ km links; supports 50+ clients in PtMP setups depending on environment and configuration.
- Q: Does it require active or passive PoE? Passive PoE (24V, pairs 4,5+ and 7,8 return); includes 24V 0.5A Gigabit PoE adapter.
- Q: How do I reset the device? Press and hold reset button >10 seconds while powered; or use reset on PoE adapter. Firmware recovery via TFTP if needed.
- Q: Is it suitable for outdoor use in harsh weather? Yes, rated -40 to 70°C, 5-95% humidity, 200 km/h wind, with IP-rated enclosure and ESD protection.
| Weight | 0.94 kg |
|---|---|
| Dimensions | 478 × 104 × 78 mm |
| Product Create Date | 13/07/2018 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | LAP-120 |
| Opt Accessory | NHU-POE-24-12WG |
