TP-Link SM6110-LR Omada 25GBase-LR SFP28 LC Transceiver, Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X
$113.05 $109.66 inc GST
Manufacturer: TP-LINK
Availability: BRS:0 ADL:2 SYD:1 MEL:2 WA:0
5 in stock

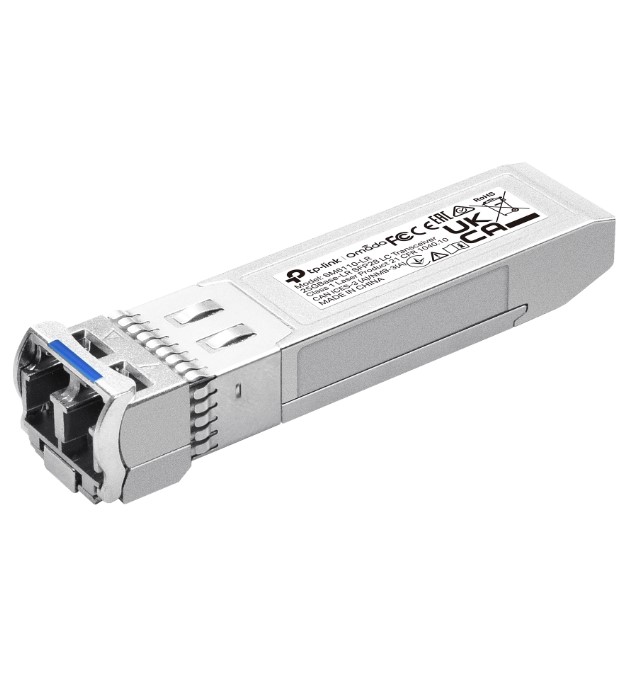

TP-Link SM6110-LR Omada 25GBase-LR SFP28 LC Transceiver
• Single-mode SFP+/SFP28 LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Low Power Consumption no more than 1.2 W
• Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
• Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
Warranty Period: 3-Year
Why Choose This?
The TP-Link SM6110-LR Omada 25GBase-LR SFP28 LC Transceiver delivers high-performance 10G/25G Ethernet connectivity over single-mode fiber up to 10 km, perfect for extending network reach in data centers and enterprise environments. Its hot-pluggable design, low power consumption of just 1.2 W, and Digital Diagnostic Monitoring (DDM) ensure seamless integration, flexibility, and real-time performance tracking. Compatible with TP-Link Omada switches like the SX6632YF (25G ports) and SG3428X/SG3452X (10G ports), it future-proofs your infrastructure for ultra-high-speed demands.
Key Features
- Single-mode SFP+/SFP28 LC Transceiver – Supports dual-rate 10.31/25.78 Gbps for versatile 10G/25G Ethernet links up to 10 km.
- Hot-Pluggable – Allows maximum flexibility for easy installation and maintenance without network downtime.
- Digital Diagnostic Monitoring (DDM) – Provides real-time monitoring of key parameters like temperature, voltage, and optical power.
- Low Power Consumption ≤1.2 W – Reduces energy costs and heat generation in high-density deployments.
- SFP+/SFP28 MSA Compliant – Ensures broad compatibility with TP-Link Omada switches and standard multi-vendor equipment.
Full Specifications
| Category | Details |
|---|---|
| Model | SM6110-LR |
| Form Factor | SFP+/SFP28 |
| Data Rate | Dual Rate: 10.31 Gbps / 25.78 Gbps |
| Wavelength | 1310 nm |
| Fiber Type | 9/125 μm Single-Mode Fiber (SMF) |
| Max. Distance | 10 km |
| Connector | Duplex LC/UPC |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| Transmitter Power (@25G) | -7 to 2 dBm |
| Transmitter Power (@10G) | -8.2 to 0.5 dBm |
| Receiver Sensitivity (@25G) | < -13.3 dBm |
| Receiver Sensitivity (@10G) | < -14.4 dBm |
| Receiver Overload (@25G) | > 2 dBm |
| Receiver Overload (@10G) | > 0.5 dBm |
| Extinction Ratio (@25G) | > 3 dB |
| Extinction Ratio (@10G) | > 3.5 dB |
| Power Supply | 3.3 V |
| Power Consumption | ≤ 1.2 W |
| DDM Support | Yes |
| Hot Swappable | Yes |
| Standards and Protocols | IEEE 802.3ae, 802.3cc; SFF-8402, SFF-8431, SFF-8432, SFF-8472; eCPRI, CPRI; TCP/IP |
| Dimensions (W x D x H) | 57 x 13.9 x 11.72 mm (2.24 x 0.55 x 0.47 in) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Certifications | CE, FCC, RoHS |
| Compatibility | Switches with 25G ports like SX6632YF; 10G ports like SG3428X, SG3452X; SFP+/SFP28 MSA |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What speeds does the SM6110-LR support? It supports dual rates of 10.31 Gbps (10GBASE-LR) and 25.78 Gbps (25GBASE-LR) for full-duplex Ethernet connections.
- Q: What is the maximum transmission distance? Up to 10 km over 9/125 μm single-mode fiber.
- Q: Is it hot-pluggable? Yes, it is fully hot-pluggable for installation without powering down equipment.
- Q: Does it support DDM? Yes, Digital Diagnostic Monitoring allows real-time tracking of optical signal strength, temperature, and voltage.
- Q: Which TP-Link switches is it compatible with? Compatible with 25G ports on switches like SX6632YF and 10G ports on SG3428X and SG3452X, plus SFP+/SFP28 MSA standards.
| Weight | 0.06 kg |
|---|---|
| Dimensions | 122 × 82 × 38 mm |
| Product Create Date | 15/05/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 36 |
| Manufacturer SKU | SM6110-LR |
