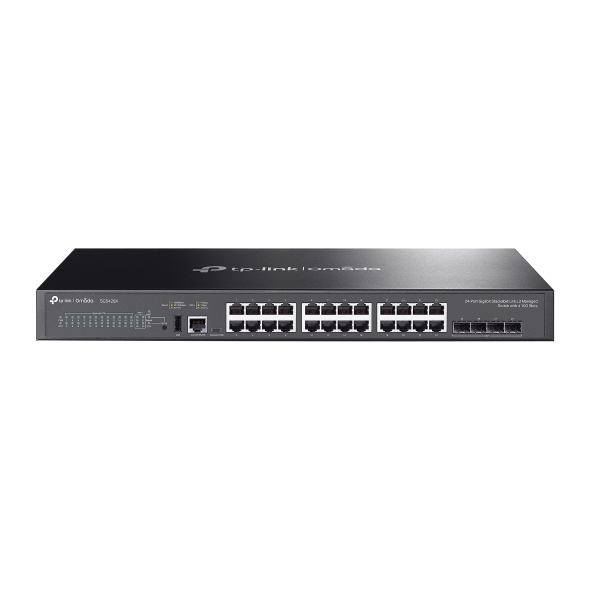

TP-Link SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
$918.68 $891.12 inc GST
Manufacturer: TP-LINK
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock
TP-Link SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G Slots
• 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
• 128 Gbps switching capacity per unit
• Physical stacking up to 4 units for built-in redundancy and performance
• L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
• Security strategies: ACL, Port Security, DoS Defend, 802.1X
• ERPS supports rapid protection and recovery in a ring topology
• Centralised cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON
Warranty Period: 5-Year
Why Choose This?
The TP-Link SG5428X Omada 24-Port Gigabit Stackable Lite L3 Managed Switch delivers high-performance networking for SMEs and ISPs with 24 Gigabit RJ45 ports and 4× 10G SFP+ slots for ultra-fast uplinks and seamless scalability. Its physical stacking up to 4 units provides built-in redundancy and up to 128 Gbps switching capacity per unit, ensuring reliable performance in demanding environments. Integrated Omada SDN enables centralized cloud management, advanced L3 routing like OSPF and RIP, and robust security features for effortless deployment and protection.
Key Features
- 24× Gigabit RJ45 + 4× 10G SFP+ Slots – Enables high-speed access and backbone connectivity with 128 Gbps capacity for bandwidth-intensive applications.
- Physical Stacking up to 4 Units – Delivers up to 80 Gbps stacking bandwidth for redundancy, simplified management, and scalable expansion.
- Layer 3 Routing (RIP, OSPF, Static) – Supports efficient inter-VLAN routing and DHCP services to build scalable networks without extra routers.
- ERPS Ring Protection – Ensures rapid failover (<50ms) in ring topologies for high availability and minimal downtime.
- Omada SDN Integration – Provides zero-touch provisioning, cloud-based centralized control, and intelligent monitoring for easy management.
Full Specifications
| Category | Details |
|---|---|
| Manufacturer | TP-Link |
| Model | SG5428X |
| Ports (RJ45) | 24 × 10/100/1000 Mbps Gigabit Ethernet Ports |
| Ports (SFP+) | 4 × 1/10 Gbps SFP+ Slots (Note: Only one 10G RJ45 SFP+ module at a time) |
| Console Ports | 1 × RJ45 + 1 × USB Type-C |
| USB Port | 1 × USB 2.0 |
| Processor | Dual-Core ARM @1.2 GHz |
| DRAM | 2 GB DDR4 |
| Flash | 4 MB NOR + 512 MB NAND |
| Switching Capacity | 128 Gbps (per unit) |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K entries |
| Packet Buffer | 12 Mbit |
| Jumbo Frame | 9 KB |
| Stacking | Up to 4 units; 80 Gbps bandwidth via 10G SFP+ ports; Compatible: SG5428X, SG5428XMPP, SG5452X, SG5452XMPP |
| Power Supply | 100-240 VAC ~ 50/60 Hz |
| Max Power Consumption | 19.9 W |
| Fan | Fanless |
| Dimensions (W×D×H) | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) |
| Operating Temperature | -5–45°C (23–113°F) |
| L3 Features | Static Routing (IPv4:512, IPv6:128), RIP v1/v2, OSPF v2/v3, DHCP Server/Relay, VRRP |
| Security | ACL (IPv4/IPv6), 802.1X, Port Security, DoS Defend, Dynamic ARP Inspection |
| Management | Omada SDN, Web/CLI/SNMP/RMON, Zero-Touch Provisioning |
| Certifications | CE, FCC, RoHS |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: Does the SG5428X support physical stacking? Yes, it supports stacking up to 4 units using 10G SFP+ ports for up to 80 Gbps bandwidth, providing redundancy and unified management.
- Q: What Layer 3 features are available? Includes static routing (IPv4/IPv6), RIP v1/v2, OSPF v2/v3, VRRP, and DHCP server/relay for inter-VLAN routing and scalable networks.
- Q: Is it managed via Omada SDN? Yes, fully integrated with Omada SDN for centralized cloud management, zero-touch provisioning, and intelligent monitoring via controller.
- Q: Does it support PoE? No, the SG5428X is a non-PoE model; for PoE, consider the SG5428XMPP variant with 500W budget.
- Q: What are the environmental specs for deployment? Fanless design, operates -5°C to 45°C, rackmount 1U, with surge protection on ports (±6kV) and power (±4kV).
| Weight | 2.91 kg |
|---|---|
| Dimensions | 530 × 280 × 100 mm |
| Product Create Date | 17/01/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | SG5428X |
