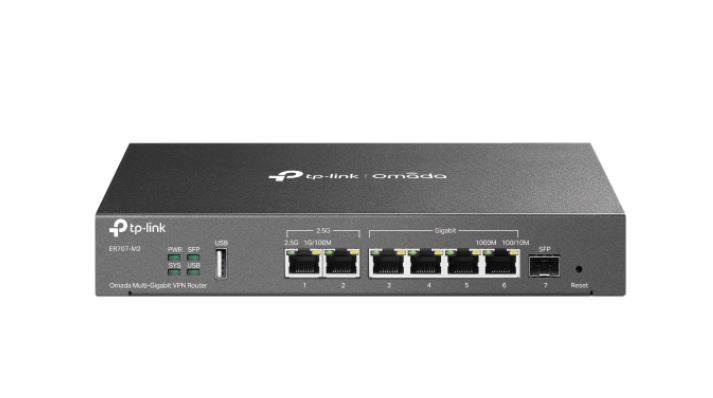

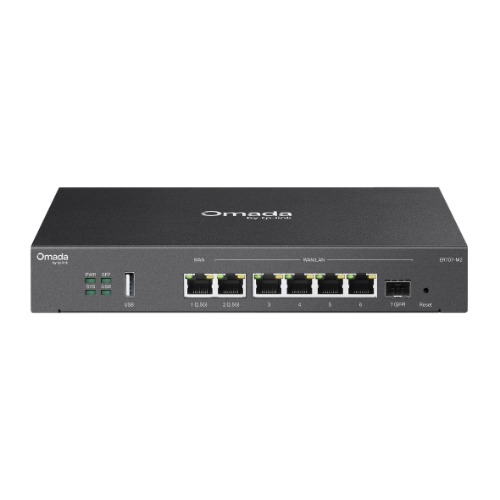

TP-Link ER707-M2 Omada Multi-Gigabit VPN Router Omada, 2x 2.5Gbps RJ45, 5x Gigabit (1xSFP + 4x RJ45), Load Balance, 1x USB, High Security VPN
$255.85 $248.17 inc GST
Manufacturer: TP-LINK
Availability: BRS:24 Jun ADL:2 SYD:24 Jun MEL:24 Jun WA:4
6 in stock
TP-Link ER707-M2 Omada Multi-Gigabit VPN Router (Project Based Only)
• Two 2.5G Ports: 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
• Up to 6 WAN Ports: 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
• Highly Secure VPN: Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN OpenVPN are ideal for use across multiple branches and for WFH.
• Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.
• Centralized Management: Cloud access and Omada app provide the utmost in management convenience.
• Extensive Security Features: Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.
Warranty Period: 5-Year
Why Choose This?
The TP-Link ER707-M2 Omada Multi-Gigabit VPN Router delivers blazing-fast multi-gigabit connectivity with dual 2.5Gbps RJ45 ports and up to 6 WAN ports for load balancing, maximizing your broadband utilization in demanding environments like offices, retail, or hotels. It offers enterprise-grade security through high-performance VPN protocols including IPSec, SSL, OpenVPN, and WireGuard, alongside advanced features like DPI, IPS/IDS, and DoS protection. Centralized Omada SDN cloud management simplifies deployment and monitoring for scalable business networks.
Key Features
- Dual 2.5Gbps RJ45 Ports (1 WAN, 1 WAN/LAN) – Enables high-bandwidth aggregation for multi-gigabit internet speeds.
- Up to 6 WAN Ports with Load Balancing – Optimizes multi-line broadband usage for reliable, high-throughput connections.
- High-Security VPN Support (IPSec, SSL, OpenVPN, WireGuard) – Secures remote access and branch connectivity with up to 100 IPSec tunnels.
- Advanced Security (DPI, IPS/IDS, DoS Defense) – Protects against threats with deep packet inspection and signature-based detection.
- Omada SDN Centralized Management – Allows cloud-based control via app or web for easy monitoring and zero-touch provisioning.
Full Specifications
| Category | Details |
|---|---|
| Manufacturer | TP-Link |
| Model | ER707-M2 |
| CPU | Dual-core ARMv8 |
| DRAM | 1 GB DDR4 |
| Flash | 128 MB NAND |
| Ports | 1× 2.5G RJ45 WAN, 1× 2.5G RJ45 WAN/LAN, 1× Gigabit SFP WAN/LAN, 4× Gigabit RJ45 WAN/LAN, 1× USB 2.0 |
| Concurrent Sessions | 500,000 |
| New Sessions/Second | 6,000 |
| NAT Throughput (Static IP) | 2365.17 Mbps (Upload) / 2364.45 Mbps (Download) |
| DPI Throughput | TCP: 1823 Mbps, UDP: 1272 Mbps |
| IPSec VPN Throughput | ESP-SHA1-AES256: 673.3 Mbps |
| OpenVPN Throughput | 135.0 Mbps |
| WireGuard VPN Throughput | 343 Mbps |
| Dimensions (W x D x H) | 226 × 131 × 35 mm (8.9 × 5.2 × 1.4 in) |
| Weight | 0.886 kg |
| Power Supply | 12V/1.5A Adapter |
| Max Power Consumption | 14.2 W (with USB), 7.1 W (without USB) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Certifications | CE, FCC, RoHS |
| Mounting | Desktop / Wall / Rackmount |
| Fan | Fanless |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: How many WAN ports does the ER707-M2 support? Up to 6 WAN ports (1× 2.5G WAN fixed, plus configurable WAN/LAN ports including SFP) with load balancing for multi-line broadband optimization.
- Q: What VPN protocols are supported? IPSec (100 tunnels), SSL (60 tunnels), OpenVPN (66 tunnels), WireGuard, PPTP/L2TP (60 tunnels shared), GRE (standalone mode only).
- Q: Does it support LTE backup? Yes, via USB 2.0 port with compatible LTE/4G/3G dongle for failover connectivity.
- Q: Can it be managed centrally? Yes, via Omada SDN with cloud-based controller, hardware controller, or software controller for zero-touch provisioning and app/web access.
- Q: What management modes are available? Standalone mode for independent configuration or Controller mode for Omada SDN centralized management.
| Weight | 1.44 kg |
|---|---|
| Dimensions | 328 × 242 × 76 mm |
| Product Create Date | 12/04/2023 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 50 |
| Manufacturer SKU | ER707-M2 |
| Opt Accessory | NHTL-OC200, NHTL-OC300, CSP-LIC-OCC-1YR, CSP-LIC-OCC-3YR, CSP-LIC-OCC-5YR |
