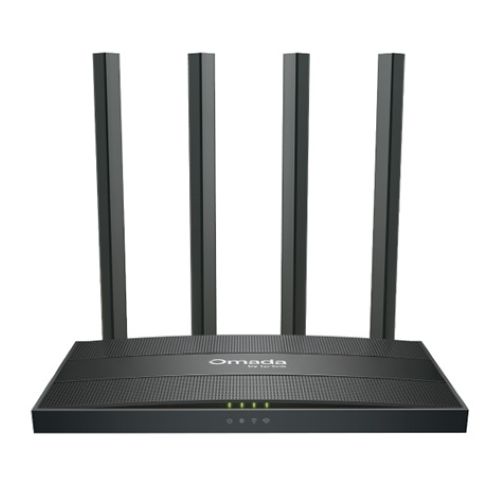

TP-Link ER605W Omada AC1200 Gigabit Wi-Fi Gateway, 1× Gigabit RJ45 WAN Port, 2× Gigabit WAN/LAN RJ45 Ports, 2× Gigabit LAN RJ45 Ports
$122.57 $118.89 inc GST
Manufacturer: TP-LINK
Availability: BRS:6 ADL:10 SYD:83 MEL:26 WA:8
133 in stock
TP-Link ER605W Omada AC1200 Gigabit Wi-Fi Gateway
• AC1200 Dual-Band Wi-Fi (867 Mbps on 5 G + 300 Mbps on 2.4 G)*
• 5× Gigabit Ethernet Ports Provide High-Speed Connectivity
• 4× High-Gain External Antennas for Boosted Coverage
• Load Balancing on up to 3× WAN Ports
• IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE△ VPN
• DoS Defence, IP/MAC/URL Filtering, and More Abundant Security Features
• Centralised Cloud Management via Web and Omada App
Warranty Period: 5-Year
Why Choose This?
The TP-Link ER605W Omada AC1200 Gigabit Wi-Fi Gateway is an all-in-one solution for small businesses, retail shops, and branch offices, combining high-speed AC1200 dual-band Wi-Fi with robust multi-WAN load balancing across up to 3 Gigabit WAN ports for reliable connectivity and maximized bandwidth utilization. Its advanced VPN support—including IPSec, OpenVPN, WireGuard, PPTP, L2TP, and GRE—ensures secure remote access, while centralized Omada SDN cloud management simplifies deployment and monitoring via app or web. With enhanced security features like DoS defense, IP/MAC/URL filtering, and a powerful SPI firewall, it delivers enterprise-grade performance in a compact, wall-mountable design.
Key Features
- AC1200 Dual-Band Wi-Fi (867 Mbps at 5 GHz + 300 Mbps at 2.4 GHz) – Provides seamless wireless coverage for HD streaming, video conferencing, and daily tasks with 4 high-gain 5 dBi antennas.
- 5 Gigabit Ethernet Ports (1 WAN, 2 WAN/LAN, 2 LAN) – Enables high-speed wired connections and flexible multi-WAN load balancing/failover for optimized internet usage.
- Multiple VPN Protocols (IPSec, OpenVPN, WireGuard, PPTP, L2TP, GRE) – Supports up to 18 OpenVPN tunnels and secure site-to-site/client-to-site connections with high throughput like 185.9 Mbps IPSec.
- Omada SDN Centralized Management – Cloud access via Omada App or controller for zero-touch provisioning, intelligent monitoring, unified configuration, and remote management.
- Advanced Security & Firewall – Includes DoS defense, IP/MAC/URL filtering, SPI firewall, ALG support, and VLANs to protect against threats and segment networks effectively.
Full Specifications
| Category | Details |
|---|---|
| Product Model | ER605W Omada AC1200 Gigabit Wi-Fi Gateway |
| Interface | 1× Gigabit RJ45 WAN Port, 2× Gigabit RJ45 WAN/LAN Ports, 2× Gigabit RJ45 LAN Ports |
| Wi-Fi Speed | 2.4 GHz: 300 Mbps; 5 GHz: 867 Mbps (AC1200) |
| Antennas | 2.4 GHz: 2× 5 dBi non-detachable; 5 GHz: 2× 5 dBi non-detachable (4 total high-gain) |
| Flash | 128 MB NAND |
| DRAM | 256 MB DDR3 |
| Dimensions (W x D x H) | 8.5 × 4.6 × 1.2 in (215 × 117 × 31-32 mm) |
| Mounting | Desktop / Wall-mounting |
| Power Supply | 12 V DC / 1 A Power Adapter |
| Max Power Consumption | EU: 9 W; US: 10.3 W |
| Concurrent Sessions | 50,000 |
| New Sessions/Second | 2,028 |
| NAT Throughput (Static IP) | 909.3 Mbps (upload) / 937.5 Mbps (download) |
| IPSec VPN Throughput (AES256) | Up to 185.9 Mbps (ESP-SHA256-AES256) |
| WireGuard VPN Throughput | 71.2 Mbps |
| OpenVPN Throughput | 16.8 Mbps |
| Standards & Protocols | IEEE 802.3/3u/3ab/3x/802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP/HTTPS, DNS, PPTP, L2TP |
| Operating Temperature | 0–40°C (32–104°F) |
| Certifications | CE, FCC, RoHS |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: Does the ER605W support multi-WAN load balancing? Yes, it supports load balancing and failover on up to 3 WAN ports (1 dedicated WAN + 2 configurable WAN/LAN) with intelligent algorithms, online detection, and application-optimized routing.
- Q: What VPN protocols are supported? IPSec (6 tunnels), PPTP/L2TP (6 each), OpenVPN (18 tunnels), WireGuard, and GRE (standalone mode only), with high throughput and features like NAT-T, DPD, and PFS.
- Q: Can it be managed remotely? Yes, via Omada SDN with cloud access through the Omada App, software/hardware controllers for centralized management, zero-touch provisioning, monitoring, and configuration.
- Q: Is Wi-Fi included, and what are the speeds? Yes, AC1200 dual-band Wi-Fi: up to 300 Mbps on 2.4 GHz for everyday use and 867 Mbps on 5 GHz for HD streaming, with multiple SSIDs, band steering, and WPA/WPA2 security.
- Q: What security features does it offer? SPI firewall, DoS defense, IP/MAC/URL filtering, VLAN support, IP-MAC binding, ALGs for FTP/SIP/IPSec, and session limits for robust network protection.
| Weight | 0.84 kg |
|---|---|
| Dimensions | 352 × 242 × 80 mm |
| Product Create Date | 25/08/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | ER605W |
