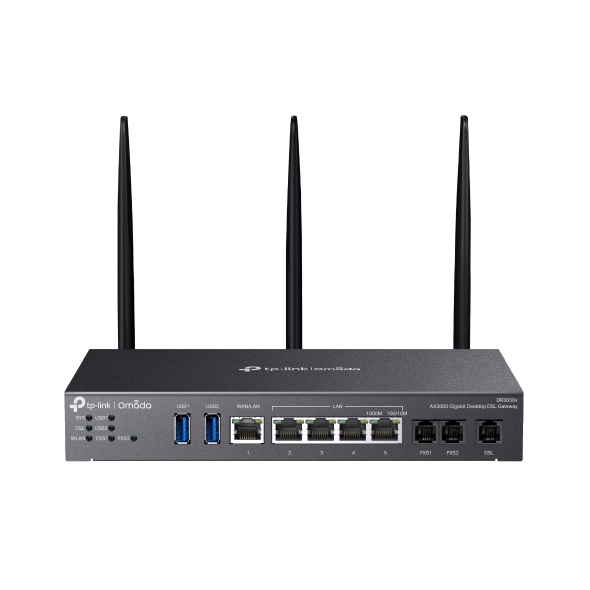

TP-Link DR3650v Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway, [email protected] + 2402Mbps@5GHz(HE160), VDSL2 35b 350/60, VoIP
$287.98 $279.34 inc GST
Manufacturer: TP-LINK
Availability: BRS:5 ADL:2 SYD:0 MEL:0 WA:2
9 in stock
TP-Link DR3650v Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
• AX3000 Wi-Fi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*1*4
• VDSL2 35b: Supports 350Mbps DSL Access*2
• VDSL2/ADSL2+/ADSL2/ADSL Compatibility
• Centralised Cloud Management
• IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
• Load Balancing Between DSL and Ethernet WAN
• Omada Mesh Technology*3
• 3 × RJ11 Ports (2 × FXS, 1 × DSL) 5 × RJ45 Gigabit Ports 2 × USB 3.0 Ports
• Desktop/Wall Mounting
• 8.9 × 5.2 × 1.4 in (226 × 131.2 × 35 mm)
Warranty Period: 5-Year
Why Choose This?
The TP-Link DR3650v Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway delivers blazing-fast internet via VDSL2 35b up to 350 Mbps, combined with AX3000 Wi-Fi 6 speeds of 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz for seamless connectivity in small to medium businesses. It integrates VoIP support with dual FXS ports, robust multi-WAN load balancing, and enterprise-grade VPN options like IPSec, WireGuard, and OpenVPN, all managed centrally via Omada SDN for effortless scalability and security.
Key Features
- AX3000 Wi-Fi 6 (574 Mbps 2.4 GHz + 2402 Mbps 5 GHz HE160) – Provides high-speed, efficient wireless coverage with OFDMA, MU-MIMO, and Beamforming for more devices.
- VDSL2 35b DSL Modem (up to 350 Mbps) – Ensures reliable broadband access with backward compatibility for ADSL2+/ADSL2/ADSL.
- Built-in VoIP with 2 FXS Ports – Enables cost-effective voice calls supporting SIP, G.711/G.729 codecs, call waiting, forwarding, and voicemail.
- Multi-WAN Load Balancing & Failover – Optimizes bandwidth and uptime using DSL, Ethernet WAN, or USB 3G/4G dongles.
- Advanced VPN Support (IPSec 100 tunnels, WireGuard, OpenVPN) – Secures remote access with high throughput up to 569 Mbps IPSec.
Full Specifications
| Category | Details |
|---|---|
| Product Model | DR3650v Omada AX3000 Gigabit Desktop DSL Gateway |
| Wi-Fi Speed | 2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps (HE160) |
| DSL Standards | VDSL2 35b (up to 350 Mbps), VDSL2 (Profiles 8a/b/c/d/12a/b/17a/35b), ADSL2+, ADSL2, ADSL |
| Interfaces | 5 × Gigabit RJ45 (1 WAN/LAN, 4 LAN); 3 × RJ11 (1 DSL, 2 FXS); 2 × USB 3.0 |
| Antennas | 2 × 3 dBi (2.4 GHz), 3 × 4.5 dBi (5 GHz) dual-band detachable |
| Flash / DRAM | 256 MB NAND / 512 MB DDR4 |
| Dimensions (W x D x H) | 226 × 131 × 35 mm (8.9 × 5.2 × 1.4 in, antennas excluded) |
| Power Supply | 12 V DC / 3.3 A |
| Max Power Consumption | 35.21 W (full load + USB 10 W) |
| Mounting | Desktop / Wall / Rack (kit D226 separate) |
| Concurrent Sessions | 150,000 |
| New Sessions/Second | 3,800 |
| NAT Throughput (PPPoE) | 942.9 Mbps upload/download |
| IPSec VPN Throughput | Up to 569.9 Mbps (ESP-SHA1-AES256) |
| WireGuard VPN Throughput | 311.6 Mbps |
| VoIP Protocols | RTP/RTCP, SIP (12 registrars); Codecs: G.711 A/μ, G.726, G.729 A/B, G.722 |
| VPN Types | IPSec (100 tunnels), PPTP/L2TP (50 tunnels each), OpenVPN (55 tunnels), WireGuard (20), SSL (50), GRE |
| Wireless Features | OFDMA, MU-MIMO, Beamforming, Seamless Roaming, Omada Mesh, WPA3 |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: Does the DR3650v work in standalone mode without Omada controller? Yes, it supports standalone mode for basic functions; Omada SDN controller enables advanced centralized management.
- Q: What DSL speeds does it support? Up to 350 Mbps download with VDSL2 35b profile; compatible with VDSL2, ADSL2+, ADSL2, and ADSL.
- Q: Can USB ports be used for NAS storage? No, USB 3.0 ports support LTE/3G dongles and storage but lack SMB 3.0 for full NAS functionality.
- Q: How many VPN tunnels are supported? IPSec: 100; PPTP/L2TP: 50 each (10 clients); OpenVPN: 55 (5 clients); WireGuard: 20; SSL: 50.
- Q: Is VoIP setup straightforward? Yes, supports SIP with features like call waiting/forwarding; manual registrar entry may require firmware checks for registration issues.
| Weight | 2 kg |
|---|---|
| Dimensions | 300 × 300 × 100 mm |
| Product Create Date | 10/04/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | DR3650v |
