Ubiquiti UISP Horn, High-isolation 30°, Point-to-multipoint (PtMP), 5.15 – 6.875 Ghz Frequency Range, 15+ km PtMP Link Range,
$355.81 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock

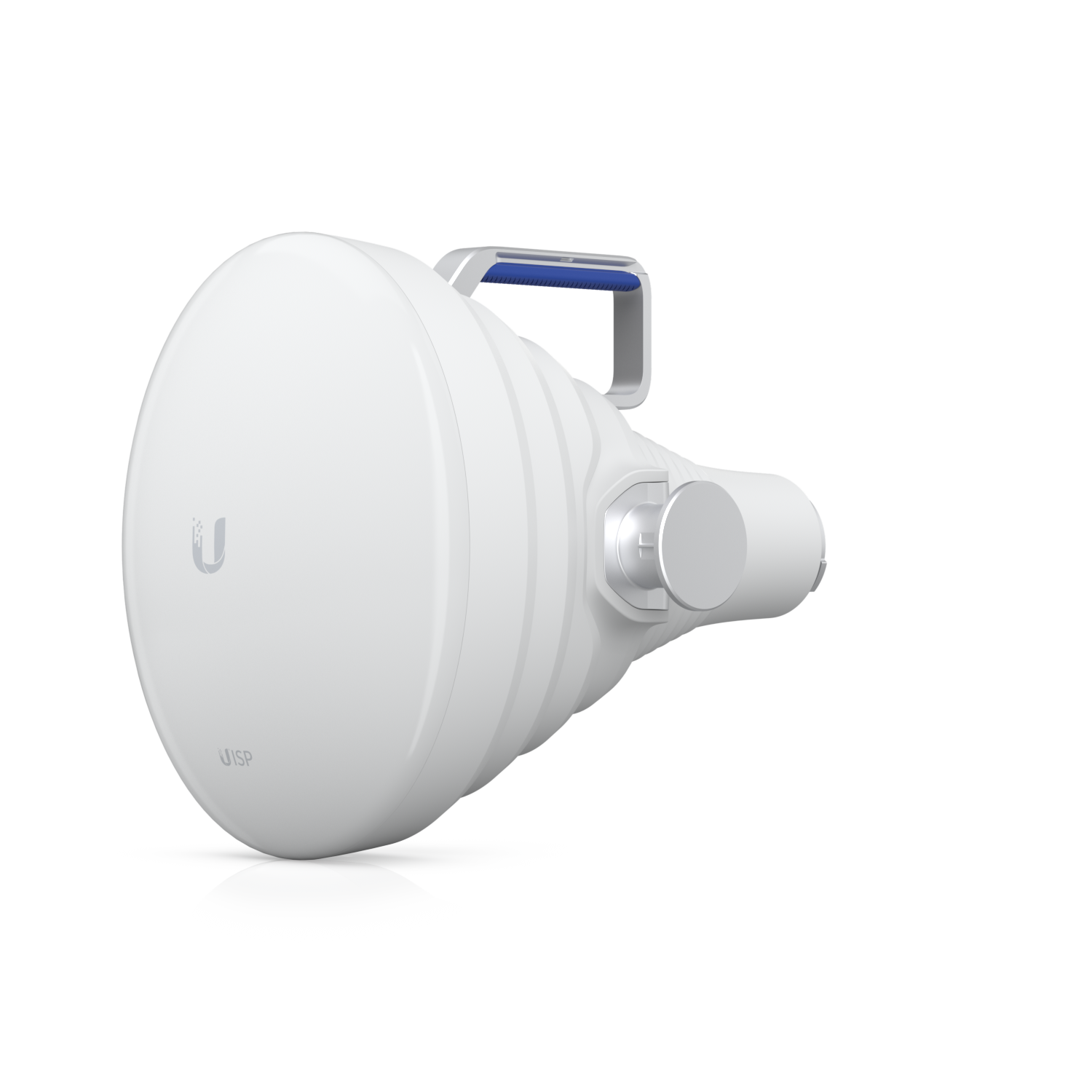

Ubiquiti UISP Horn
SKU:UISP-Horn
Description: High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 – 6.875 GHz).
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 – 6.875 GHz)
•15+ km PtMP link range
•Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing
•Pole-mountable antenna with a metal carrying handle
•Compatible with AF 5XHD, RP 5AC, LTU Rocket
Why Choose This?
The Ubiquiti UISP Horn is a high-isolation 30° horn antenna engineered for point-to-multipoint (PtMP) deployments in congested RF environments, delivering reliable 15+ km link range across a broad 5.15–6.875 GHz frequency spectrum. Its low backlobes and superior front-to-back ratio minimize interference, enabling efficient co-location of devices while providing 19.5 dBi gain for robust, long-distance connectivity. Built with a durable, UV-stabilized polycarbonate enclosure and IPX6 weatherproofing, it withstands harsh outdoor conditions up to 200 km/h winds, making it ideal for WISPs seeking scalable, high-performance PtMP solutions.
Key Features
- High-isolation 30° beamwidth – Reduces interference in dense deployments for cleaner PtMP links.
- Wide 5.15–6.875 GHz frequency range – Offers flexibility across global 5/6 GHz bands for future-proofing.
- 19.5 dBi gain with 15+ km PtMP range – Enables long-distance, high-throughput connections.
- Low backlobes and 45–50 dB F/B ratio – Supports device co-location without signal overlap.
- IPX6 weatherproof enclosure – Ensures reliability in extreme outdoor environments.
Full Specifications
| Category | Details |
|---|---|
| Model | UISP-Horn |
| Frequency Range | 5.15–6.875 GHz |
| Gain | 19.5 dBi |
| Beamwidth (Azimuth) | 30° (6 dB) |
| Beamwidth (Elevation) | 25° (6 dB) |
| Electrical Downtilt | 0° |
| Max. VSWR | 2:1 |
| F/B Ratio | Typical 45–50 dB, Minimum 40 dB |
| PtMP Link Range | 15+ km |
| Dimensions | 282 x 224 x 380 mm (11.1 x 8.8 x 15″) |
| Weight (Device) | 3.06 kg (6.75 lb) |
| Weight (Mount) | 925 g (2.04 lb) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Weatherproofing | IPX6 |
| Wind Survivability | 200 km/h (124 mph) |
| Wind Loading | 90 N at 200 km/h (20 lbf at 124 mph) |
| Mounting | Pole mount (Ø25–70 mm / Ø1–3″), Alignment mount included |
| Mechanical Adjustment | ±20° elevation, ±25° azimuth |
| NDAA Compliant | Yes |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What is the gain of the UISP Horn? 19.5 dBi, as confirmed in Ubiquiti firmware updates and reseller specs matching the 30° horn design.
- Q: Which radios is the UISP Horn compatible with? Compatible with RP-5AC-Gen2, LTU-Rocket, Wave-MLO5, and other 5GHz radios with RP-SMA connectors like Rocket Prism 5AC.
- Q: What is the maximum link range? Supports 15+ km PtMP links, depending on radio power, environment, and regulations.
- Q: Is it suitable for co-located deployments? Yes, low backlobes and high F/B ratio (45–50 dB typical) enable efficient device co-location in congested areas.
- Q: What weather conditions can it withstand? IPX6-rated with wind survivability up to 200 km/h (124 mph), ideal for outdoor pole mounting.
| Weight | 4 kg |
|---|---|
| Dimensions | 282 × 224 × 380 mm |
| Product Create Date | 18/08/2023 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | UISP-Horn |
| Opt Accessory | NHU-RP-5AC-GEN2, NHU-AF-5XHD, NHU-LTU-ROCKET |
