Ubiquiti UISP 5GHz RocketDish 30dBi With Rocket Kit Light Weight. 2×2 Dual-polarity Performance. Compatible With Rocket Prism 5AC
$190.40 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock

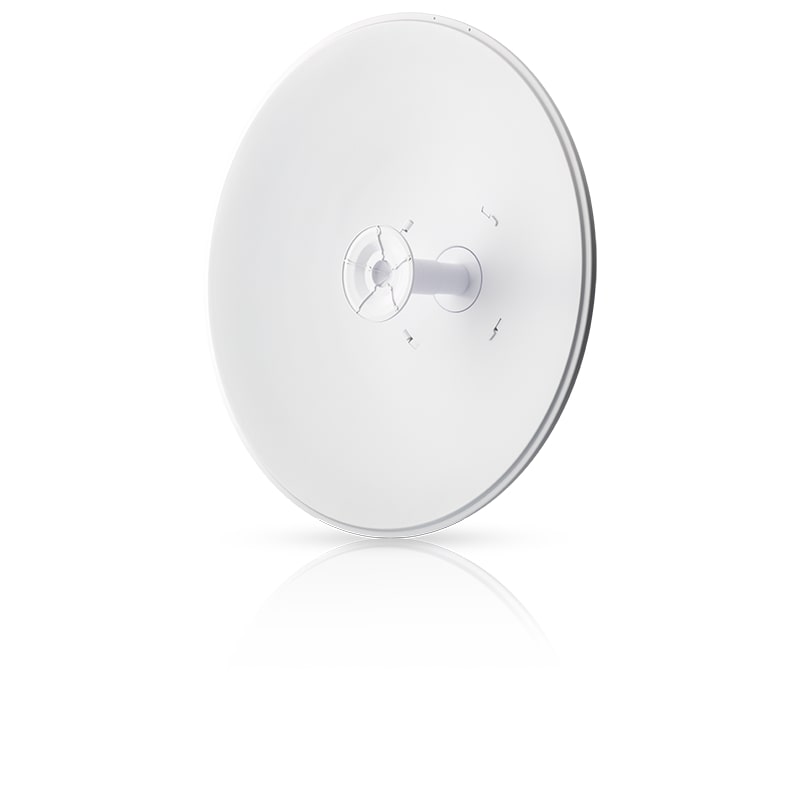

Ubiquiti 5GHz RocketDish 30dBi with rocket kit Light Weight
SKU: RD-5G30-LW
Tech Specs: Click Here
Description: 5 GHz, 30 dBi RocketDish LW antenna with extended depth of the dish reflector that rejects noise interference in co-location deployments.
Features:
•2×2 dual-polarity performance
•Robust mechanical design for outdoor application use
•Compatible with Rocket Prism 5AC
Why Choose This?
The Ubiquiti UISP 5GHz RocketDish 30dBi LW (RD-5G30-LW) is a high-performance, lightweight dish antenna designed for long-range point-to-point wireless bridges in the 5 GHz band. Delivering 30 dBi gain with 2×2 dual-polarity MIMO performance, it ensures superior signal focus and noise rejection through its extended dish depth, ideal for co-location deployments. Compatible with Rocket Prism 5AC radios, it offers plug-and-play integration, robust outdoor durability, and reduced weight for easier installation.
Key Features
- 30 dBi high gain – Provides exceptional long-range signal strength for reliable PtP links over several kilometers.
- Lightweight design at 7.4 kg – Reduces tower loading and simplifies handling and installation compared to standard models.
- Extended dish depth – Rejects noise interference effectively in co-located environments for cleaner performance.
- Built-in Rocket mount – Enables tool-free, seamless integration with compatible Rocket and Prism radios.
- Dual-linear polarization – Supports 2×2 MIMO for doubled throughput and improved link reliability.
Full Specifications
| Category | Details |
|---|---|
| Manufacturer | Ubiquiti |
| Part Number | RD-5G30-LW |
| Frequency Range | 5.1 – 5.9 GHz |
| Gain | 30 dBi |
| HPOL Beamwidth | 5.8° (3 dB) |
| VPOL Beamwidth | 5.8° (3 dB) |
| F/B Ratio | 30 dB |
| Max. VSWR | 1.6:1 |
| Cross-pol Isolation | 35 dB Min. |
| Polarization | Dual-Linear |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 650 x 650 x 386 mm (25.6 x 25.6 x 15.2″) |
| Weight | 7.4 kg (16.31 lb) (mount included, excludes radio) |
| Wind Loading | 790 N @ 200 km/h (178 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Mounting | Universal Pole Mount, Rocket Bracket, Weatherproof RF Connectors Included |
| NDAA Compliant | Yes |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What radios is the RD-5G30-LW compatible with? It is designed for seamless integration with Rocket and Rocket Prism 5AC radios via its built-in Rocket mount and weatherproof RF connectors.
- Q: What is the main advantage of the LW model over the standard RD-5G30? The LW version is lighter (7.4 kg vs 9.8 kg), has extended dish depth for better noise rejection, and easier pole/tower mounting while maintaining the same 30 dBi gain.
- Q: Is this antenna suitable for outdoor use? Yes, it features robust mechanical design with 200 km/h wind survivability and industrial-strength hardware for harsh outdoor environments.
- Q: Does it support 2×2 MIMO? Yes, with dual-linear polarization and cross-pol isolation of 35 dB min., it delivers 2×2 dual-polarity MIMO performance.
- Q: What is included in the package? Dish antenna, universal pole mount, Rocket bracket, and weatherproof RF jumpers/connectors; radio sold separately.
| Weight | 7.4 kg |
|---|---|
| Dimensions | 650 × 650 × 386 mm |
| Product Create Date | 25/04/2016 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | RD-5G30-LW |
Dropship Delivery Info
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
