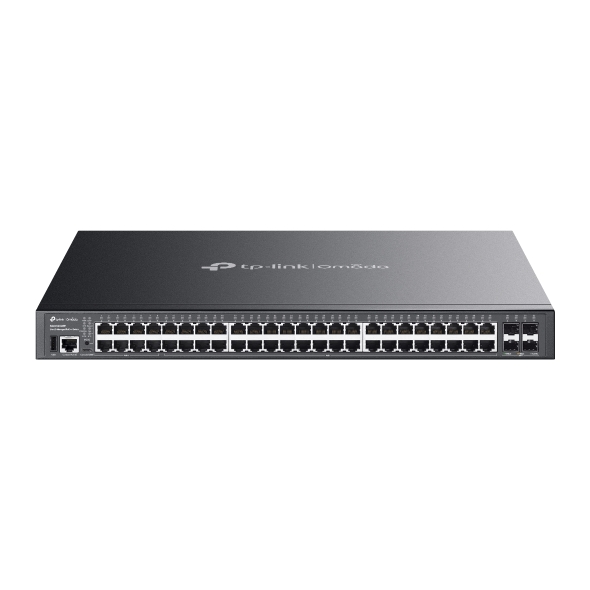

TP-Link SG5452XMPP Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots
$2,297.89 $2,228.95 inc GST
Manufacturer: TP-LINK
Availability: BRS:0 ADL:0 SYD:0 MEL:1 WA:0
1 in stock
TP-Link SG5452XMPP Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots
• 8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
• 40× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
• 4× 10 Gbps SFP+ slots
• Up to 770W total PoE budget*
• Fast PoE and Perpetual PoE
• Physical stacking up to 4 units for built-in redundancy and performance
• L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
• Security strategies: ACL, Port Security, DoS Defend, 802.1X
• ERPS supports rapid protection and recovery in a ring topology
• Centralised cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON
Warranty Period: 5-Year
Why Choose This?
The TP-Link SG5452XMPP Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch delivers high-performance networking for growing businesses with its massive 770W PoE budget, supporting power-hungry devices like Wi-Fi 7 APs and PTZ cameras across 48 Gigabit ports (8× PoE++ up to 90W, 40× PoE+ up to 30W). Featuring 4× 10G SFP+ slots for ultra-fast uplinks and physical stacking up to 4 units, it ensures scalable, redundant performance with Layer 3 routing like RIP, OSPF, and static routes. Centralized Omada SDN management simplifies deployment, while robust security and ERPS provide reliable, enterprise-grade protection.
Key Features
- 48 Gigabit PoE ports (8× PoE++ up to 90W, 40× PoE+) with 770W budget – Powers extensive IP surveillance and wireless deployments without additional injectors.
- 4× 10 Gbps SFP+ slots – Enables high-speed uplinks and fiber connectivity for bandwidth-intensive applications.
- Physical stacking up to 4 units (40 Gbps bandwidth) – Simplifies management and boosts redundancy in expanding networks.
- Layer 3 features (RIP, OSPF, static routing, DHCP Server/Relay) – Reduces latency by enabling inter-VLAN routing without external routers.
- Omada SDN centralized management with Zero-Touch Provisioning – Streamlines cloud-based deployment, monitoring, and batch configuration.
Full Specifications
| Category | Details |
|---|---|
| Interfaces | 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+), 4× 1/10 Gbps SFP+ Slots, 1× USB 2.0 Port, 1× RJ45 Console Port, 1× USB Type-C Console Port |
| PoE Standard | IEEE 802.3af/at/bt compliant; PoE++ Ports 1-8 (up to 90W), PoE+ Ports 9-48 (up to 30W); Total PoE Budget: 770W; Fast PoE, Perpetual PoE |
| Switching Capacity | 176 Gbps per unit |
| Packet Forwarding Rate | 130.94 Mpps |
| MAC Address Table | 16K entries |
| Packet Buffer | 12 Mbit |
| Jumbo Frame | 9 KB |
| Stacking | Up to 4 units; 10G SFP+ slots; Up to 40 Gbps (max 2 stacking ports); Compatible: SG5428X, SG5428XMPP, SG5452X, SG5452XMPP |
| Processor | Dual-Core ARM @1.2GHz CPU |
| DRAM / Flash | 2 GB DDR4 / 4 MB Nor + 512 MB NAND |
| Power Supply | 100-240 V~ 50/60 Hz |
| Max Power Consumption | 893.6 W (220V/50Hz with 770W PD @25°C); 942.7 W (110V/60Hz with 770W PD @25°C) |
| Fan Quantity | 3 (Left-to-right airflow) |
| Dimensions (W x D x H) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm); Rackmount |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| MTBF | 275,277 hours @25°C |
| Certifications | CE, FCC, RoHS, UL |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the total PoE power budget? Up to 770W, supporting 8× PoE++ ports (90W max each) and 40× PoE+ ports (30W max each); actual varies by environment and devices.
- Q: Does it support stacking? Yes, physical stacking up to 4 units using 10G SFP+ slots, with up to 40 Gbps bandwidth (max 2 ports).
- Q: What Layer 3 features are included? Static routing (IPv4/IPv6), RIP v1/v2/RIPng, OSPF v2/v3, DHCP Server/Relay, VRRP.
- Q: How is it managed? Centralized via Omada SDN controller (cloud/hardware/software) with ZTP; standalone via web GUI, CLI, SNMP, RMON.
- Q: What security features does it offer? ACL (IPv4/IPv6), 802.1X, Port Security, DoS Defend, Dynamic ARP Inspection, IP-MAC-Port Binding.
| Weight | 7.1 kg |
|---|---|
| Dimensions | 530 × 470 × 100 mm |
| Product Create Date | 30/04/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | SG5452XMPP |
