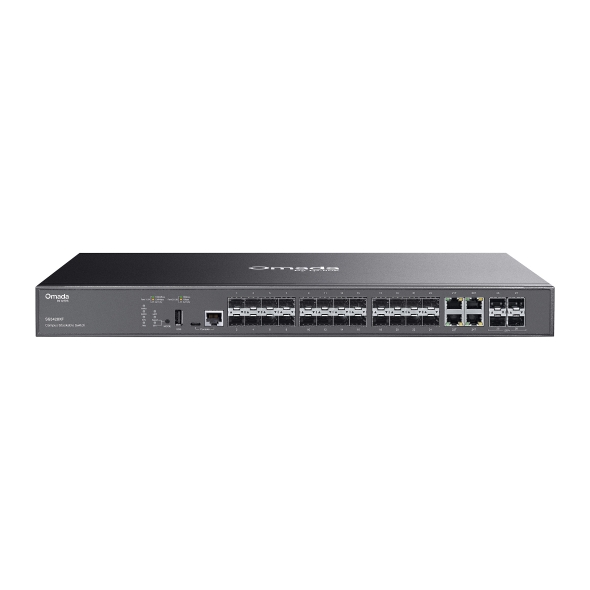

TP-Link SG5428XF Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots
$1,424.43 $1,381.70 inc GST
Manufacturer: TP-LINK
Availability: BRS:0 ADL:0 SYD:24 Jun MEL:0 WA:0
Out of stock
TP-Link SG5428XF Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots
• 20× Gigabit SFP slots and 4× Gigabit RJ45/SFP Combo ports
• 4× 10 Gbps SFP+ slots
• 128 Gbps switching capacity per unit
• Dual internal power supplies provide mutual backup
• Physical stacking up to 4 units for built-in redundancy and performance
• L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
• Security strategies: ACL, Port Security, DoS Defend, 802.1X
• ERPS supports rapid protection and recovery in a ring topology
• Centralized cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON
Warranty Period: 5-Year
Why Choose This?
The TP-Link SG5428XF Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch is designed for aggregation layer deployment in enterprise and campus networks, delivering high-speed 10G uplinks and robust L3 routing for seamless scalability. With physical stacking up to 4 units, dual internal power supplies for redundancy, and centralized Omada SDN management, it ensures reliable performance, enhanced security, and simplified operations for SMEs, surveillance, and ISPs.
Key Features
- 24 Gigabit SFP ports (20 SFP + 4 RJ45/SFP Combo) with 4×10G SFP+ slots – enables high-density fiber connectivity and ultra-fast uplinks for bandwidth-intensive applications.
- Physical stacking up to 4 units (80 Gbps bandwidth) – provides redundancy, simplified management, and scalable performance across compatible Omada models.
- Layer 3 routing (RIP, OSPF, VRRP, Static Routing, DHCP Server/Relay) – supports efficient IP routing and network segmentation without external routers.
- Advanced security (ACL, 802.1X, DoS Defend, Port Security) – protects against threats and ensures secure access in enterprise environments.
- Omada SDN integration with Zero-Touch Provisioning – offers cloud-based centralized management, intuitive monitoring, and easy deployment.
Full Specifications
| Category | Details |
|---|---|
| Model | SG5428XF |
| Interfaces | 20× 100/1000 Mbps SFP Slots, 4× Gigabit RJ45/SFP Combo Ports, 4× 1/10 Gbps SFP+ Slots*, 1× RJ45 Console, 1× USB Type-C Console, 1× USB 2.0 |
| *Note | Only one 10G RJ45 SFP+ module (SM5310-T) can be inserted at a time |
| Processor | Dual-Core ARM @1.2GHz CPU |
| DRAM / Flash | 2 GB DDR4 / 4 MB Nor + 512 MB NAND |
| Switching Capacity | 128 Gbps per unit |
| Forwarding Bandwidth | 64 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K entries |
| Packet Buffer | 12 Mbit |
| Jumbo Frame | 9 KB |
| Stacking | Max 4 units; 10G SFP+ ports; Up to 80 Gbps bandwidth; Compatible: SG5428XF, SG5428X, SG5428XMPP, SG5452X, SG5452XMPP |
| L3 Features | Static Routing (IPv4:512, IPv6:128), RIP v1/v2, OSPF v2/v3, VRRP v2/v3, DHCP Server (64 pools, 8000 leases), DHCP Relay |
| Power Supply | 100-240 V~ 50/60 Hz; Dual internal fixed supplies with mutual backup |
| Max Power Consumption | 28.3 W (220V/50Hz @25°C); 28.98 W (110V/60Hz @25°C) |
| Fan Quantity | 1 |
| Dimensions (W×D×H) | 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 in) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Certifications | CE, FCC, RoHS |
| Management | Omada SDN, Web GUI, CLI, SNMP v1/v2c/v3, RMON, Zero-Touch Provisioning, LLDP |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the maximum stacking capacity? Up to 4 units with 80 Gbps stacking bandwidth using 10G SFP+ ports; compatible with SG5428XF, SG5428X, SG5428XMPP, SG5452X, SG5452XMPP.
- Q: Does it support Layer 3 routing? Yes, includes Static Routing, RIP v1/v2, OSPF v2/v3, VRRP v2/v3, and DHCP Server/Relay for up to 512 IPv4 routes.
- Q: How is it managed? Centralized via Omada SDN controllers (cloud, hardware, software) with Zero-Touch Provisioning; standalone via web GUI, CLI, SNMP, RMON.
- Q: What security features are available? ACL (IPv4/IPv6), Port Security, 802.1X authentication, DoS Defend, Dynamic ARP Inspection, IP-MAC-Port Binding.
- Q: What are the power and environmental specs? Dual internal PSUs, max 28.98W consumption, 1 fan, operating -5°C to 45°C, rackmount 1U design.
| Weight | 4.31 kg |
|---|---|
| Dimensions | 530 × 370 × 100 mm |
| Product Create Date | 17/09/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | SG5428XF |
Dropship Delivery Info
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
