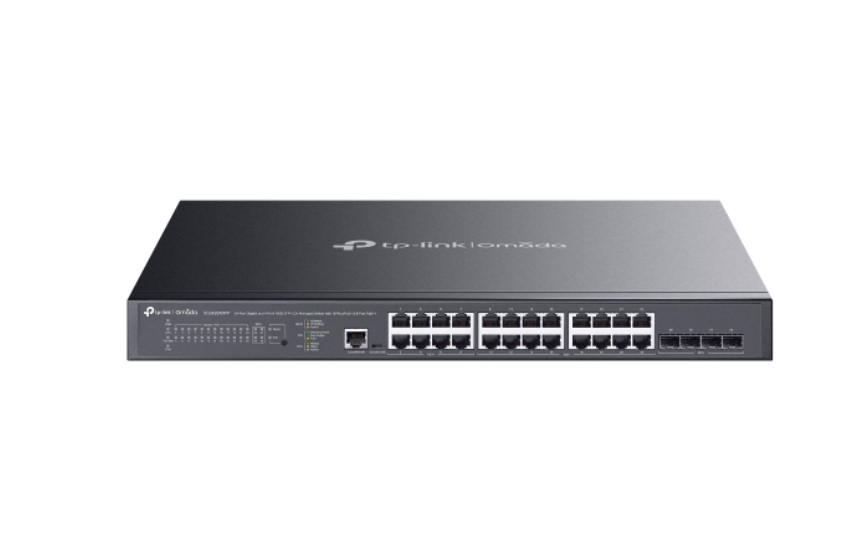

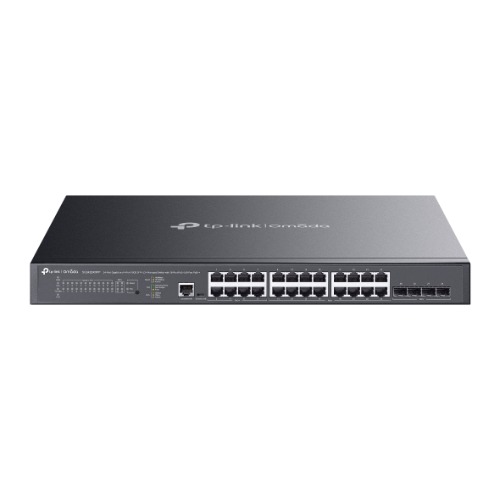

TP-Link SG3428XMPP Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ 8-Port PoE++
$1,238.79 $1,201.63 inc GST
Manufacturer: TP-LINK
Availability: BRS:0 ADL:0 SYD:1 MEL:2 WA:0
3 in stock
TP-Link SG3428XMPP Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ 8-Port PoE++
• 4× 10 Gbps SFP+ slots
• 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
• 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
• 500 W total PoE budget*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design
Warranty Period: 5-Year
Why Choose This?
The TP-Link SG3428XMPP Omada switch delivers high-performance networking with 24 Gigabit ports—including 8 PoE++ (up to 90W each) and 16 PoE+ (up to 30W)—plus 4×10G SFP+ uplinks for seamless 10G connectivity and a robust 500W PoE budget to power demanding devices like Wi-Fi 6/7 APs, PTZ cameras, and VoIP phones.
Integrated into the Omada SDN platform, it offers centralized cloud management, L2+ features like static routing, ERPS for ring protection, and advanced security, making it ideal for scalable business networks in surveillance, offices, or high-density environments.
Key Features
- 24 Gigabit RJ45 ports (8× PoE++ up to 90W, 16× PoE+ up to 30W) with 500W budget – Powers high-wattage devices without additional injectors
- 4× 10G SFP+ slots – Enables lightning-fast uplinks for multi-gigabit backbones and non-blocking 128 Gbps switching
- Omada SDN integration – Centralized cloud/app management with zero-touch provisioning for easy deployment and monitoring
- Layer 2+ features (Static Routing, ERPS, ACL, QoS) – Enhances efficiency, security, and redundancy in ring topologies
- Rack-mountable metal design with 3 fans – Ensures durability, reliable cooling, and 1U space efficiency
Full Specifications
| Category | Details |
|---|---|
| Model | SG3428XMPP |
| Interfaces | 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+), 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| PoE Standard | 802.3af/at/bt compliant |
| PoE Ports | Ports 1-8: PoE++ (up to 90W per port); Ports 9-24: PoE+ (up to 30W per port) |
| PoE Power Budget | 500 W |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K entries |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| Flash | 32 MB |
| DRAM | 256 MB |
| Fan Quantity | 3 |
| Dimensions (W x D x H) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Mounting | Rack Mountable |
| Power Supply | 100-240 V AC ~ 50/60 Hz |
| Max Power Consumption | 605.5 W (with 500W PoE load) |
| Operating Temperature | 0–40°C (32–104°F) |
| Certifications | CE, FCC, RoHS |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: What is the total PoE power budget? 500 W, with up to 90 W per PoE++ port (ports 1-8) and 30 W per PoE+ port (ports 9-24); actual output varies by environment and devices.
- Q: Does it support Omada SDN cloud management? Yes, via Omada Hardware Controller, Software Controller, or Cloud-Based Controller for centralized management, zero-touch provisioning, and app access.
- Q: What Layer 2+ features are included? Static routing (48 IPv4/IPv6 routes), 802.1Q VLAN (4K groups), IGMP/MLD Snooping, QoS (8 queues), ACL, ERPS, and STP/RSTP/MSTP.
- Q: Is it compatible with 10G SFP+ modules? Yes, supports 4×10G SFP+ slots compatible with TP-Link modules like SM5110-SR/LR; DDM for monitoring.
- Q: What management options are available in standalone mode? Web GUI, CLI (console/Telnet/SSH), SNMP v1/v2c/v3, RMON, LLDP, and cable diagnostics.
| Weight | 6.3 kg |
|---|---|
| Dimensions | 528 × 470 × 100 mm |
| Product Create Date | 12/06/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 60 |
| Manufacturer SKU | SG3428XMPP |
Dropship Delivery Info
This product is DROPSHIPED from Brisbane | Adelaide| Sydney| Perth| Melbourne via Star Track, Aus Post and local couriers.
