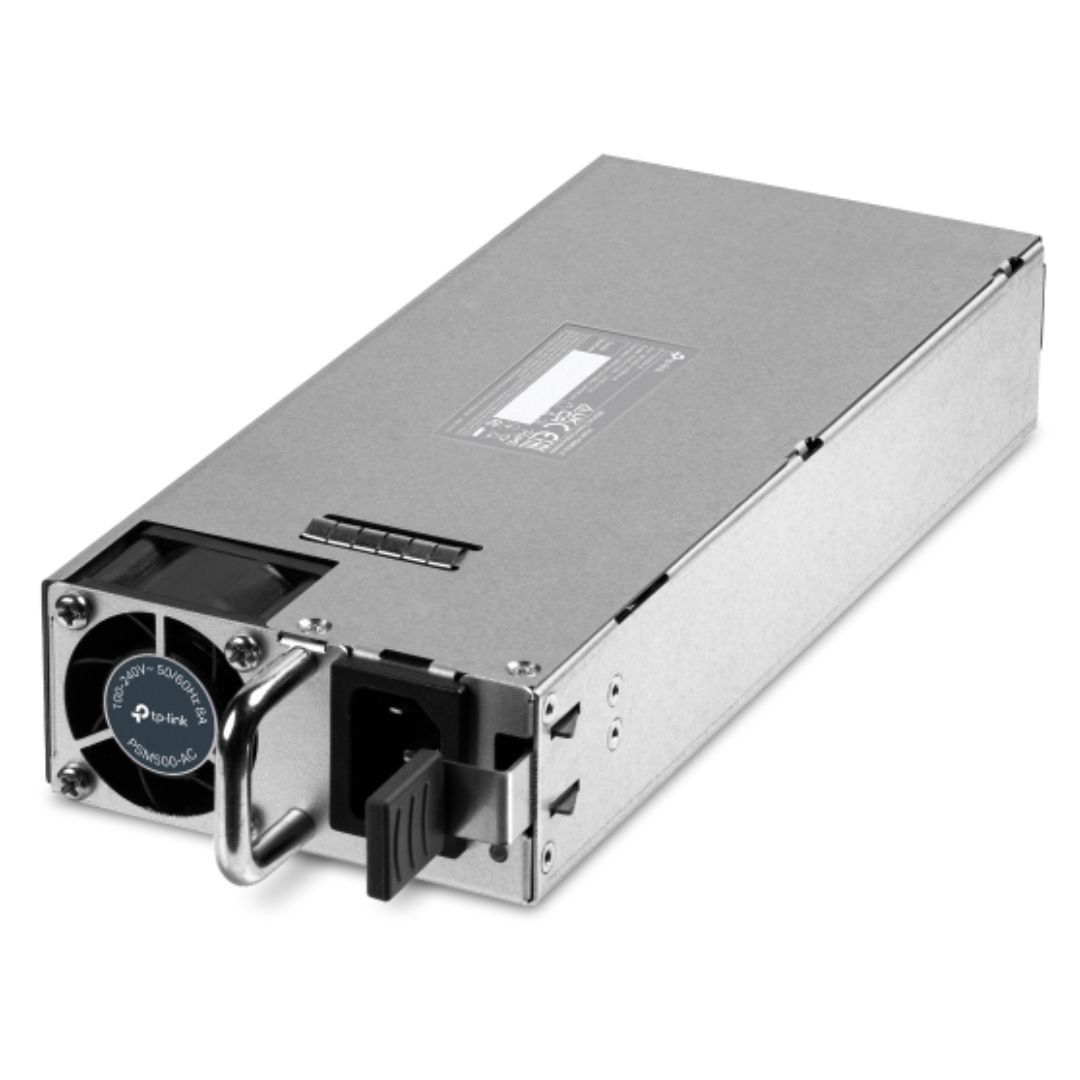

TP-Link PSM500-AC AC Power Supply Module , Hot swappable power supply module, 100 V–240 V~ 50/60 Hz input, 53.5 VDC output, Suitable for L3 PoE switch
$515.27 $499.81 inc GST
Manufacturer: TP-LINK
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock
TP-Link PSM900-AC AC Power Supply Module
• Up to 500 (PSM500-AC) watts output power
• Hot swappable
• 53.5 V DC output voltage
• Output over-voltage/under-voltage/short circuit/over-current protection
• Suitable for SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y
Why Choose This?
The TP-Link PSM500-AC is a high-performance 500W AC power supply module designed for reliable power delivery in demanding enterprise networks. Its fully hot-swappable design ensures zero downtime during maintenance, while delivering stable 53.5V DC output with comprehensive protections against surges, overvoltage, and short circuits. Ideal for L3 managed PoE switches, it provides redundancy and boosts PoE budgets up to 720W with dual modules, making it essential for high-power applications like IP surveillance and VoIP deployments.
Key Features
- 500W max output power – Supports high PoE demands for powering numerous devices without performance drops.
- Hot-swappable design – Allows replacement without interrupting network operations, ensuring maximum uptime.
- 53.5V DC output at 9.35A – Provides stable voltage tailored for TP-Link L3 PoE switches.
- Comprehensive protections – Guards against over-voltage, under-voltage, short circuit, over-current, and ±6kV surges for enhanced reliability.
- Universal AC input (100-240V) – Compatible worldwide with flexible 50/60Hz operation.
Full Specifications
| Category | Details |
|---|---|
| Model | PSM500-AC |
| Power Input | 100-240V~ 50/60Hz 8A (100-120V~ 50/60Hz 12A; 120-240V~ 50/60Hz 10A) |
| Output Voltage | 53.5 V DC |
| Output Current | 9.35 A (Maximum) |
| Maximum Output Power | 500 W |
| Hot-Swappable | Yes |
| Surge Protection | ±6 kV |
| Protections | Output over-voltage, under-voltage, short circuit, over-current protection |
| Dimensions (W x D x H) | 259.5 × 95.8 × 40.1 mm (10.2 × 3.8 × 1.6 in) |
| Operating Temperature | 0°C–45°C (32°F–113°F) |
| Storage Temperature | -40°C–70°C (-40°F–158°F) |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Humidity | 5%–90% RH, non-condensing |
| Operating Altitude | Sea level to 3000 m |
| Compatible Switches | SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y |
Official Resources: Tech Specs | Datasheet
Frequently Asked Questions
- Q: Is the PSM500-AC hot-swappable? Yes, it is fully hot-swappable, allowing installation or replacement without system interruption.
- Q: What switches is it compatible with? Compatible with TP-Link L3 PoE switches like SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.
- Q: What does the LED indicate? Green On: supplying power; Green Flashing: on but not supplying; Yellow Flashing: supplying with alarms (e.g., high temp); Red On: faulty or off.
- Q: Does it support worldwide voltage? Yes, universal input of 100-240V~ 50/60Hz, with adjusted current ratings for different voltage ranges.
- Q: What protections are included? Features output over-voltage/under-voltage, short circuit, over-current protection, and ±6 kV surge protection.
| Weight | 1.73 kg |
|---|---|
| Dimensions | 250 × 400 × 80 mm |
| Product Create Date | 01/08/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | TP-LINK |
| Warranty | 36 |
| Manufacturer SKU | PSM500-AC |
