TP-Link EAP615GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, AC Power, 4×Internal Antennas, MU-M

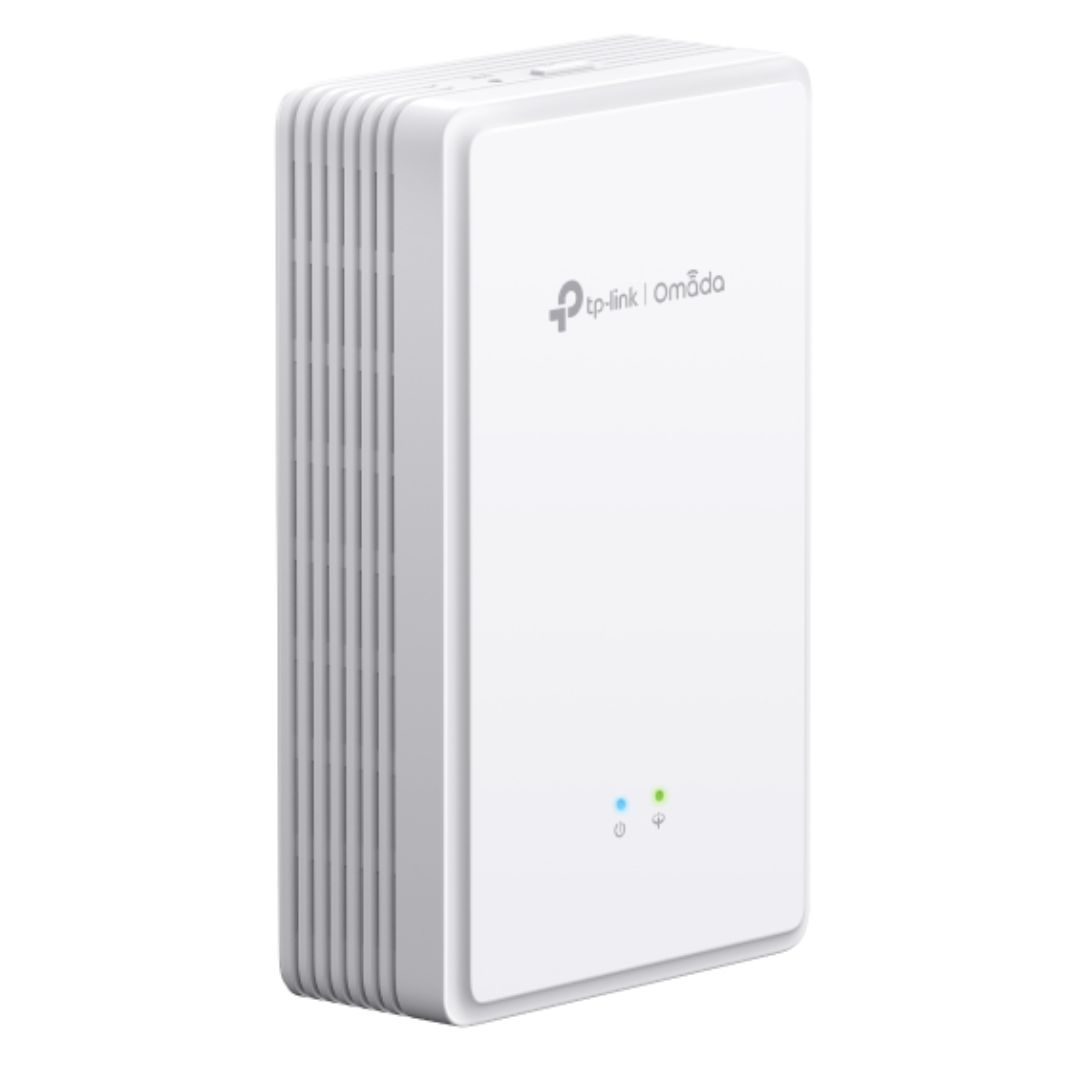

TP-Link EAP615GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point
• Seamless 1.8 Gbps Wi-Fi 6 Speeds: 1201 Mbps on 5 GHz 574 Mbps on 2.4 GHz†
• 1× GPON Port for High-Speed and Ultra-Range Access
• Ultra-Broadband Wi-Fi 6: MU-MIMO, Seamless Roaming§
• One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
• Easy Use: One-Click Pairing and Automatic Adoption
• Smart OM: PPSK△ and Multiple Portals§
• Centralised Management: Integrates with the Unified Optical Solution
• Wall-Mounted, AC Powered

Warranty Period: 5-Year

Why Choose This?

The TP-Link EAP615GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point delivers seamless 1.8 Gbps speeds (1201 Mbps at 5 GHz + 574 Mbps at 2.4 GHz) over a single fiber connection, supporting wired, wireless, VoIP, data, and HD video services ideal for hotels and MDUs.

With integrated GPON for ultra-range access up to 20 km, 2× Gigabit Ethernet ports, an FXS port for voice, and advanced Wi-Fi 6 features like MU-MIMO, OFDMA, and seamless roaming, it simplifies deployments while ensuring high-density performance for 100+ clients.

Key Features

• AX1800 Wi-Fi 6 – Provides 1.8 Gbps total speed with MU-MIMO and OFDMA for efficient high-density connectivity and lower latency.
• GPON Port (SC/APC) – Enables gigabit upstream/downstream over single-mode fiber up to 20 km, perfect for FTTH/FTTR.
• FXS VoIP Port – Supports multiple accounts and call features, surpassing traditional landlines for hospitality use.
• Omada SDN Integration – Centralized cloud management, zero-touch provisioning, mesh, and seamless 802.11k/v/r roaming.
• Wall-Mount Design – Slim profile with AC power and included kit for discreet, easy installation in rooms.

Full Specifications

Official Resources: Tech Specs | Datasheet

Frequently Asked Questions

• Q: Does it require PoE or use AC power? It uses AC power (100-240V), no PoE required, simplifying installations without injectors.
• Q: What is the GPON LED flashing green mean? Flashing green indicates the device is trying to register with the OLT; solid green means successfully registered.
• Q: How do I reset to factory defaults? Press and hold the reset button for 5 seconds while powered on until the LED flashes, then release.
• Q: Is seamless roaming supported? Yes, with 802.11k/v/r when managed by Omada SDN controller for uninterrupted client handoffs.
• Q: What management options are available? Omada Software/Hardware/Cloud Controller, Omada App, standalone web UI, SNMP, SSH.
