Ubiquiti WaveFiber ONU, A GPON Optical Network Unit With A 2.5 GbE Port, Delivers 1.2 Gbps Uplink / 2.5 Gbps Downlink Speeds At Distances Up To 20
$107.10 inc GST
Manufacturer: Ubiquiti
Availability: BRS:0 ADL:0 SYD:0 MEL:0 WA:0
Out of stock

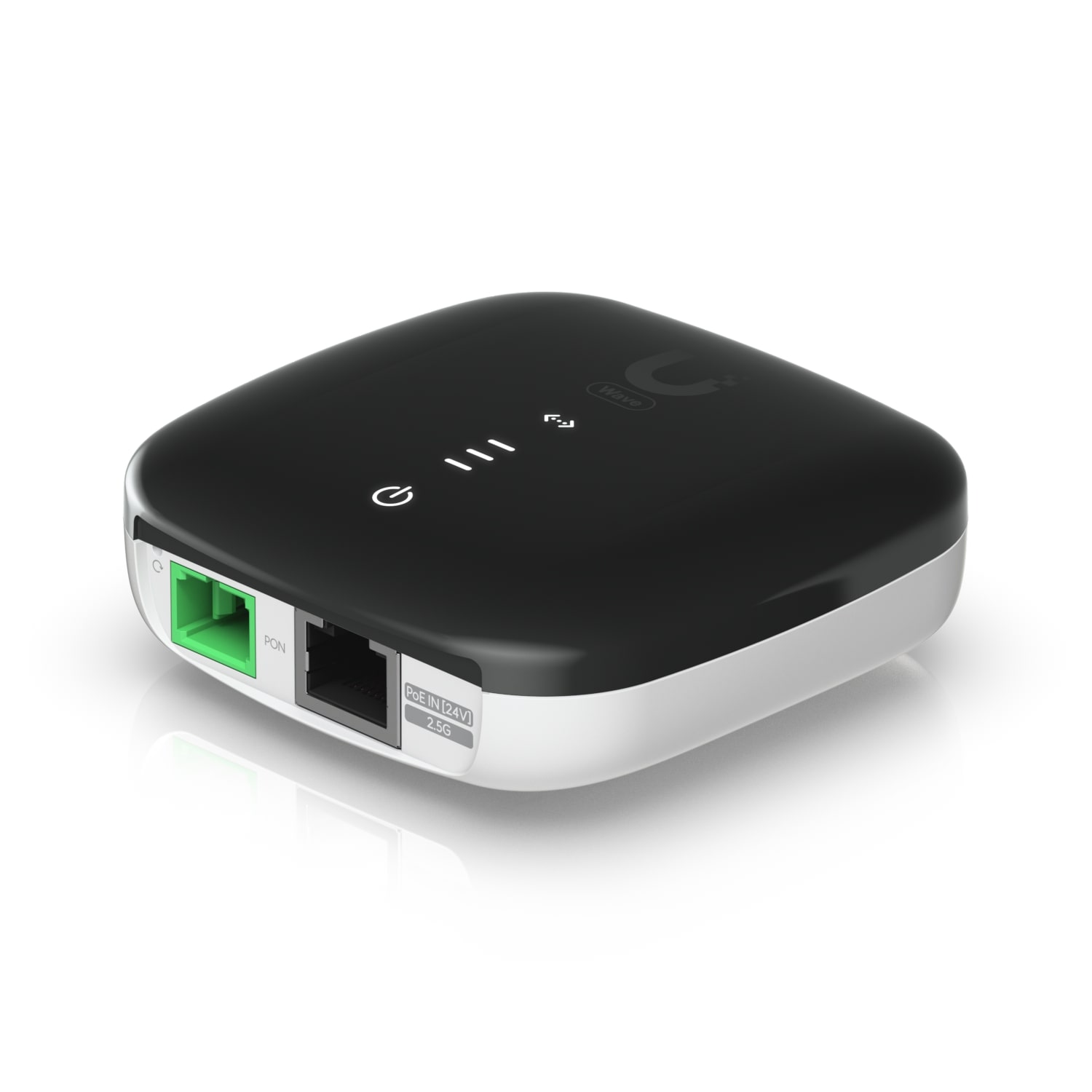

Ubiquiti WaveFiber ONU
SKU: Wave-Fiber-ONU
Tech Specs: Click Here
Installation Guide: Click Here
Description:
A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.
Features:
•(1) GPON port
•(1) GbE RJ45 LAN port and 24V PoE in
•Compatibility: UISP-FIBER-OLT-XGS, UF-OLT-4, UF-OLT
Why Choose This?
The Ubiquiti WaveFiber ONU is a compact GPON Optical Network Unit designed to deliver high-speed fiber connectivity to homes or businesses, providing up to 2.5 Gbps downlink and 1.2 Gbps uplink speeds over distances reaching 20 km. Its 2.5 GbE LAN port ensures multi-gigabit performance for demanding applications, while passive PoE powering and versatile mounting options make deployment simple and flexible. Ideal for ISPs and network admins seeking reliable, future-proof FTTH solutions.
Key Features
- GPON SC/APC WAN port – Supports ITU-G.984 standard for symmetric high-speed fiber access up to 20 km.
- 2.5 GbE RJ45 LAN port – Delivers up to 2.5 Gbps downstream and 1.2 Gbps upstream for multi-gigabit local connectivity.
- Compact polycarbonate enclosure – Weather-resistant design with desktop or wall mounting for easy installation.
- 24V Passive PoE powered – Simplifies cabling with 5W max consumption and 20-28V DC support.
- Advanced signal LEDs – Real-time PON status monitoring with 3-level signal strength indicators.
Full Specifications
| Category | Details |
|---|---|
| Model | WaveFiber ONU (Wave-Fiber-ONU) |

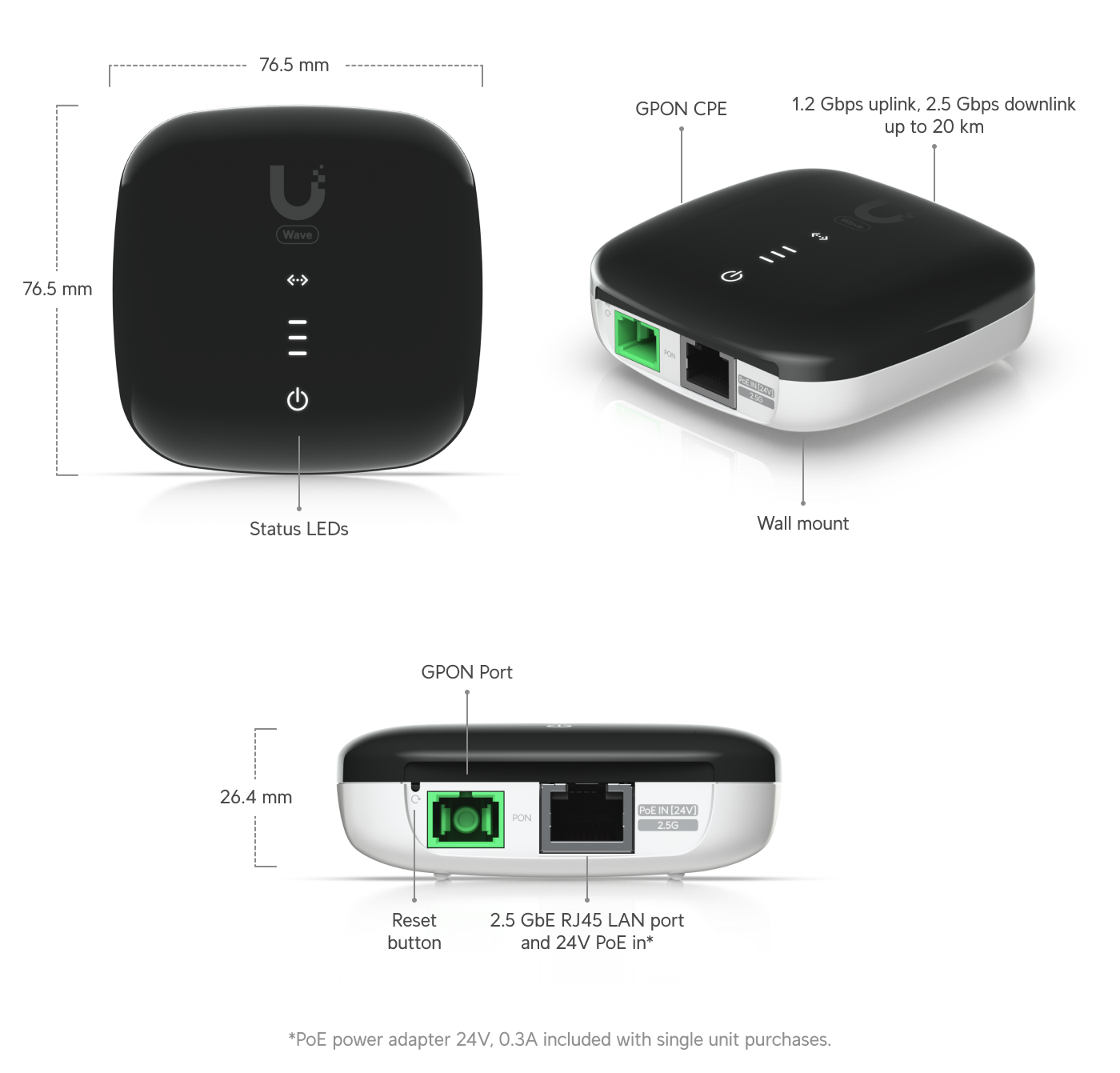

| Dimensions | 76.5 x 76.5 x 26.4 mm (3 x 3 x 1″) |
| Weight | 78 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Networking Interface (WAN) | (1) SC/APC, ITU-G.984 GPON port |
| Networking Interface (LAN) | (1) 1/2.5 GbE RJ45 port |
| Management Interface | Ethernet in-band PON |
| Power Method | PoE, 0.3A |
| Power Supply | 24V passive PoE 2-pair (4, 5+; 7, 😎 |
| Supported Voltage Range | 20–28V DC |
| Max. Power Consumption | 5W |
| Mounting | Desktop, wall |
| Button | (1) Factory reset |
| Total Non-Blocking Line Rate (Downstream) | 2.488 Gbps |
| Total Non-Blocking Line Rate (Upstream) | 1.244 Gbps |
| Optical Module Normal Range (TX) | 1.5 to 5 dBm |
| Optical Module Normal Range (RX) | -8 to -28 dBm |
| Operating Temperature | -15 to 45° C (5 to 113° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Fiber Operating Wavelength (TX) | 1310 nm |
| Fiber Operating Wavelength (RX) | 1490 nm |
| Fiber Line Code | Scrambled NRZ |
| Fiber Optical Bit Rate (Downstream) | 2488.32 Mbit/s |
| Fiber Optical Bit Rate (Upstream) | 1244.16 Mbit/s |
| Fiber Physical Reach | 20 km |
| Software Mode | ONU/ONT layer 2/3 Ethernet switch |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What speeds does the WaveFiber ONU support? Up to 2.488 Gbps downlink and 1.244 Gbps uplink via GPON, with a 2.5 GbE LAN port handling 1.2 Gbps uplink / 2.5 Gbps downlink.
- Q: What is the maximum fiber distance? Up to 20 km physical reach with normal optical power range TX 1.5-5 dBm, RX -8 to -28 dBm.
- Q: How is it powered? Via 24V passive PoE (2-pair: 4,5+; 7,8-), supporting 20-28V DC with max 5W consumption.
- Q: What mounting options are available? Desktop or wall mounting in its compact 76.5 x 76.5 x 26.4 mm polycarbonate enclosure.
- Q: Is it compatible with standard GPON OLTs? Yes, complies with ITU-G.984 GPON standard for broad OLT compatibility.
| Weight | 0.5 kg |
|---|---|
| Dimensions | 220 × 124 × 54 mm |
| Product Create Date | 15/05/2025 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | Wave-Fiber-ONU |
