Ubiquiti Wave Pico, Lightweight, Compact 60 GHz PtMP Station,Throughput 2 Gbps(1 Gbps duplex), Up 1.3km Range, Wave AP Micro 0.9m,WIFI6
$392.70 inc GST
Manufacturer: Ubiquiti
Availability: BRS:10 ADL:10 SYD:2 MEL:2 WA:6
30 in stock

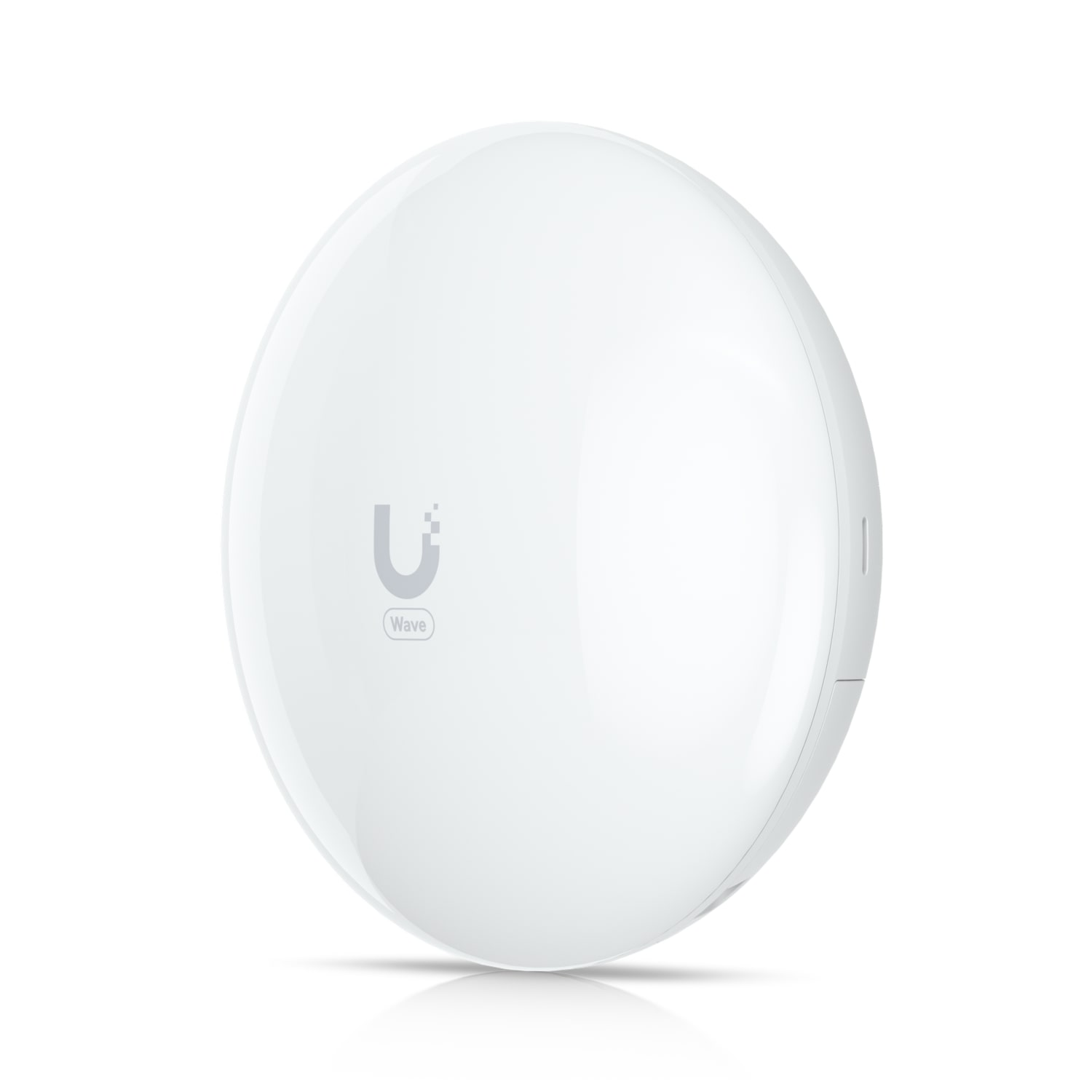

Ubiquiti Wave Pico
SKU: Wave-Pico
Tech Specs: Click Here
Installation Guide: Click Here
Features:
•Lightweight, compact 60 GHz PtMP station powered by Wave Technology.
•Max. link range:
— Wave AP: 1.3 km
— Wave AP Micro: 0.9 km
•Max. throughput: 2 Gbps (1 Gbps duplex)
•5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
•(1) GbE RJ45 port
•Integrated Bluetooth
Why Choose This?
The Ubiquiti Wave Pico is a lightweight, compact 60 GHz PtMP station powered by Wave Technology, delivering up to 2 Gbps total throughput (1 Gbps duplex) for high-speed wireless connectivity in point-to-point and point-to-multipoint setups. With a maximum range of 1.3 km when paired with Wave AP or 0.9 km with Wave AP Micro, and a reliable 5 GHz WiFi 6 backup radio, it ensures robust performance even in adverse weather conditions thanks to its IPX6 weatherproofing. Ideal for outdoor deployments, it offers easy management via UISP, advanced tools like Wave AI, and low power consumption for cost-effective, future-proof networking.
Key Features
- 60 GHz primary radio with 2 Gbps throughput – delivers gigabit speeds for bandwidth-intensive applications over long distances.
- WiFi 6 backup radio (802.11ax) – provides seamless failover with up to 800 Mbps on 5 GHz for uninterrupted connectivity.

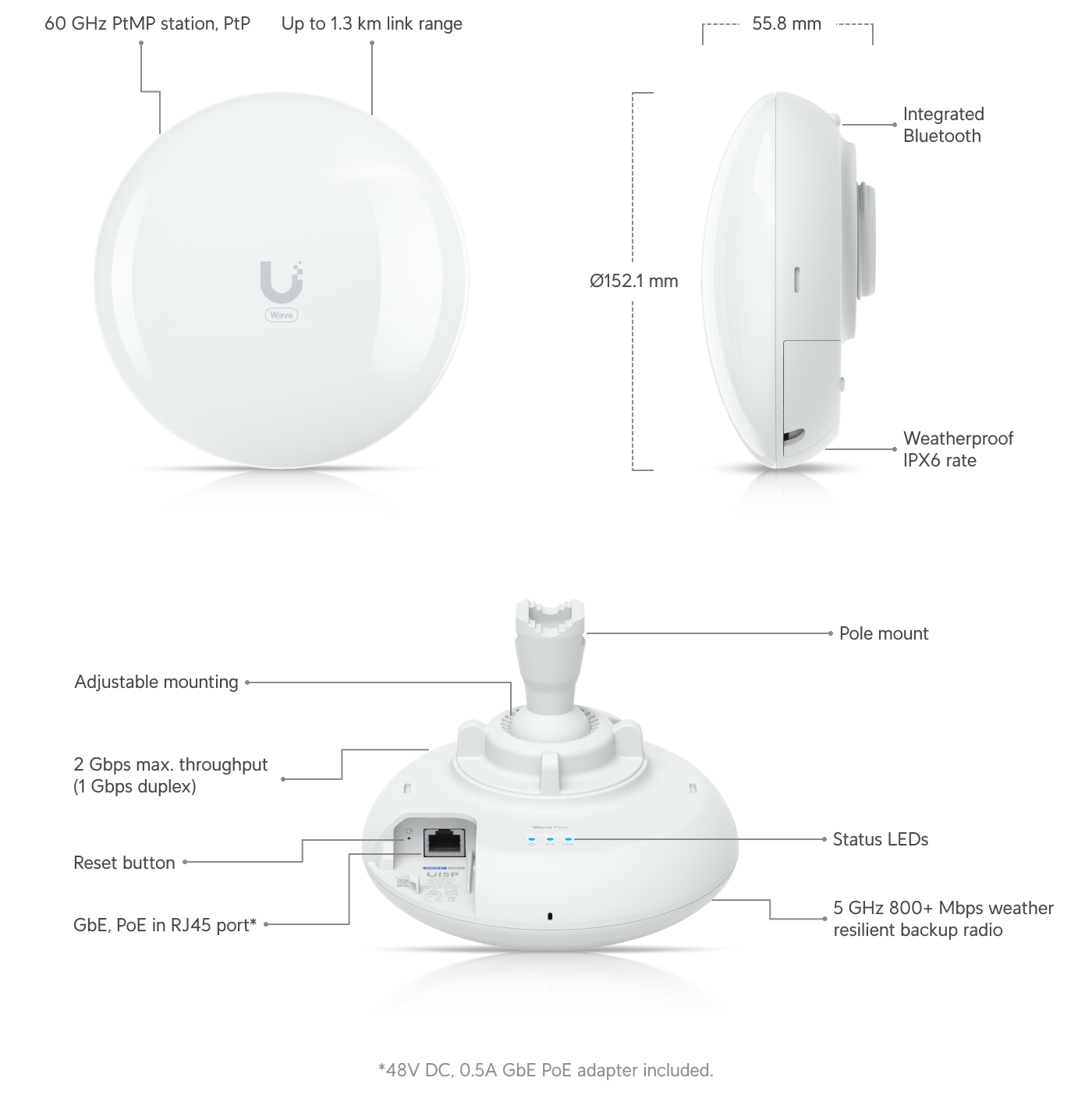

- Compact and lightweight design (⌀152.1 x 55.8 mm, 347 g) – easy to install on poles 20-53 mm diameter in harsh environments (IPX6, -40 to 60°C).
- Advanced management tools (Wave AI, antenna alignment, UISP integration) – simplifies deployment, monitoring, and optimization.
- NDAA compliant with WPA2-PSK encryption – ensures secure, regulatory-approved operation for enterprise and government use.
Full Specifications
| Category | Details |
|---|---|
| Dimensions | ⌀152.1 x 55.8 mm (⌀6 x 2.2″) |
| Weight | Without mount: 347 g (12.2 oz); With mount: 409 g (14.4 oz) |
| Enclosure Material | UV stabilized polycarbonate |
| Mounting | Pole Mount (20 to 53.1 mm / 0.8 to 2.1″ diameter) |
| Weatherproofing | IPX6 |
| Processor | Dual-core ARM Cortex-A53 at 1 GHz |
| Memory | 512 MB |
| Networking Interface | (1) GbE RJ45 port |
| Max. Power Consumption | 10W |
| Power Method | Passive PoE (4-pairs or 2-pairs for 44–54V DC) |
| Supported Voltage | 44–54V DC, 22–27V DC |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Total Throughput | 2 Gbps (1 Gbps duplex) |
| Max. Range (PtP) | Up to 1.5 km (1 mile) |
| Max. Range (PtMP) | 1.3 km (Wave AP), 0.9 km (Wave AP Micro/Gen2) |
| Primary Frequency | 57–71 GHz |
| Primary Antenna Gain | 27.7 dBi |
| Backup WiFi Standard | 802.11ax (WiFi 6) |
| Backup Frequency | 5180–5875 MHz (worldwide) |
Official Resources: Tech Specs | Installation Guide
Frequently Asked Questions
- Q: What is the maximum throughput of the Wave Pico? It delivers 2 Gbps total throughput (1 Gbps duplex) on the 60 GHz primary radio, with up to 800 Mbps on the 5 GHz backup.
- Q: What are the range capabilities? PtP up to 1.5 km; PtMP up to 1.3 km with Wave AP or 0.9 km with Wave AP Micro/Gen2, assuming clear line-of-sight.
- Q: Does it support WiFi 6? Yes, the 5 GHz backup radio uses 802.11ax (WiFi 6) for reliable failover connectivity.
- Q: What power options are available? Powered via Passive PoE (44–54V DC or 22–27V DC), includes 48V DC, 0.5A GbE PoE adapter; max consumption 10W.
- Q: Is it suitable for outdoor use? Yes, IPX6 weatherproof, -40 to 60°C operating temperature, UV-stabilized polycarbonate enclosure.
| Weight | 1.06 kg |
|---|---|
| Dimensions | 252 × 188 × 118 mm |
| Product Create Date | 21/02/2024 |
| Web Link | Visit Manufacturer Page → |
|---|---|
| Manufacturer | Ubiquiti |
| Warranty | 12 |
| Manufacturer SKU | Wave-Pico |
